MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : GLDR

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 49.681 degrees

Longitude: -126.127 degrees

Height: -9.355 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

NA

env

24 Hour Rapid Solutions

IGS14

env

NA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

NTKA

36.60 km

SHPB

38.35 km

MYRA

42.64 km

TAHB

45.97 km

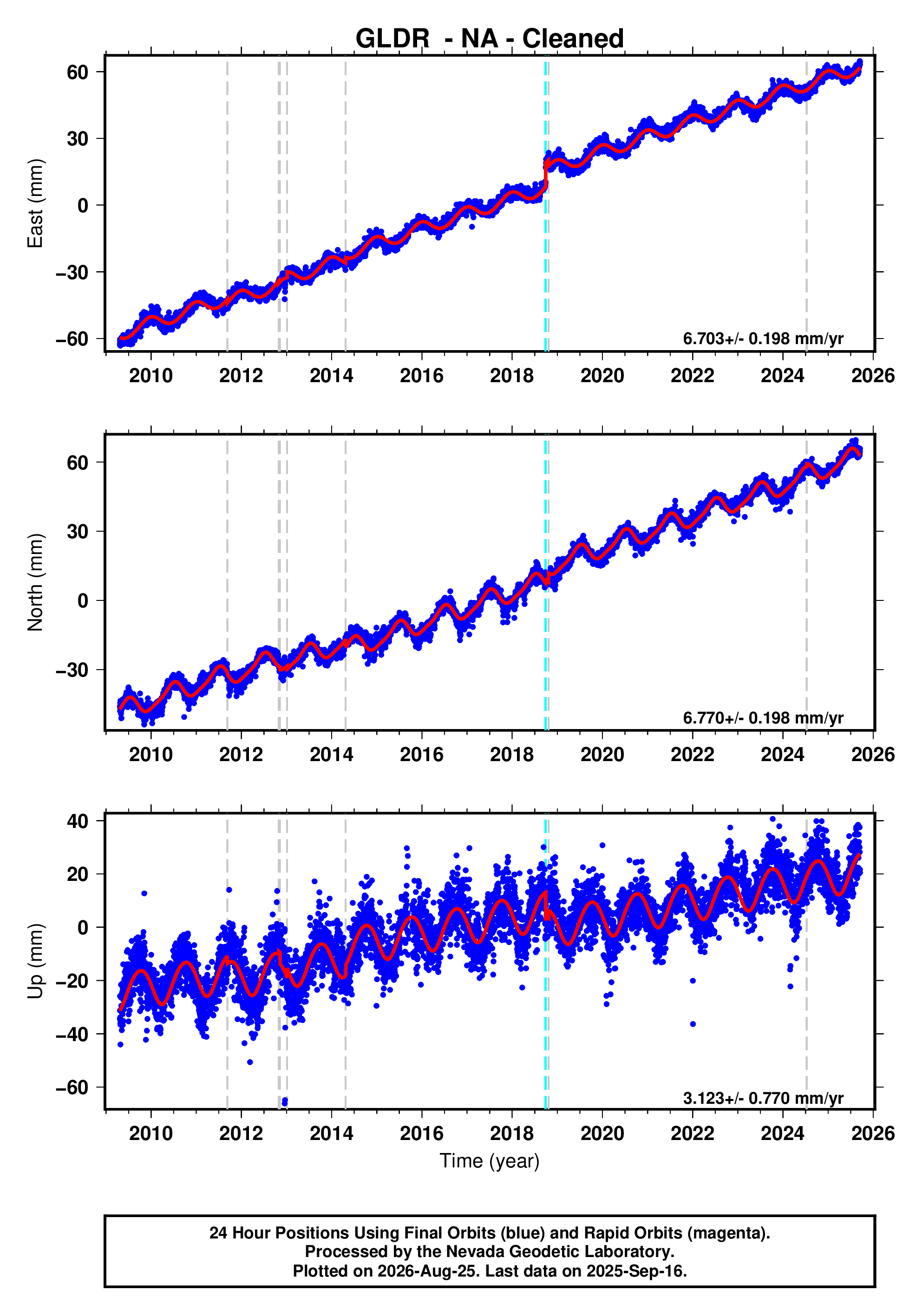

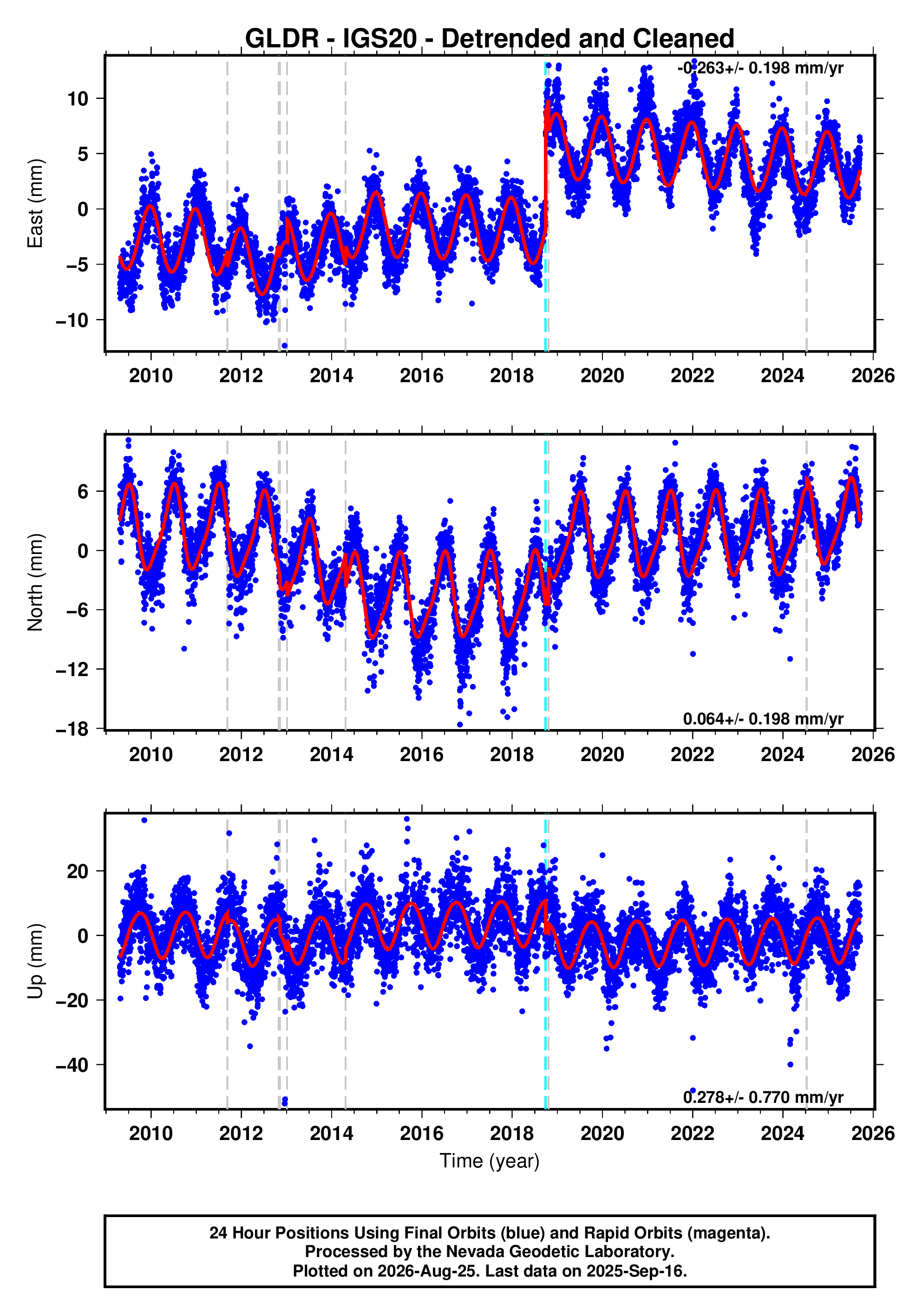

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

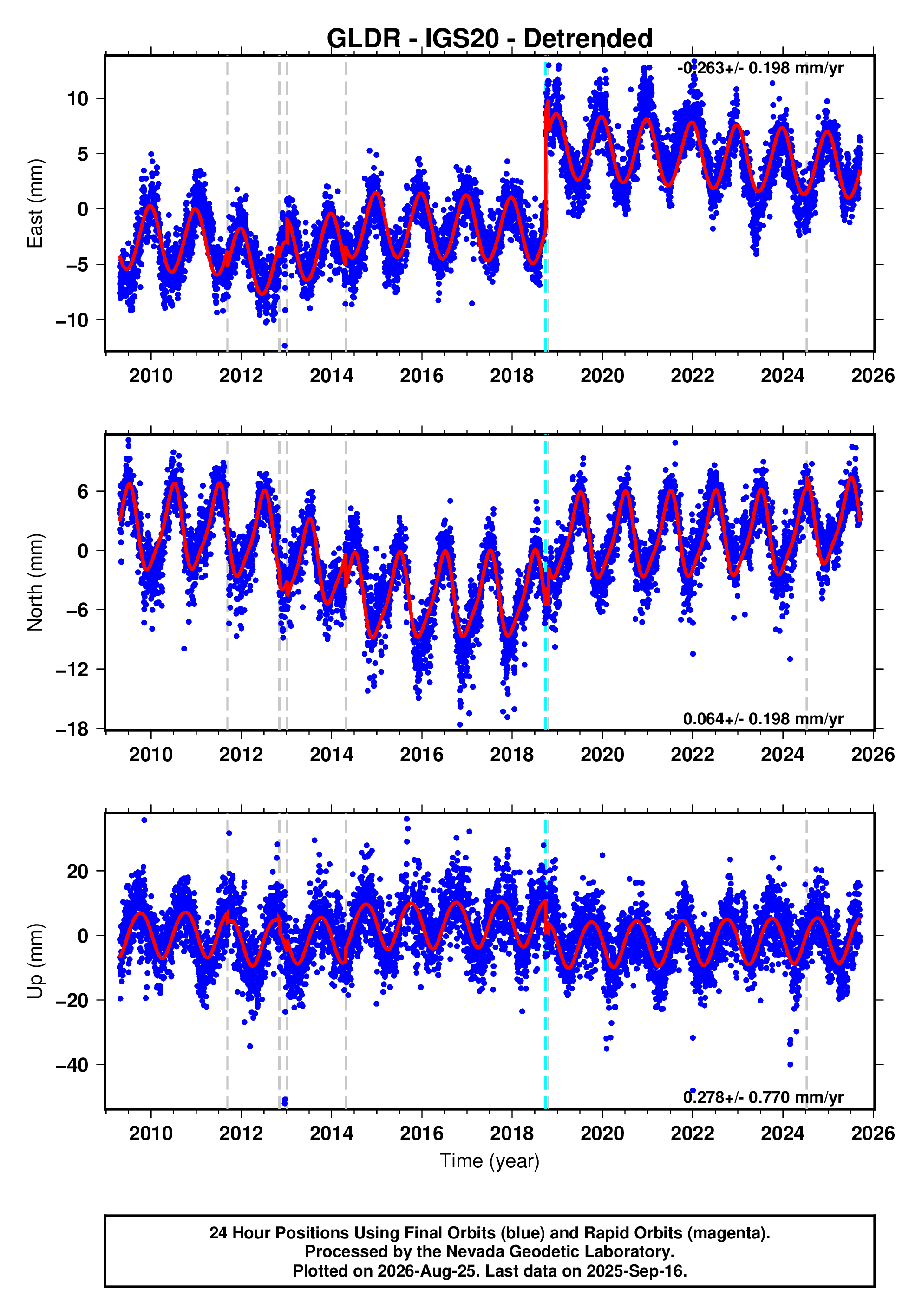

GPS time series plot

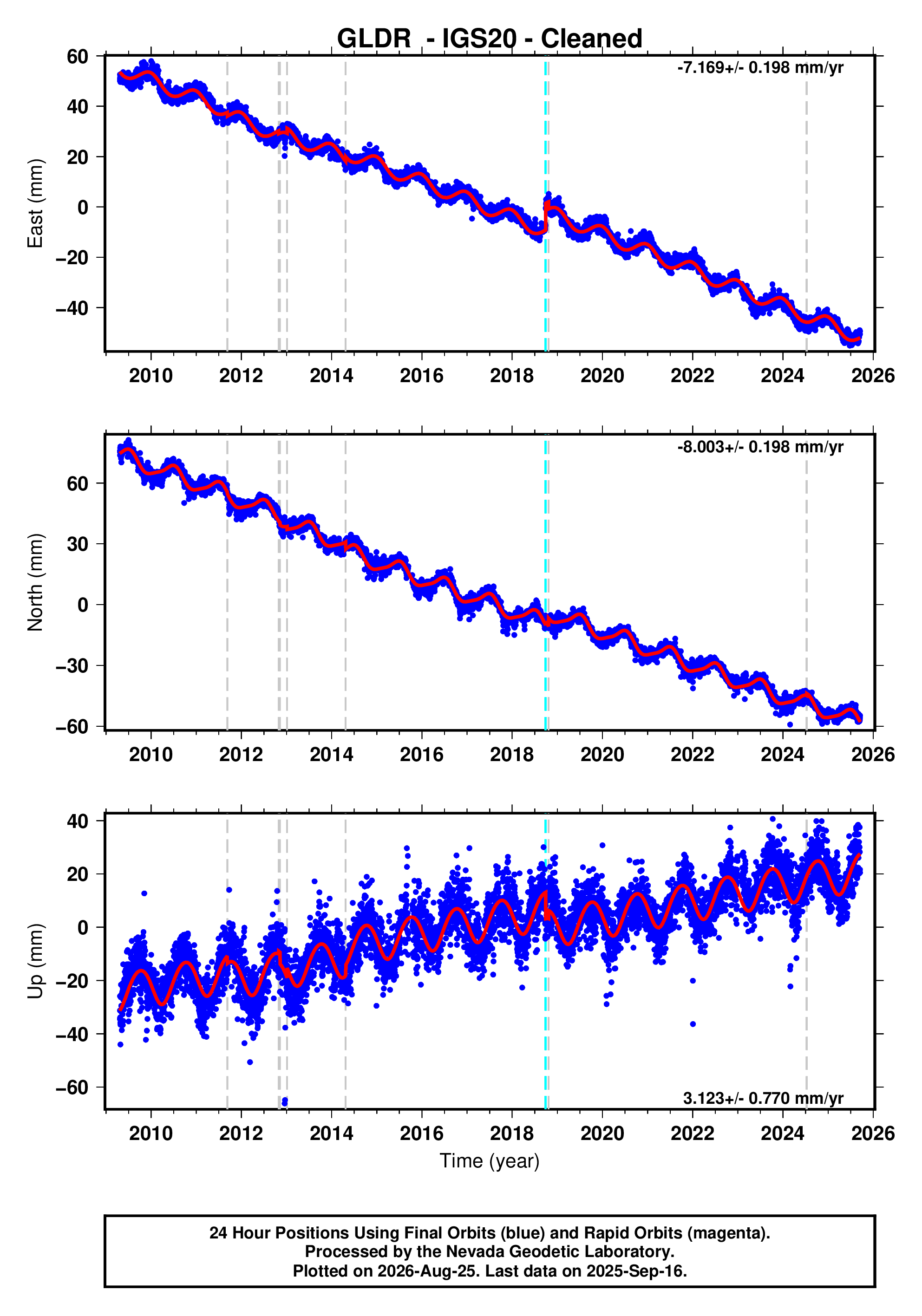

GPS time series plot

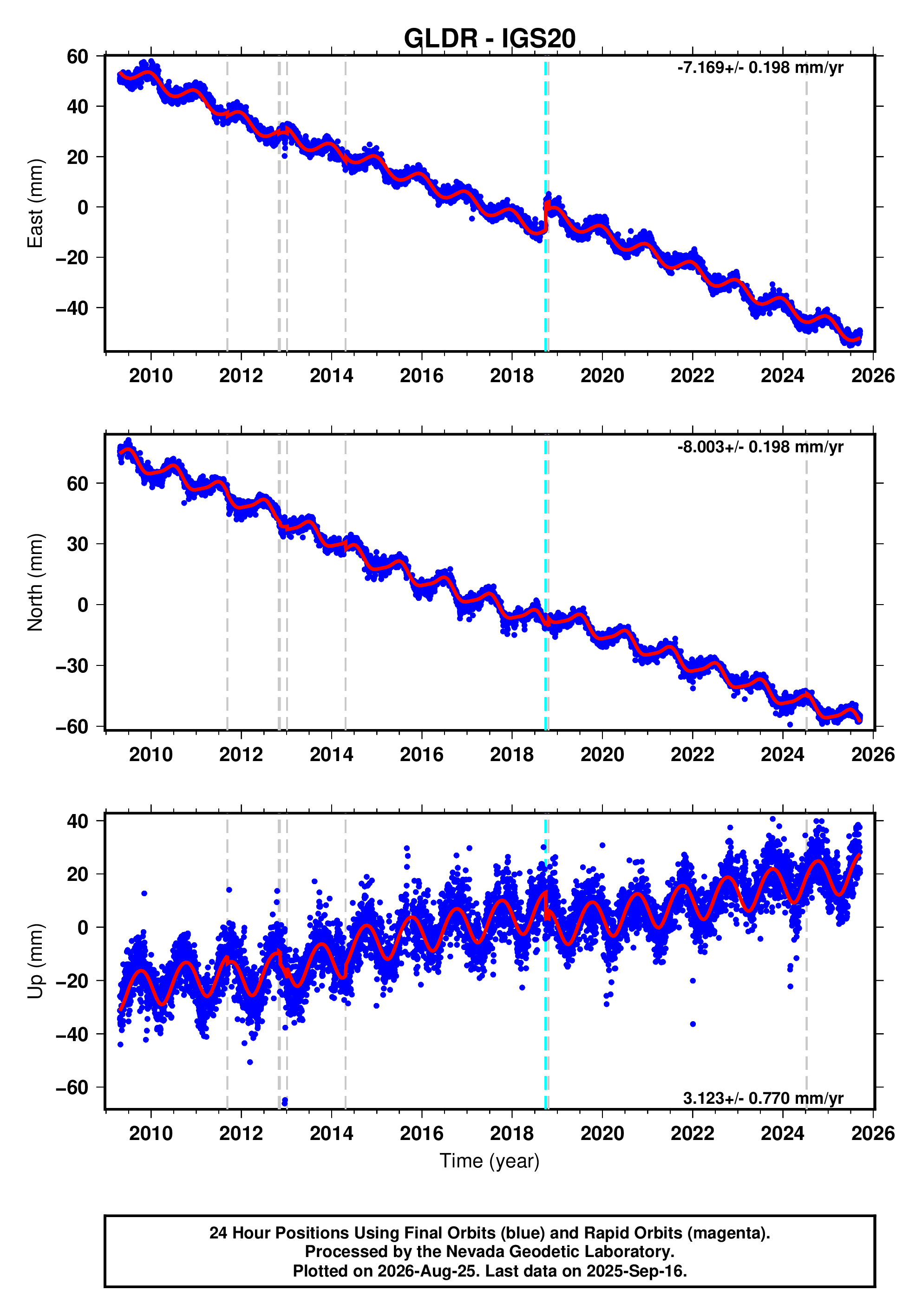

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
GLDR18SEP28 Antenna_and_Radome_Codes_Changed - -
GLDR18SEP28 Elevation_Cutoff_Changed - -
GLDR18SEP28 Receiver_Make_and_Model_Changed - -
GLDR18OCT25 Radome_Code_Changed - -
GLDR11SEP09 usp000j7ur 6.4 57.5
GLDR12OCT28 usp000juhz 7.8 540.3
GLDR12NOV08 usp000jv6k 6.1 177.1
GLDR13JAN05 ak0138esnzr 7.5 853.4
GLDR14APR24 usb000px6r 6.5 115.6
GLDR18OCT22 us1000hfgn 6.5 242.0
GLDR18OCT22 us1000hfgv 6.8 231.5
GLDR18OCT22 us1000hfh3 6.5 263.2
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
