MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : G174

Network Operator's Station ID : 1174

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 40.575 degrees

Longitude: 140.295 degrees

Height: 166.466 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

OK

tenv3

PA

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

OK

tenv3

PA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

J900

0.19 km

J540

16.43 km

J026

22.74 km

J155

24.60 km

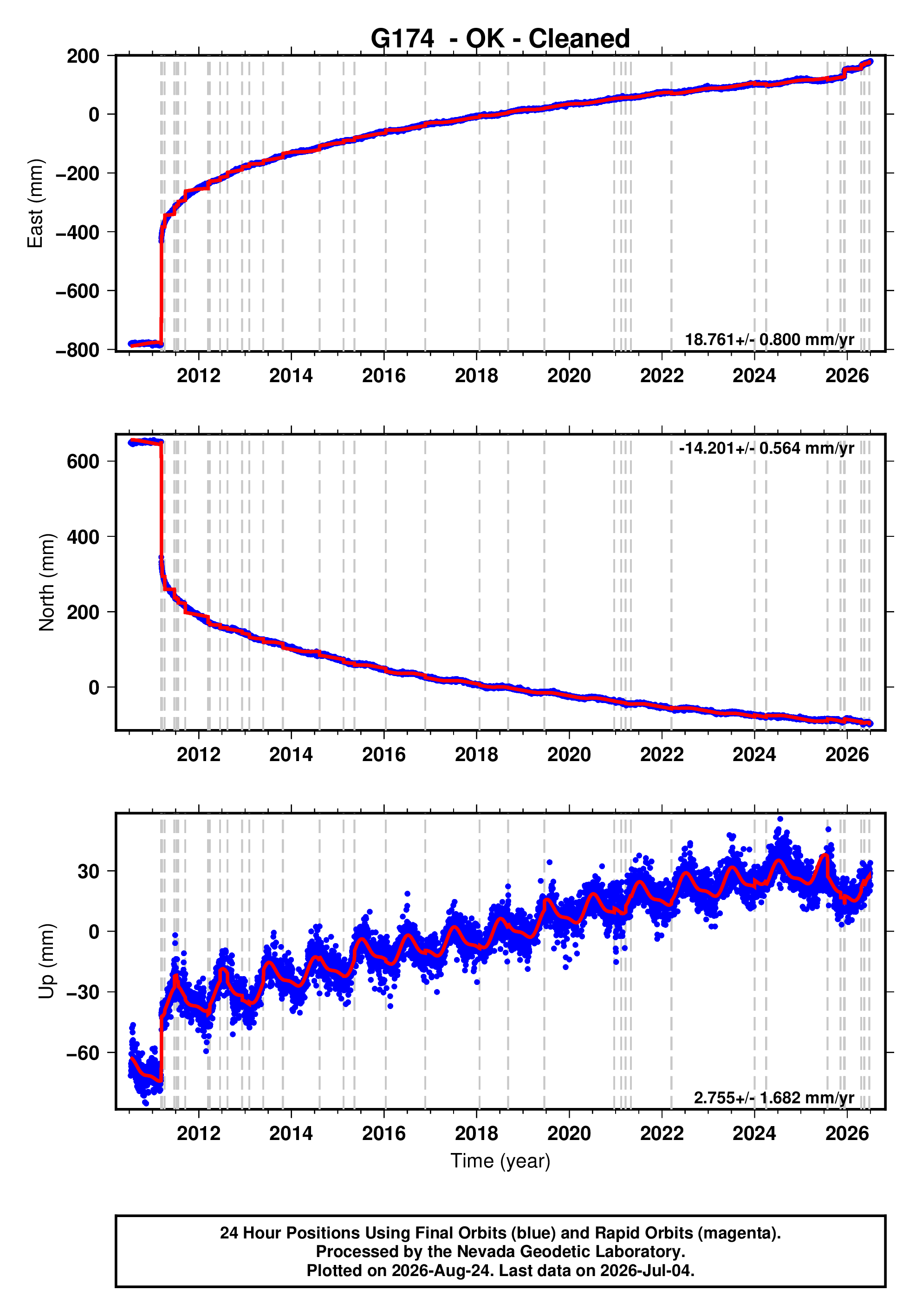

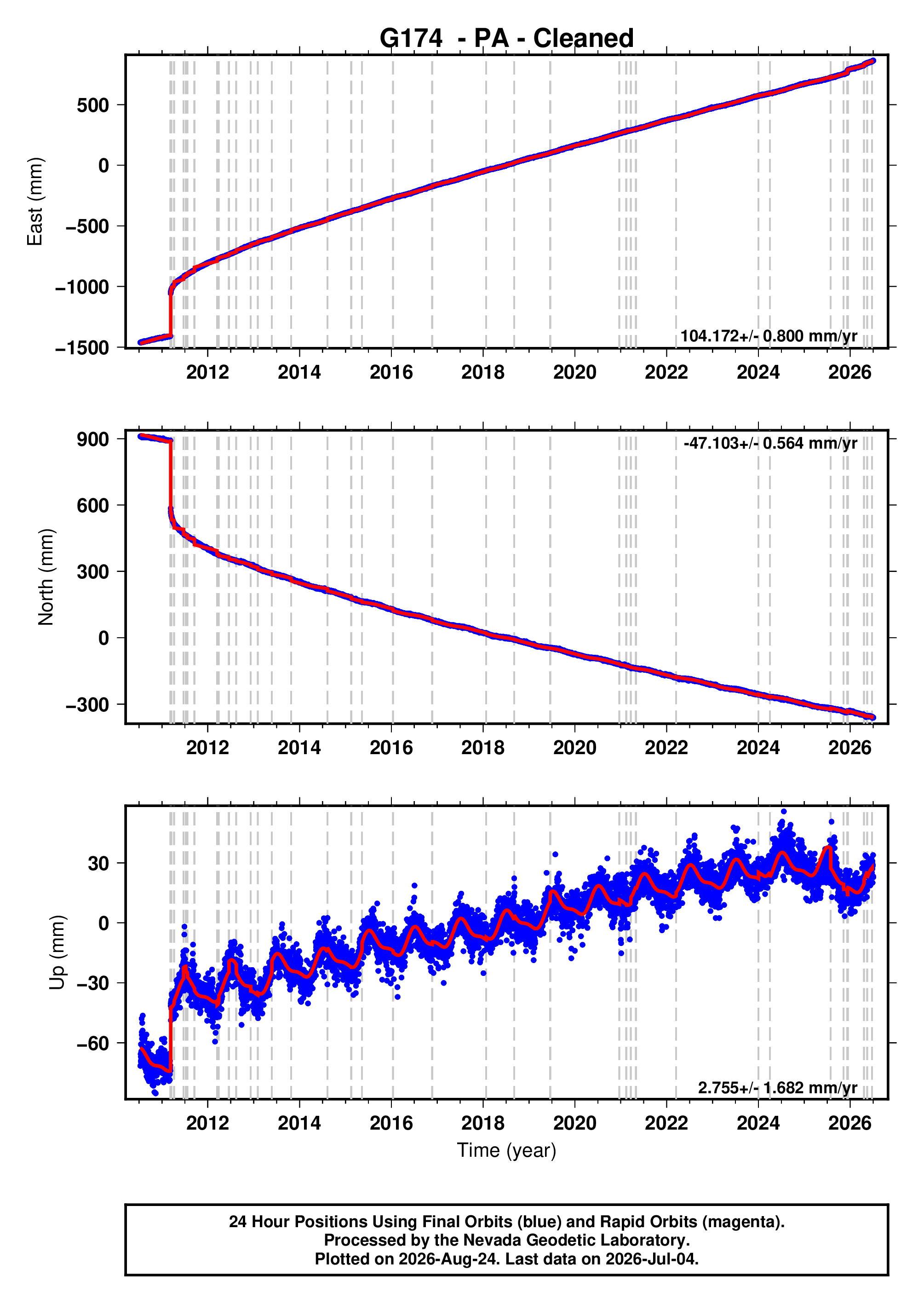

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

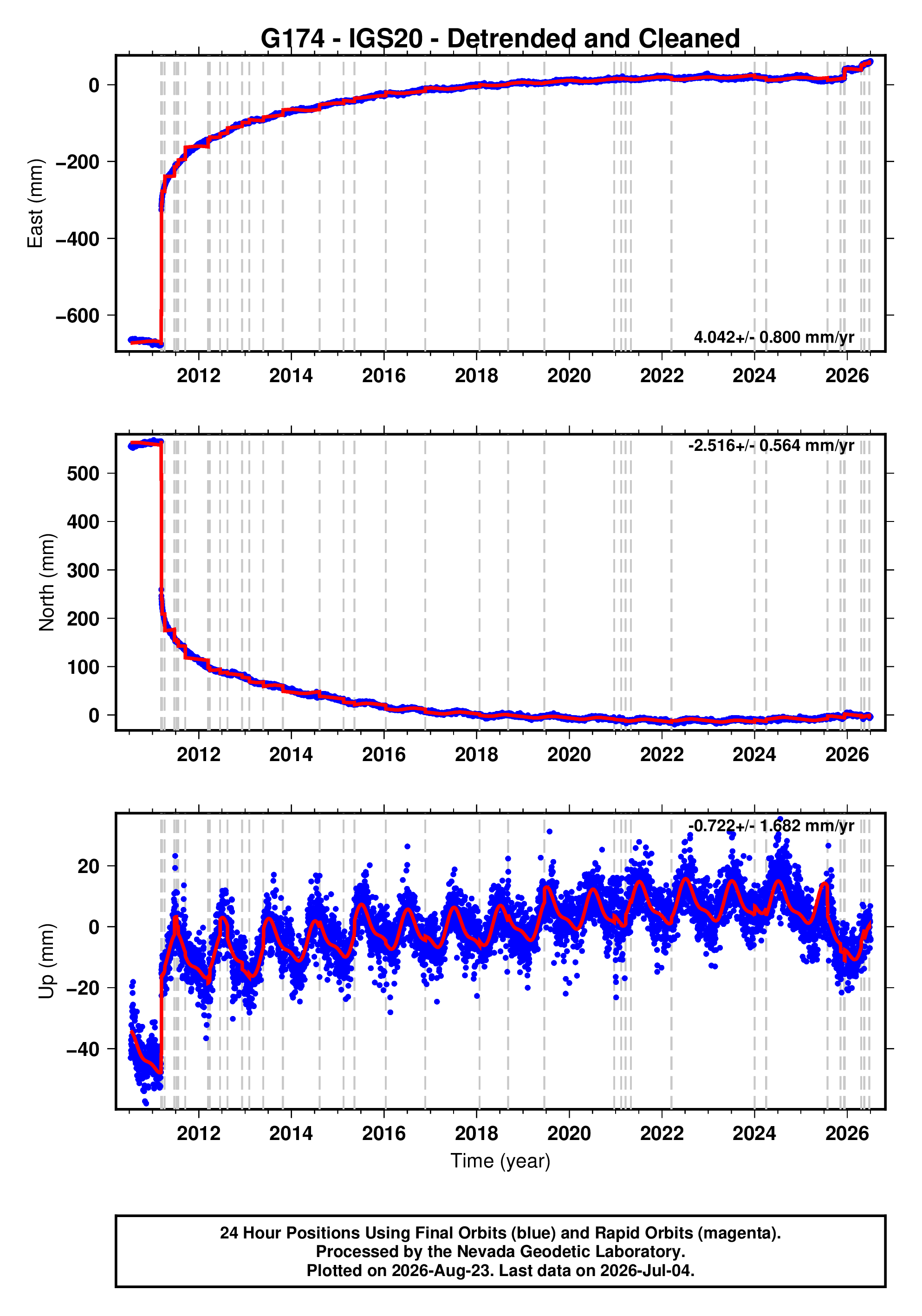

GPS time series plot

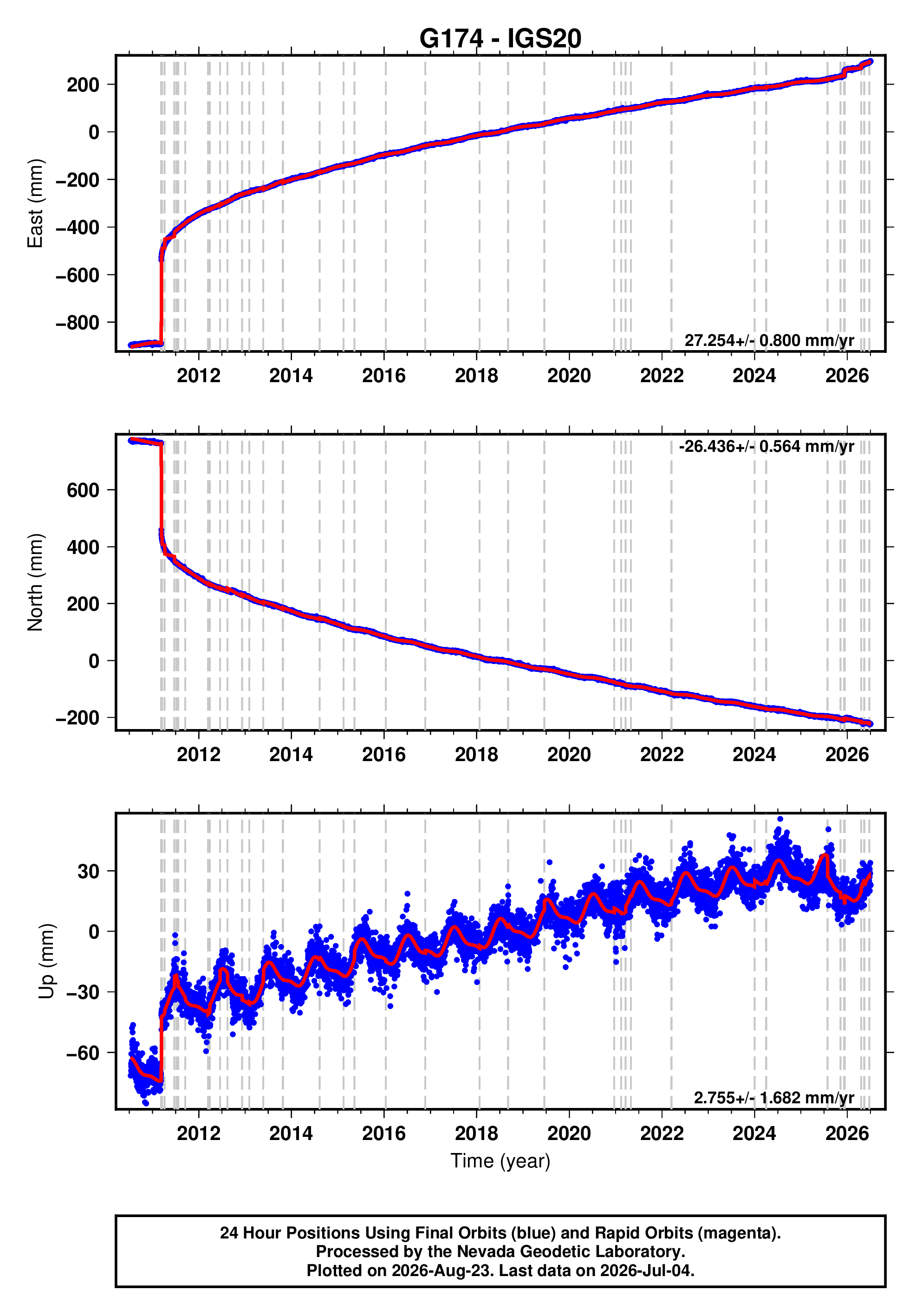

GPS time series plot

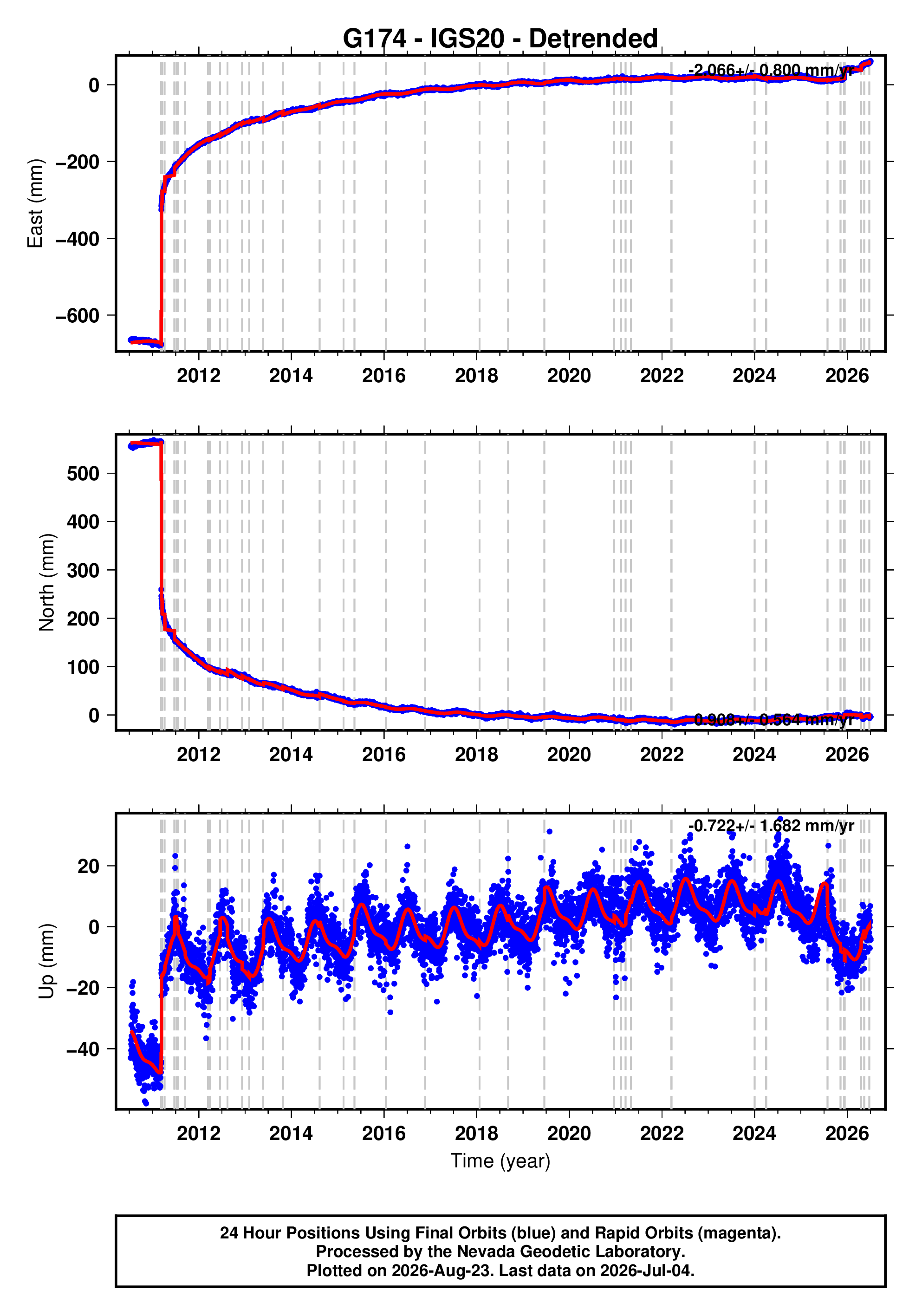

GPS time series plot

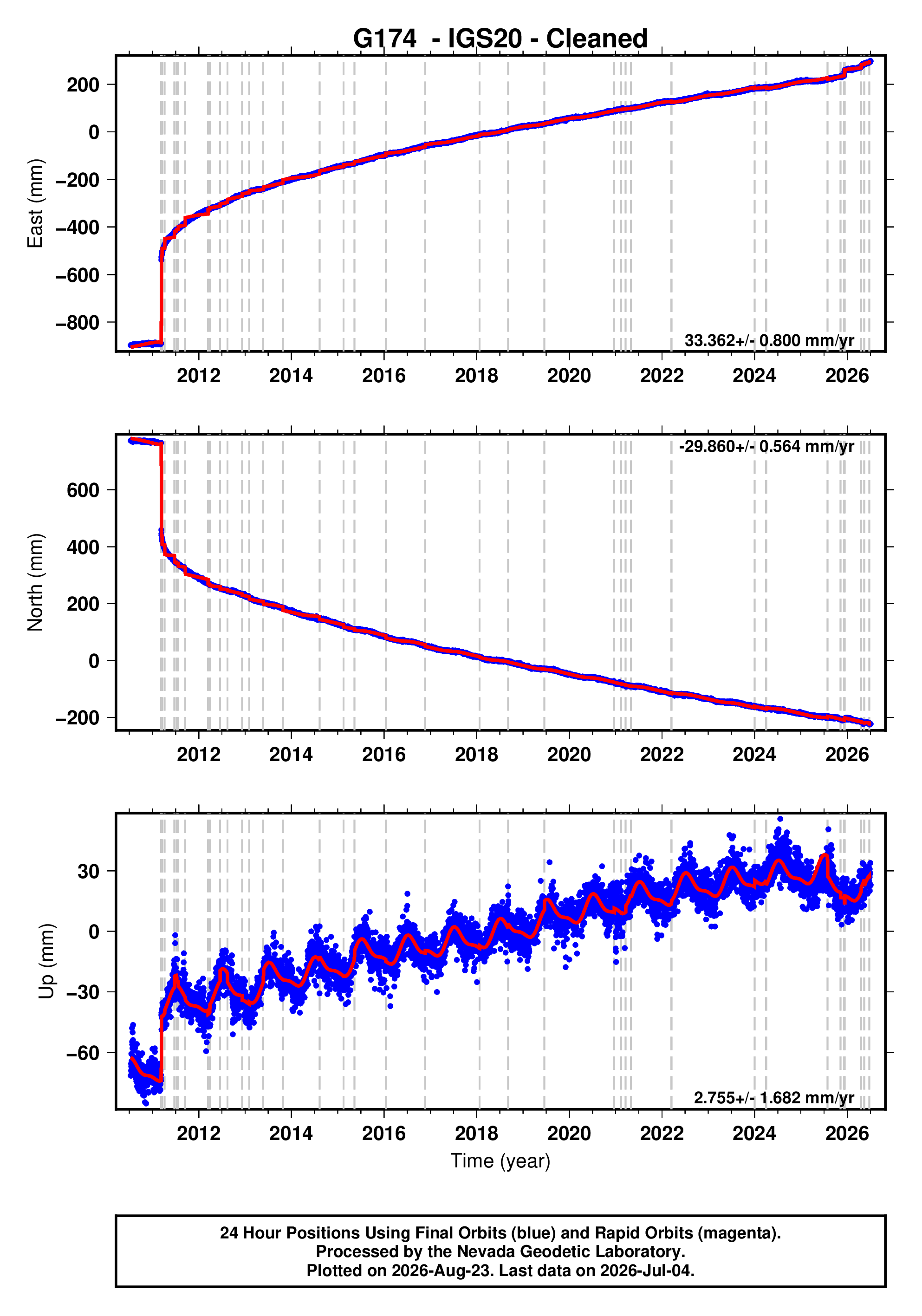

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
G17411MAR09 usp000hvhj 7.3 323.1
G17411MAR11 official20110311054624120_30 9.1 309.8
G17411MAR11 usp000hvp5 6.7 317.7
G17411MAR11 usp000hvpa 7.9 482.7
G17411MAR11 usp000hvpg 7.7 463.4
G17411MAR11 usp000hvpz 5.8 111.0
G17411MAR11 usp000hvuu 6.6 237.1
G17411MAR11 usp000hw1y 6.2 105.3
G17411MAR17 usp000hxmc 6.2 166.0
G17411APR07 usp000hzf6 7.1 278.7
G17411JUN22 usp000j3k6 6.7 176.1
G17411JUL10 usp000j4gp 7.0 380.9
G17411SEP16 usp000j84y 6.7 212.9
G17412MAR14 usp000jg7e 6.9 393.2
G17412MAR27 usp000jgv9 6.1 166.5
G17412JUN17 usp000jmwc 6.3 226.2
G17412DEC07 usp000jwjn 7.3 433.7
G17413FEB02 usc000f03a 6.9 336.9
G17413MAY24 usb000h4jh 8.3 1855.8
G17413OCT25 usc000kn4n 7.1 536.0
G17414AUG10 usb000s1nc 6.1 167.4
G17415FEB16 usb000tpvj 6.7 233.7
G17415MAY12 us20002et4 6.8 237.7
G17416JAN14 us10004ebx 6.7 259.4
G17416NOV21 us10007b88 6.9 366.2
G17418JAN24 us2000cnnl 6.3 189.1
G17418SEP05 us2000h8ty 6.6 271.2
G17419JUN18 us600042fx 6.4 226.4
G17420DEC20 us7000csqe 6.3 195.4
G17421FEB13 us6000dher 7.1 341.5
G17421MAR20 us7000dl6y 7.0 263.1
G17421MAY01 us7000dz5t 6.9 286.9
G17422MAR16 us6000h519 7.3 336.9
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
