MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : G165

Network Operator's Station ID : 1165

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 33.309 degrees

Longitude: 132.597 degrees

Height: 238.082 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

EU

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

EU

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

G049

13.64 km

J829

14.06 km

J681

15.44 km

J436

17.73 km

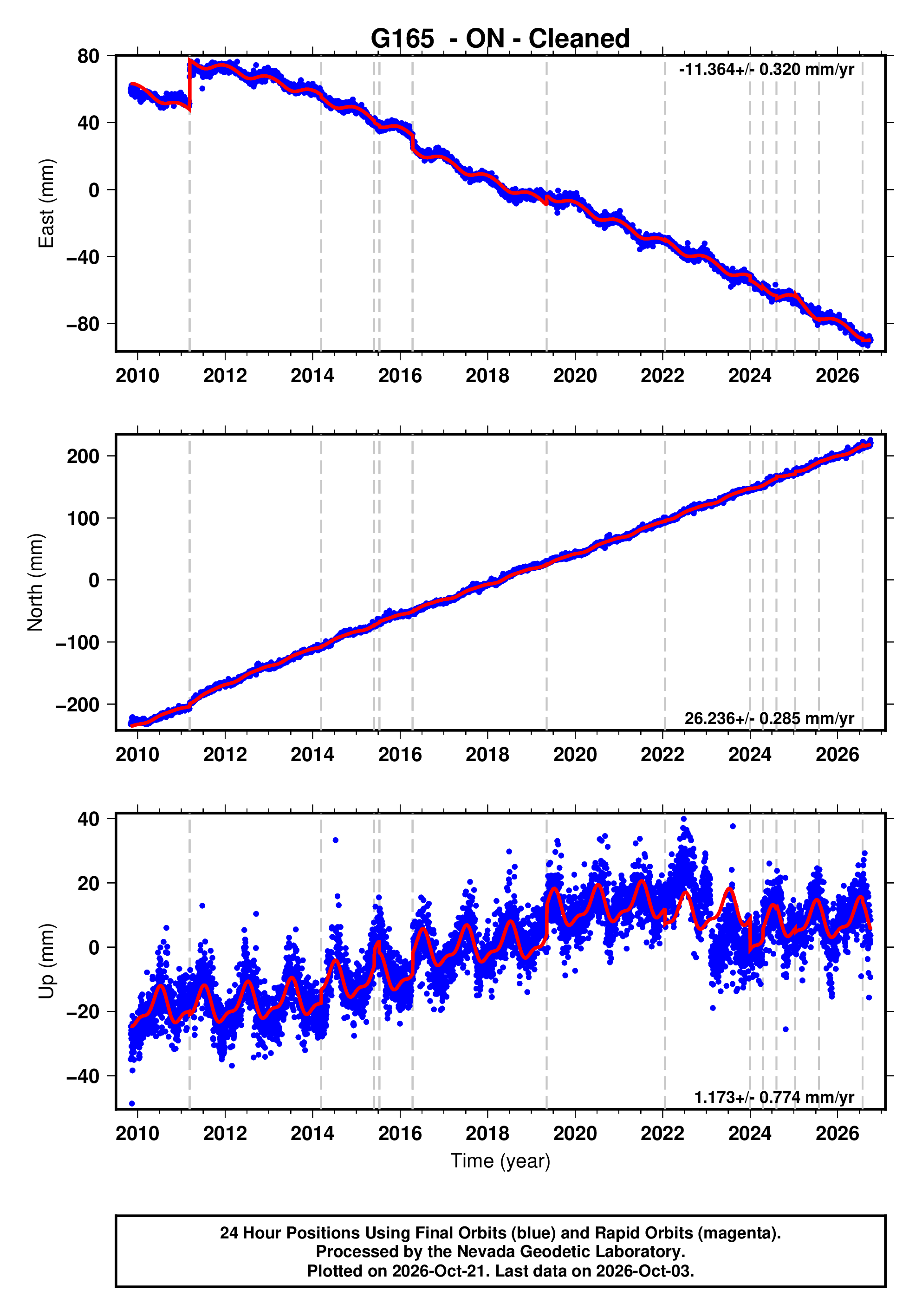

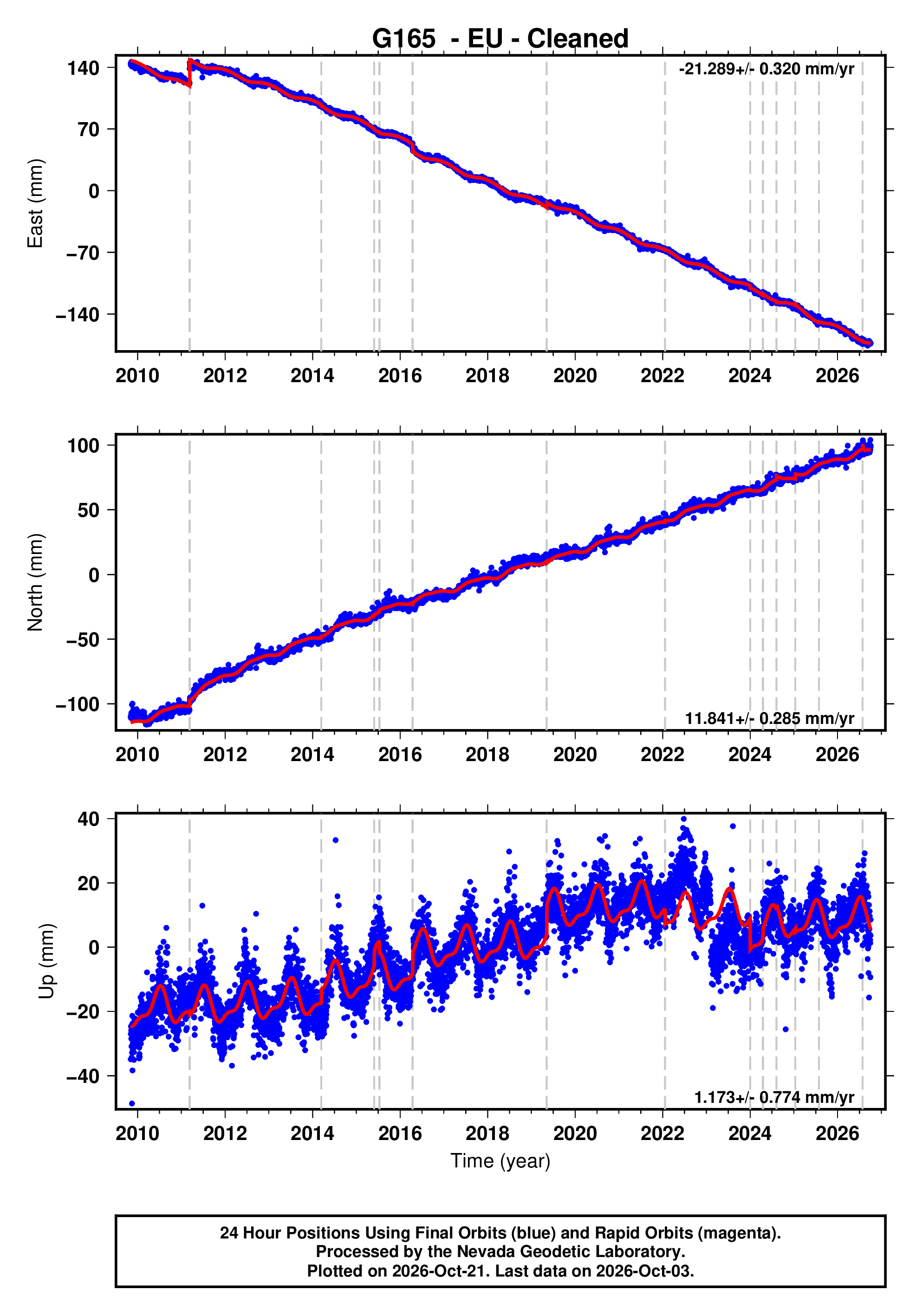

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
G16511MAR11 official20110311054624120_30 9.1 1040.7
G16511MAR11 usp000hvpa 7.9 844.3
G16514MAR13 usc000nabv 6.3 82.9
G16515MAY30 us20002ki3 7.8 969.7
G16516APR14 us20005hzn 6.2 185.7
G16516APR15 us20005iis 7.0 181.2
G16519MAY09 us70003j46 6.2 184.2
G16522JAN21 us7000gdwz 6.3 83.0
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
