MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : G144

Network Operator's Station ID : 1144

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 34.971 degrees

Longitude: 138.795 degrees

Height: 76.935 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

PA

env

PS

env

24 Hour Rapid Solutions

IGS14

env

PA

env

PS

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

J620

12.95 km

J626

13.31 km

I049

13.32 km

J297

16.48 km

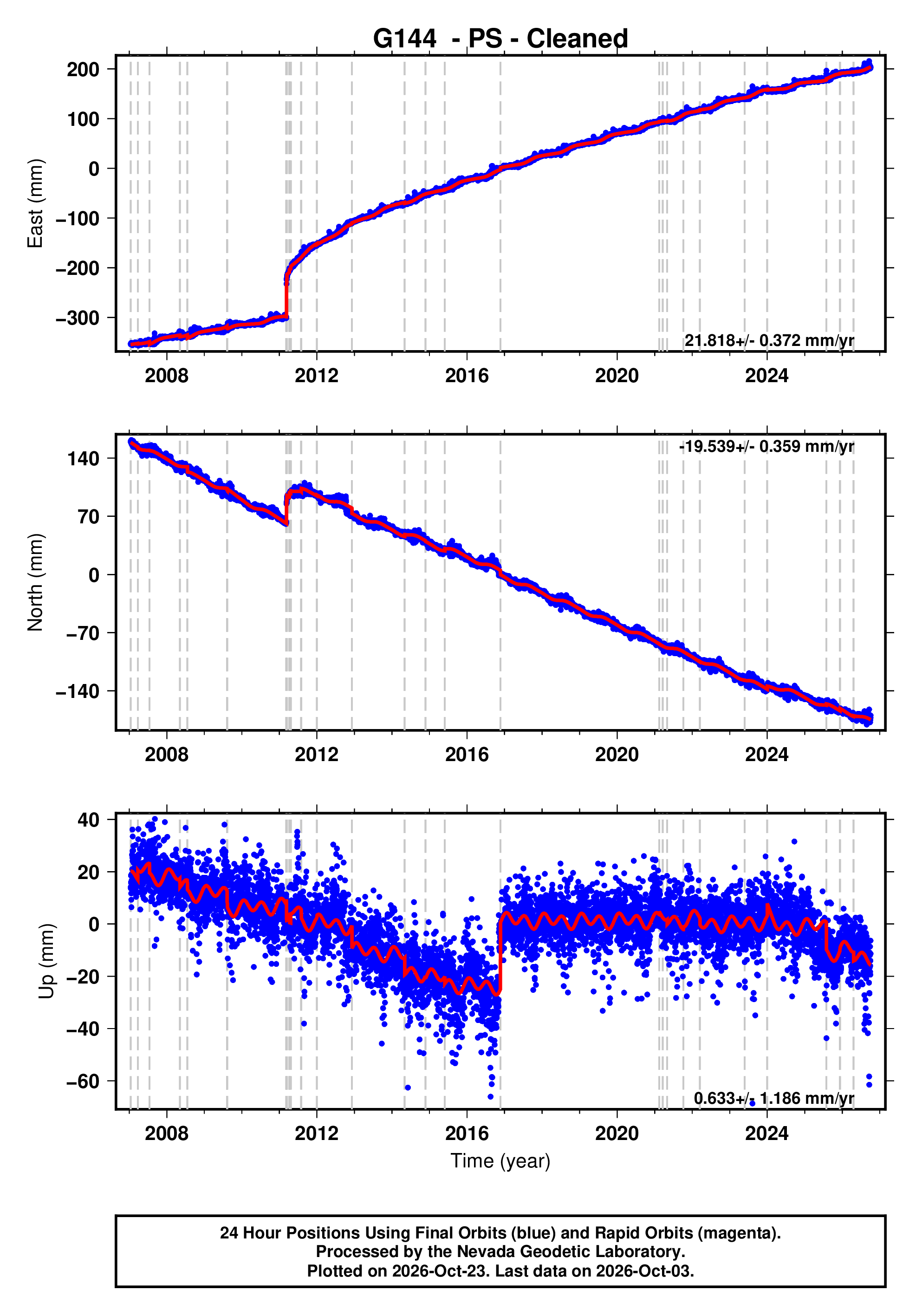

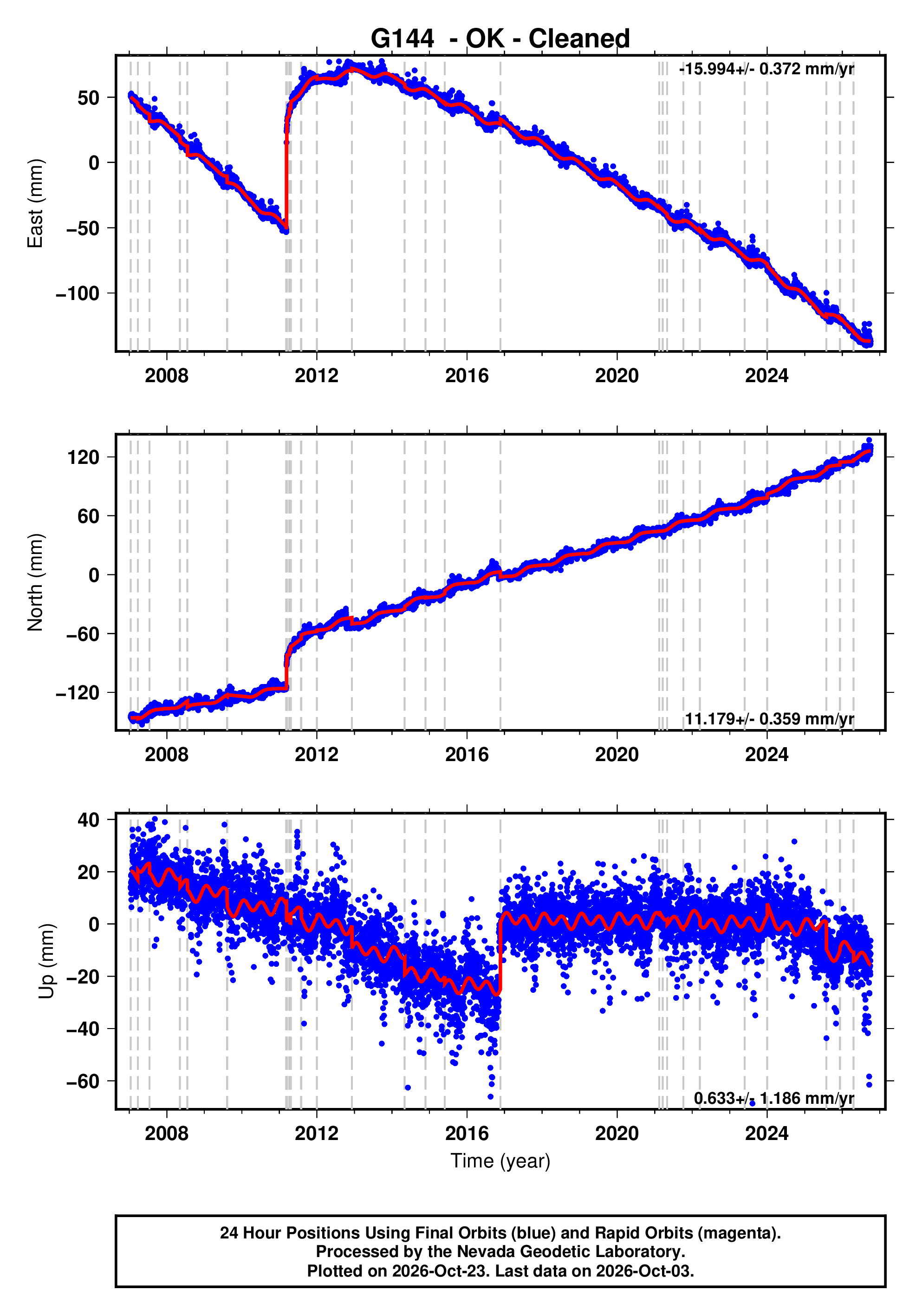

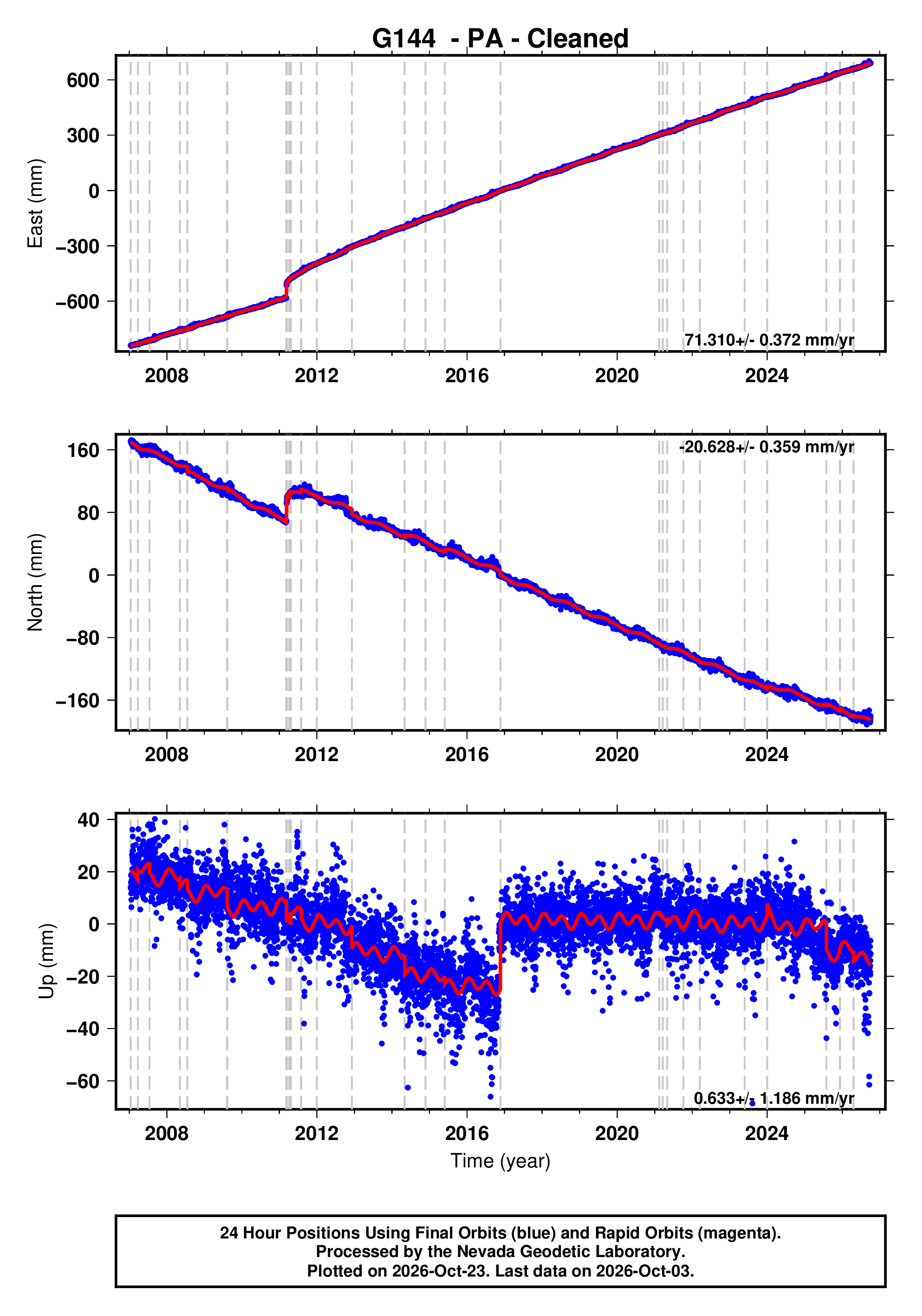

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
G14409AUG09 usp000h04j 7.1 215.3
G14409AUG10 usp000h05y 6.2 54.6
G14409AUG12 usp000h093 6.6 281.0
G14411MAR09 usp000hvhj 7.3 527.7
G14411MAR11 official20110311054624120_30 9.1 488.5
G14411MAR11 usp000hvpa 7.9 255.1
G14411MAR11 usp000hvpg 7.7 621.2
G14411MAR11 usp000hvrd 6.5 283.4
G14411MAR15 usp000hxc7 6.0 38.7
G14411APR07 usp000hzf6 7.1 444.1
G14411APR11 usp000hzq8 6.6 268.1
G14411APR11 usp000hzsk 6.2 169.2
G14411APR21 usp000j0c3 6.2 152.9
G14411AUG01 usp000j5ua 5.9 50.2
G14412DEC07 usp000jwjn 7.3 563.8
G14414NOV22 usb000syza 6.2 202.9
G14415MAY30 us20002ki3 7.8 809.2
G14416NOV21 us10007b88 6.9 355.9
G14421FEB13 us6000dher 7.1 406.3
G14421MAR20 us7000dl6y 7.0 463.1
G14421MAY01 us7000dz5t 6.9 437.6
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
