MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : G012

Network Operator's Station ID : 1012

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 33.669 degrees

Longitude: 135.882 degrees

Height: 590.295 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

EU

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

EU

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

New!: Loading Predictions.
See this README file for explanation.

IGS14

tenv3 file with extra columns

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format,
Loading triplet enhanced tenv3 files
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

G155

8.24 km

J376

10.09 km

SMST

11.31 km

J316

14.39 km


Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

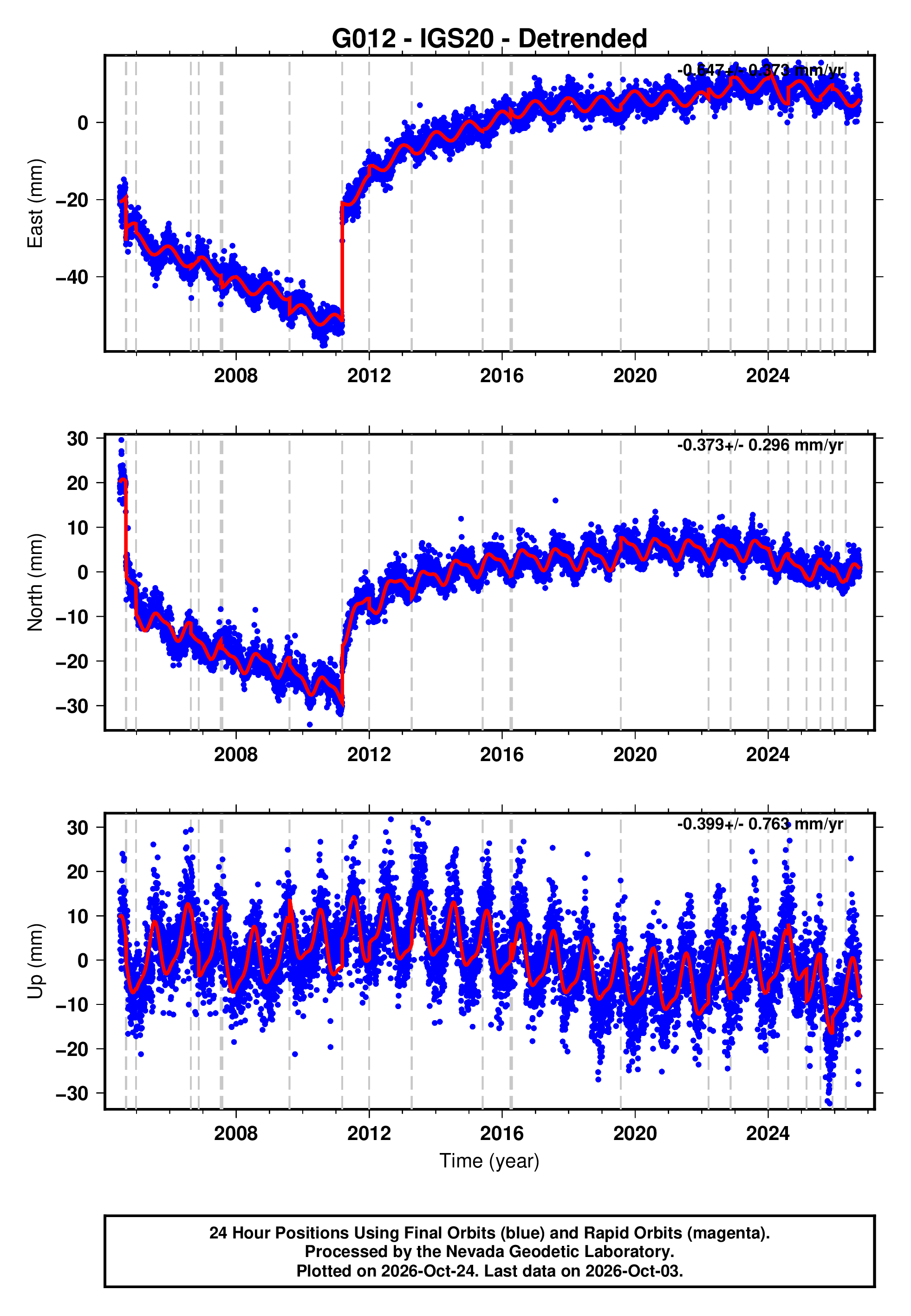

GPS time series plot

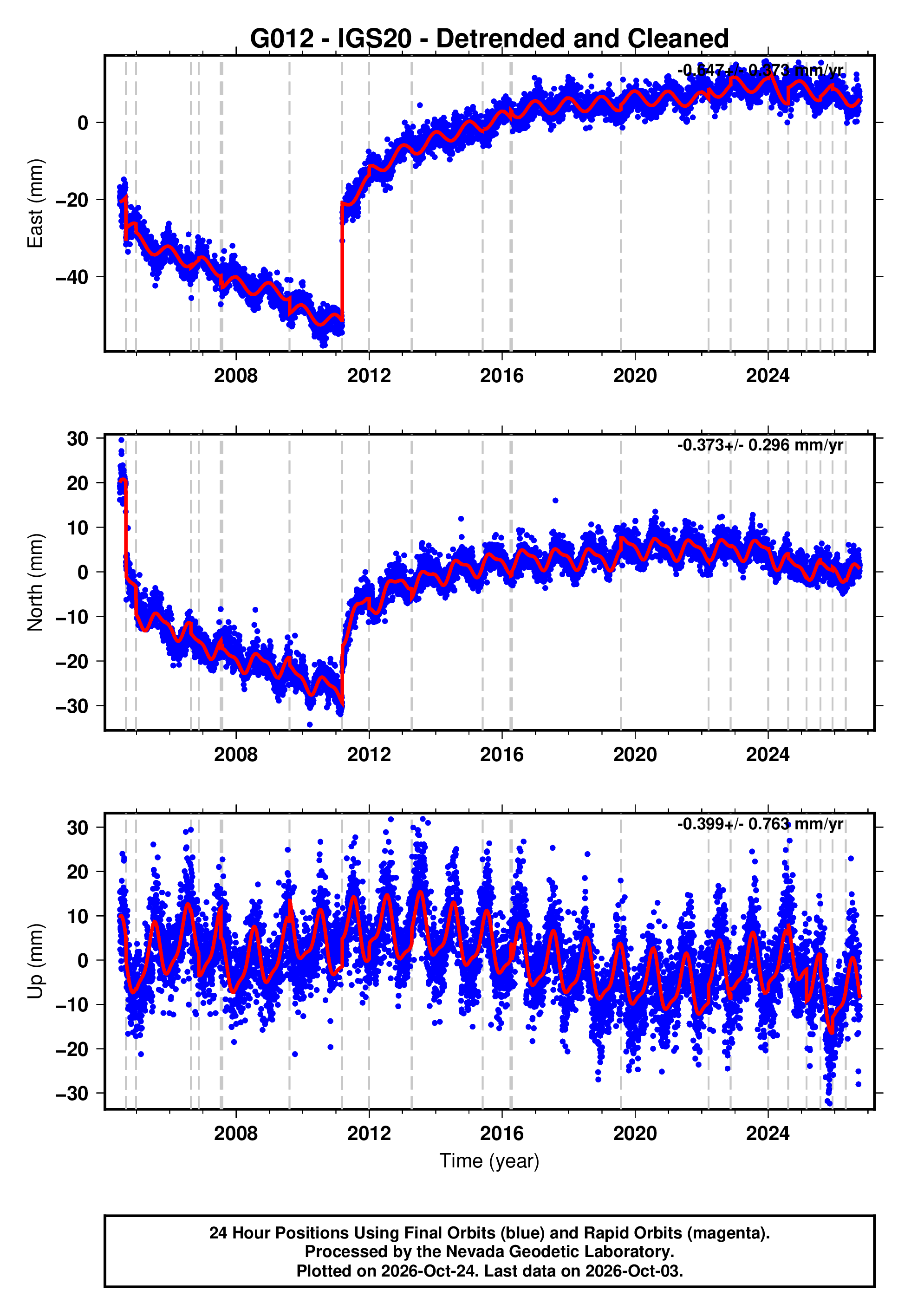

GPS time series plot

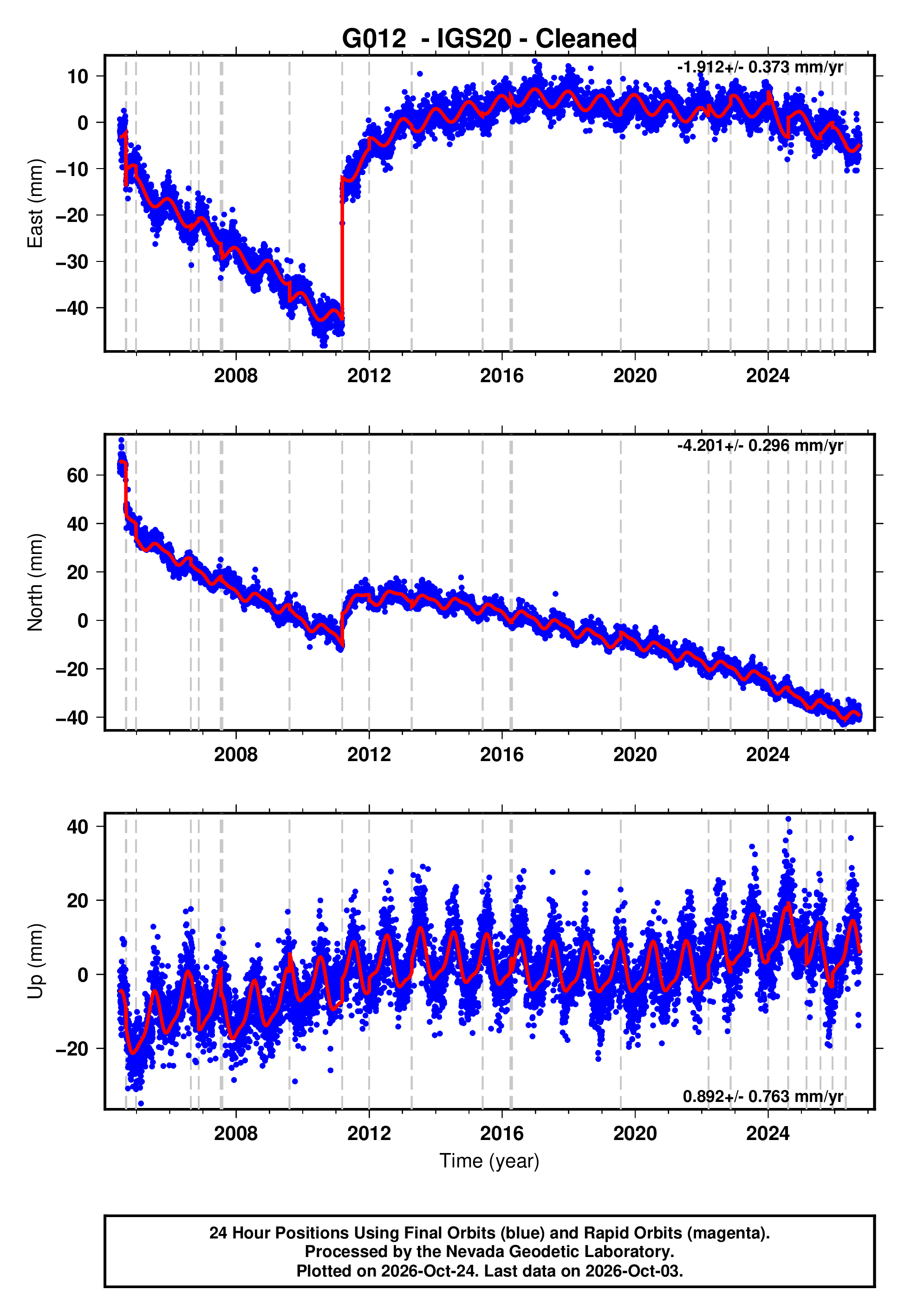

GPS time series plot

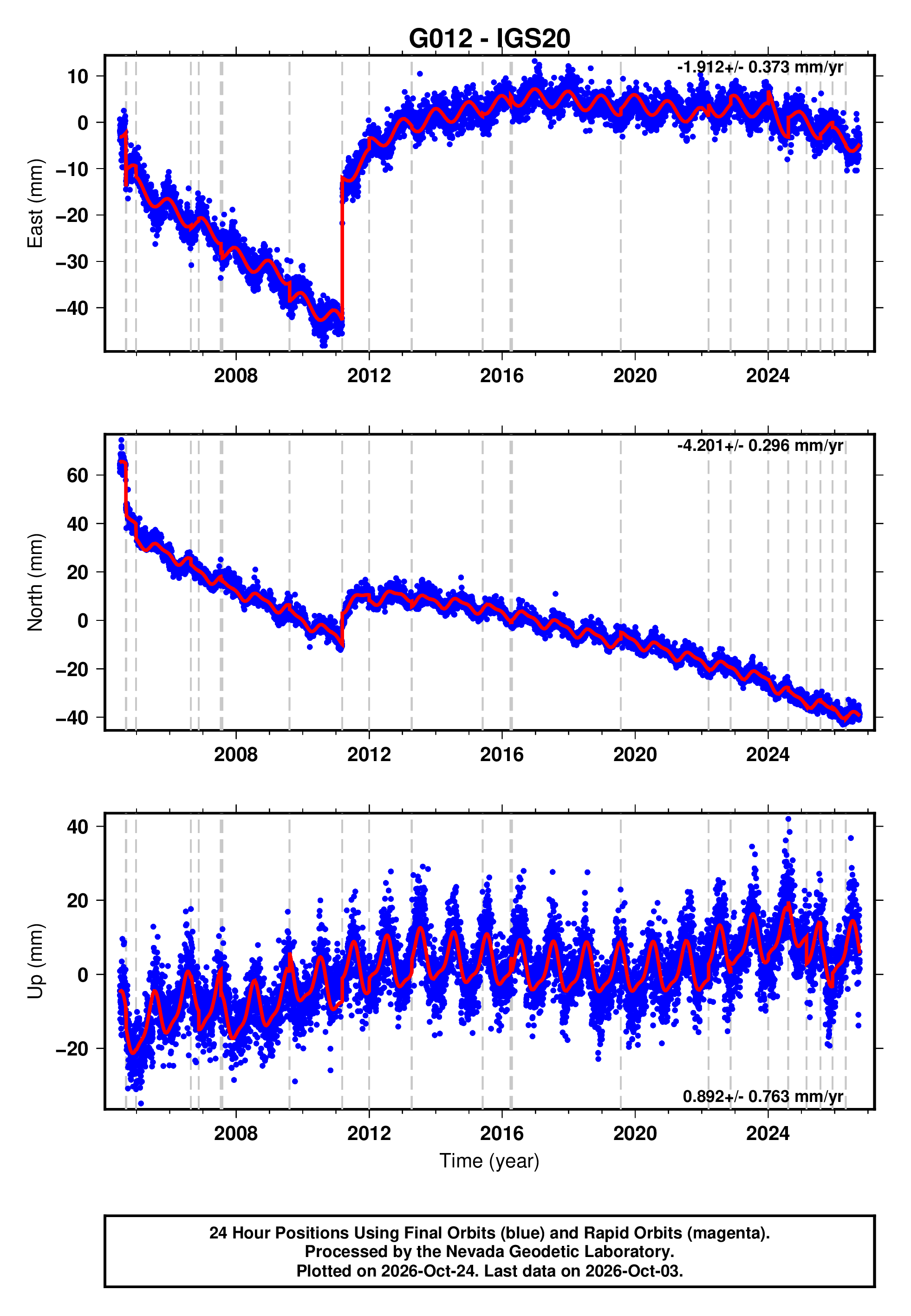

GPS time series plot

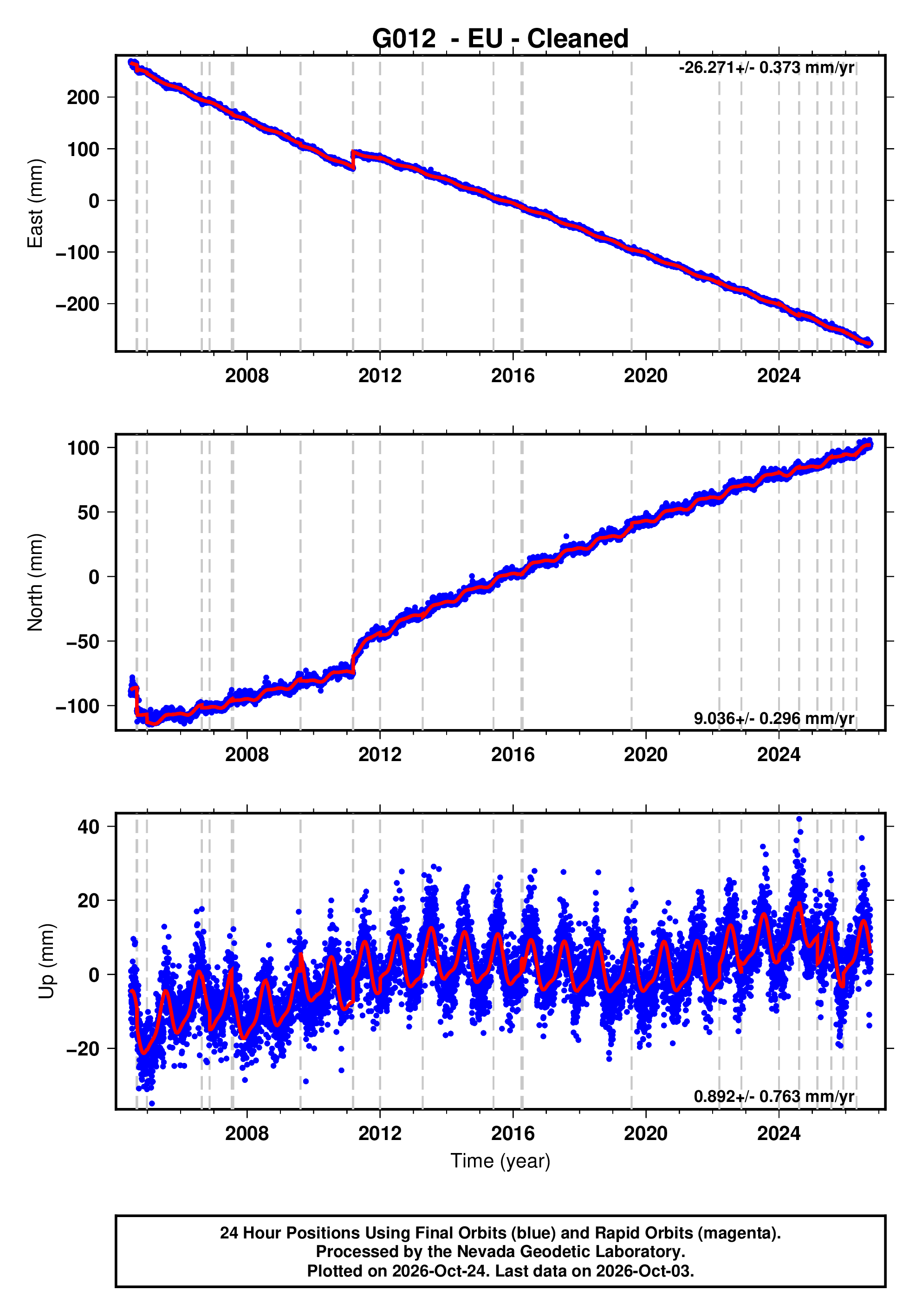

GPS time series plot

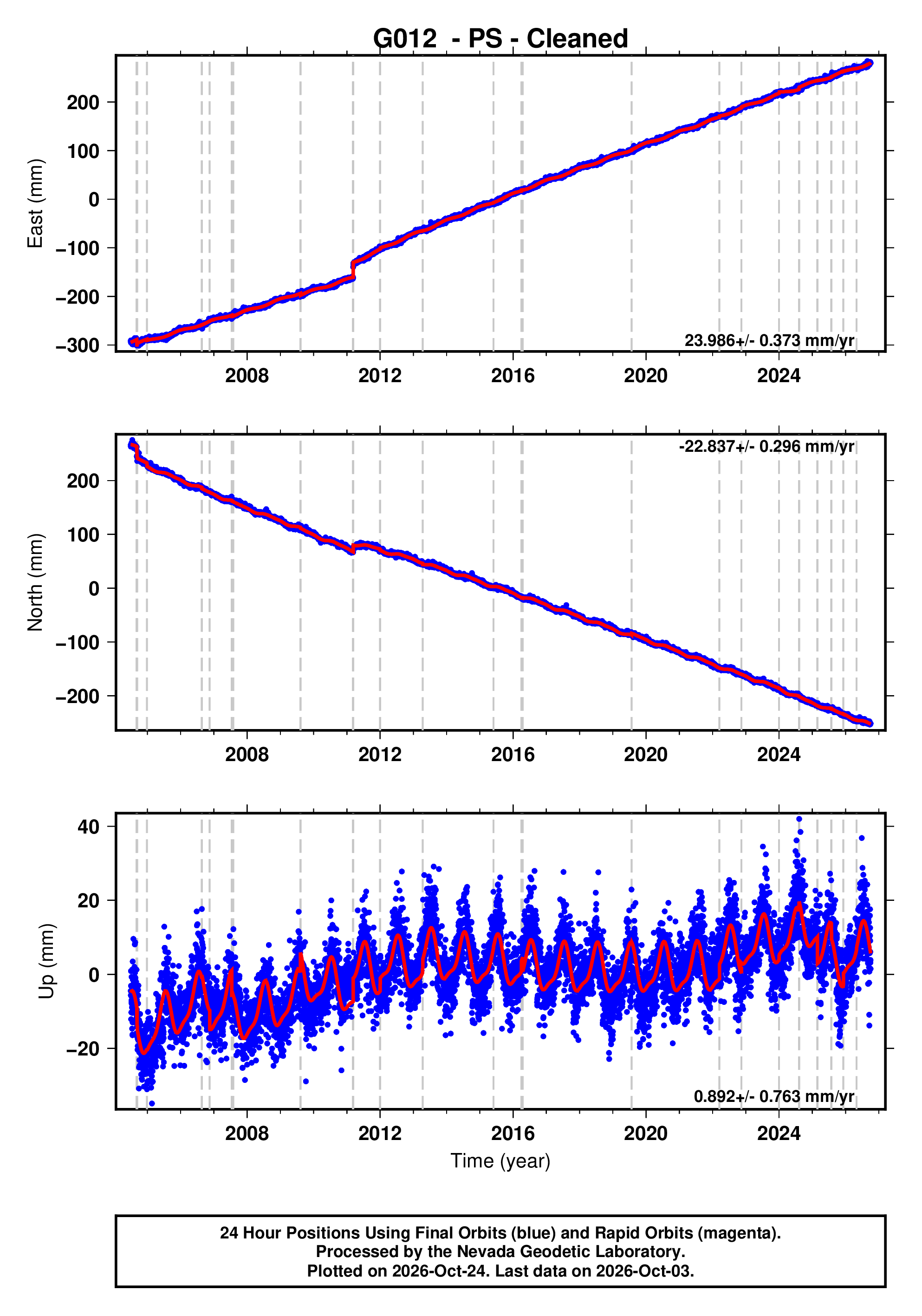

GPS time series plot
QA plot
Load prediction plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
G01209AUG09 usp000h04j 7.1 199.3
G01211MAR11 official20110311054624120_30 9.1 778.0
G01211MAR11 usp000hvpa 7.9 557.9
G01211MAR11 usp000hvpg 7.7 923.5
G01213APR12 usb000g5yg 5.8 124.5
G01215MAY30 us20002ki3 7.8 783.6
G01216APR01 us20005du0 5.9 57.0
G01216APR15 us20005iis 7.0 486.8
G01222MAR16 us6000h519 7.3 683.1
G01224JAN01 us6000m0xl 7.5 442.8
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
