MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : ELIZ

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 49.873 degrees

Longitude: -127.123 degrees

Height: 164.683 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

NA

tenv3

PA

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

NA

tenv3

PA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

TAHB

31.96 km

NTKA

47.93 km

WOSB

50.80 km

WOST

52.82 km

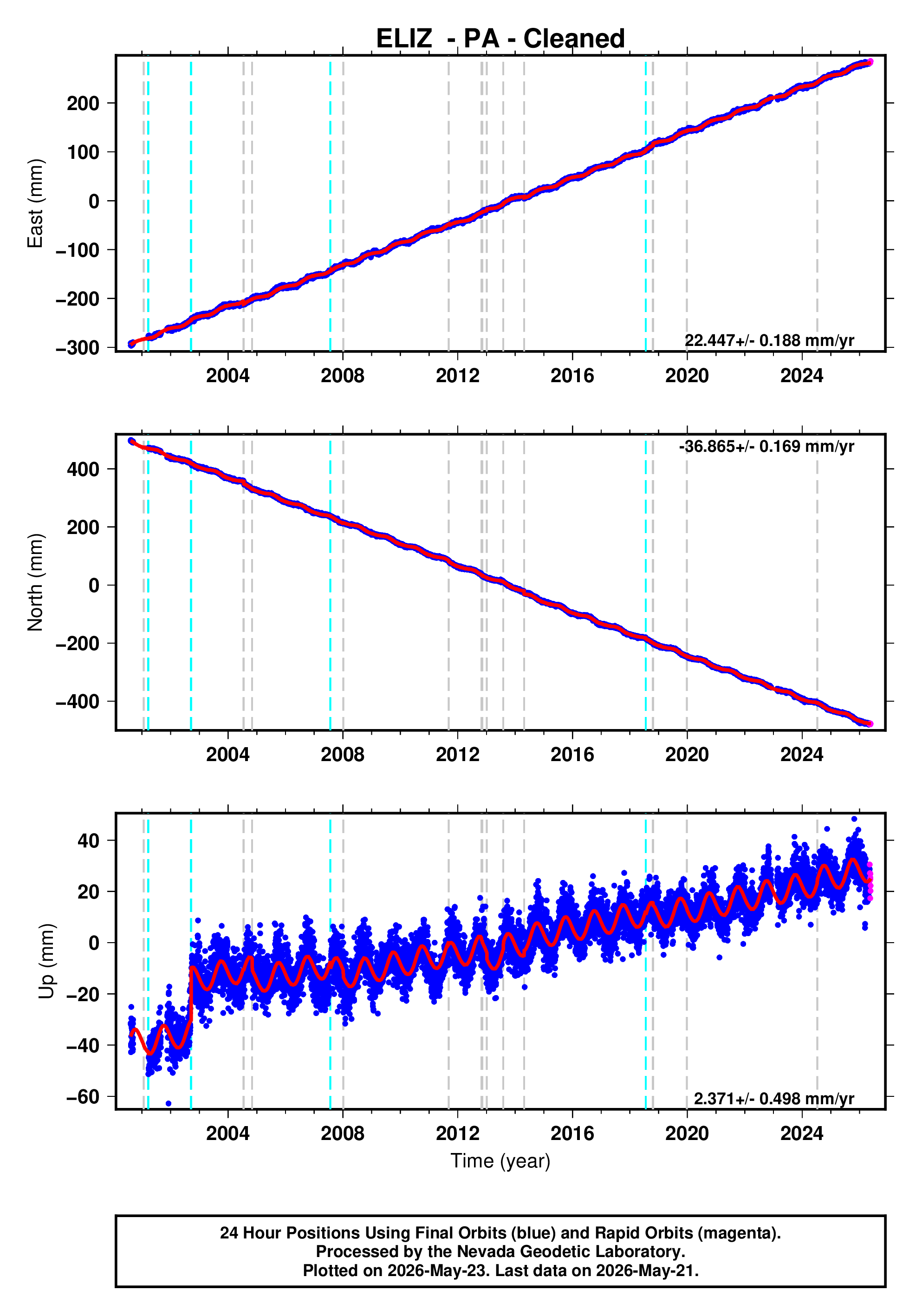

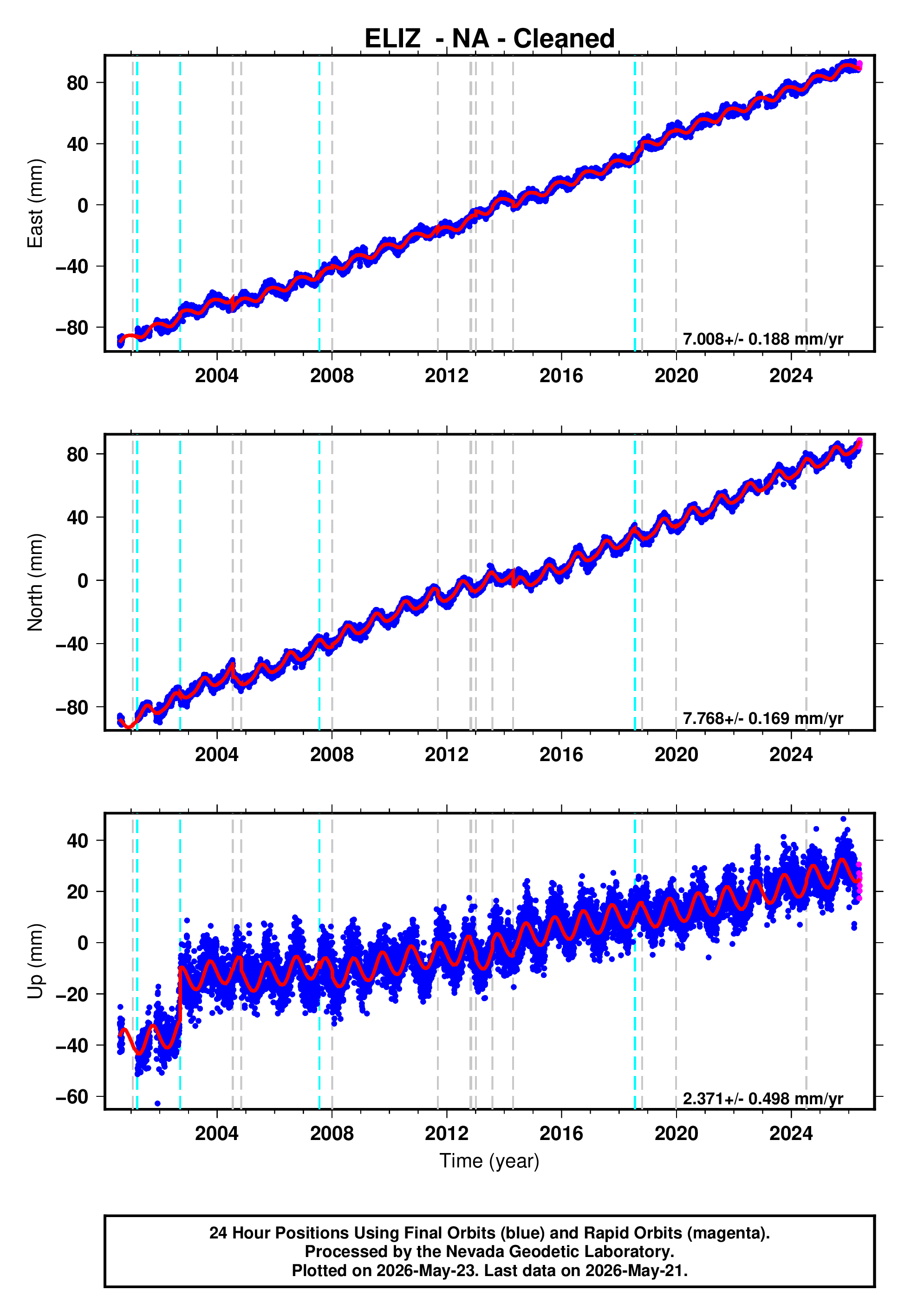

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
ELIZ01MAR20 Elevation_Cutoff_Changed - -
ELIZ01MAR20 Receiver_Make_and_Model_Changed - -
ELIZ01MAR22 Receiver_Make_and_Model_Changed - -
ELIZ02SEP17 Antenna_Code_Changed - -
ELIZ02SEP17 Receiver_Make_and_Model_Changed - -
ELIZ07JUL26 Elevation_Cutoff_Changed - -
ELIZ18JUL20 Antenna_and_Radome_Codes_Changed - -
ELIZ18JUL20 Elevation_Cutoff_Changed - -
ELIZ18JUL20 Receiver_Make_and_Model_Changed - -
ELIZ01JAN23 usp000a878 5.9 134.5
ELIZ04JUL15 usp000d07f 5.9 27.6
ELIZ04JUL19 usp000d0fx 6.4 30.0
ELIZ04NOV02 usp000d7h4 6.7 136.1
ELIZ08JAN05 usp000fw0w 6.6 298.4
ELIZ11SEP09 usp000j7ur 6.4 41.1
ELIZ12OCT28 usp000juhz 7.8 473.8
ELIZ12NOV08 usp000jv6k 6.1 121.0
ELIZ13JAN05 ak0138esnzr 7.5 791.6
ELIZ13AUG04 usb000iv7t 5.5 32.2
ELIZ14APR24 usb000px6r 6.5 50.9
ELIZ18OCT22 us1000hfgn 6.5 178.7
ELIZ18OCT22 us1000hfgv 6.8 167.2
ELIZ18OCT22 us1000hfh3 6.5 198.1
ELIZ19DEC25 us70006qt7 6.3 218.0
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
