MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : COON

Data attribution information: DOI Database

DOI link for this station: https://doi.org/10.7283/T5B56H21

DOI link for this station: https://doi.org/10.7283/T5FX77S1

DOI link for this station: https://doi.org/10.7283/T56D5RB9

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 40.653 degrees

Longitude: -112.121 degrees

Height: 1609.993 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

NA

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

NA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

New!: Loading Predictions.
See this README file for explanation.

IGS14

tenv3 file with extra columns

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format,
Loading triplet enhanced tenv3 files
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

UTM1

6.60 km

P086

13.59 km

UTWV

13.63 km

UTCR

14.00 km

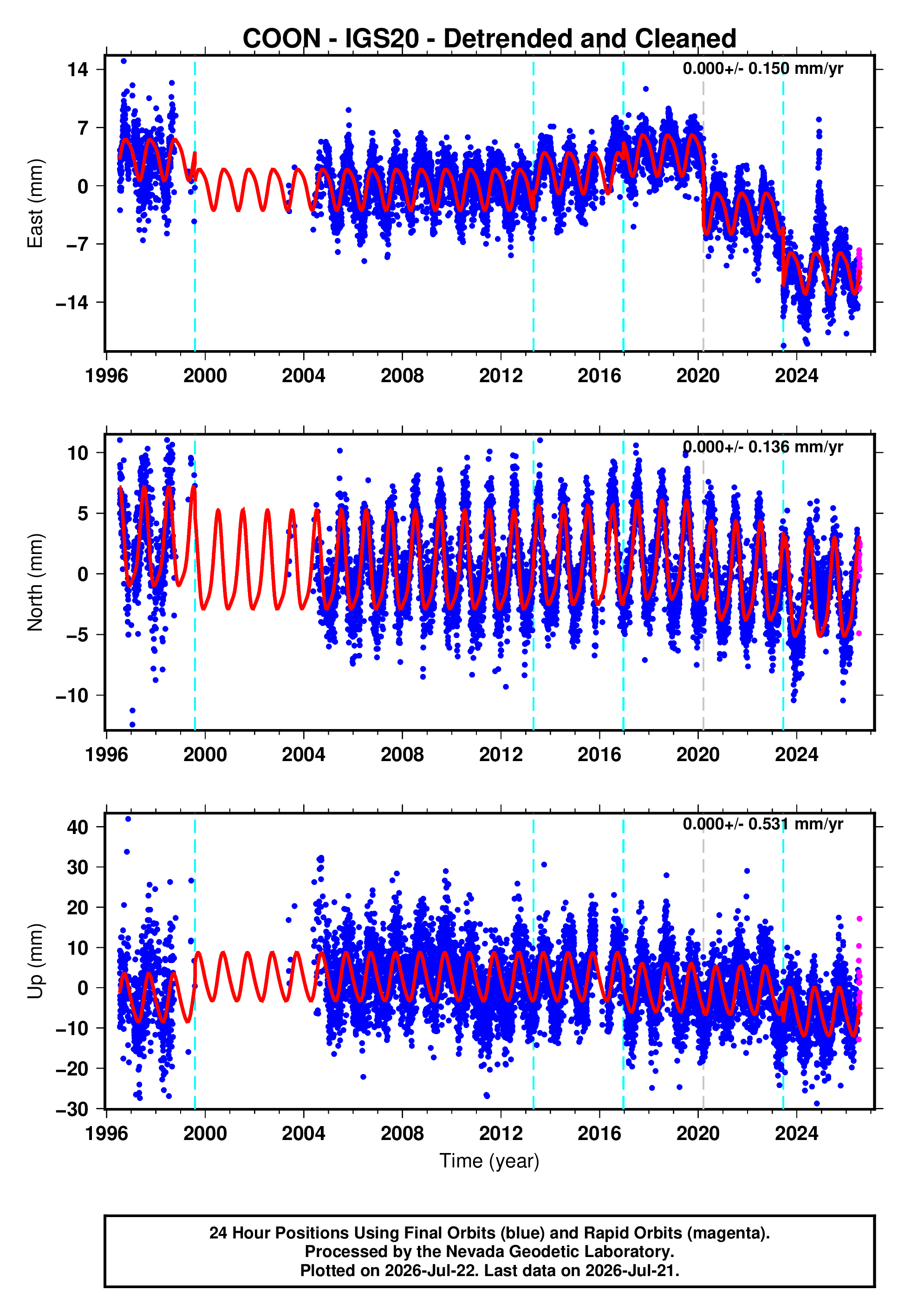

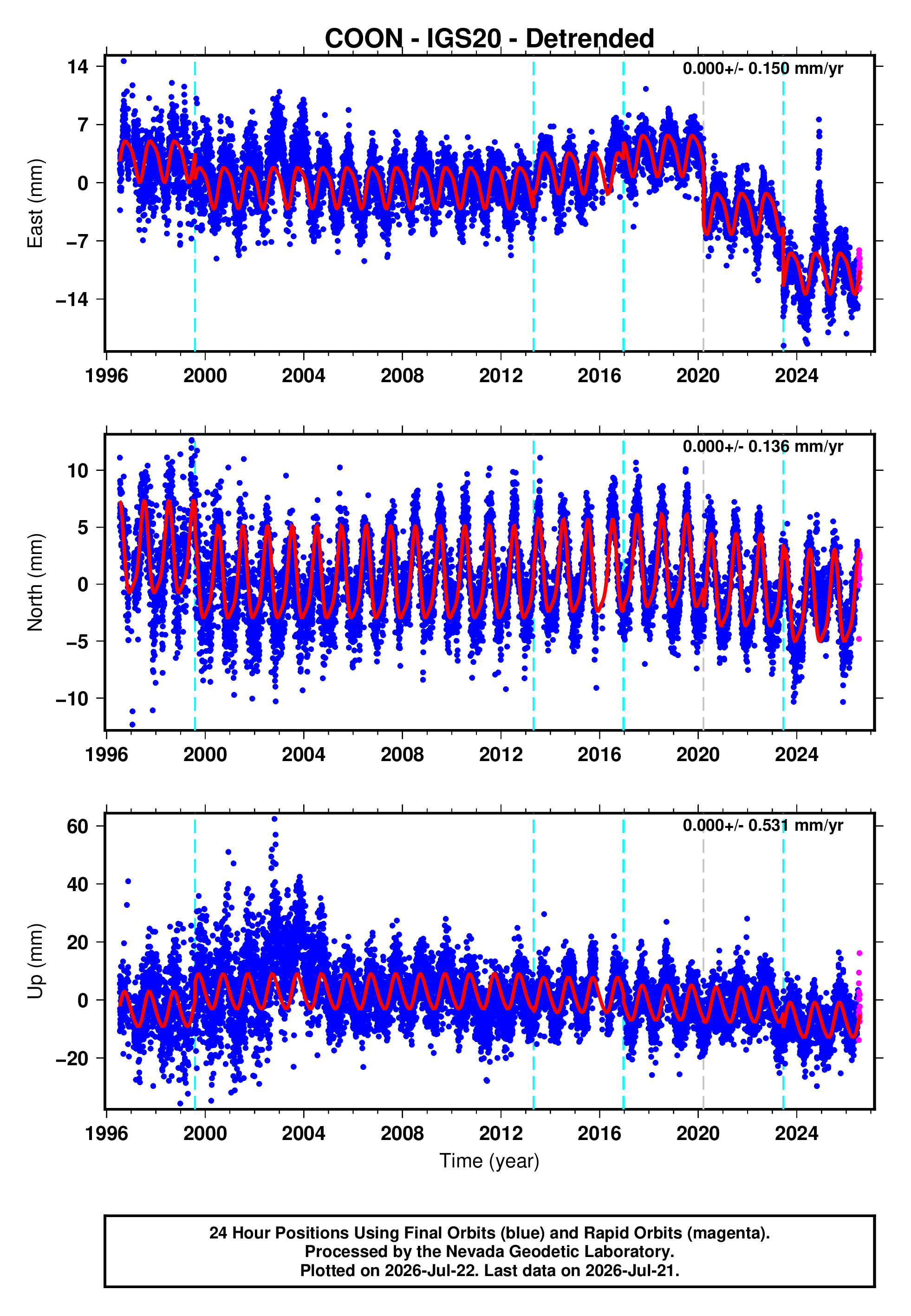

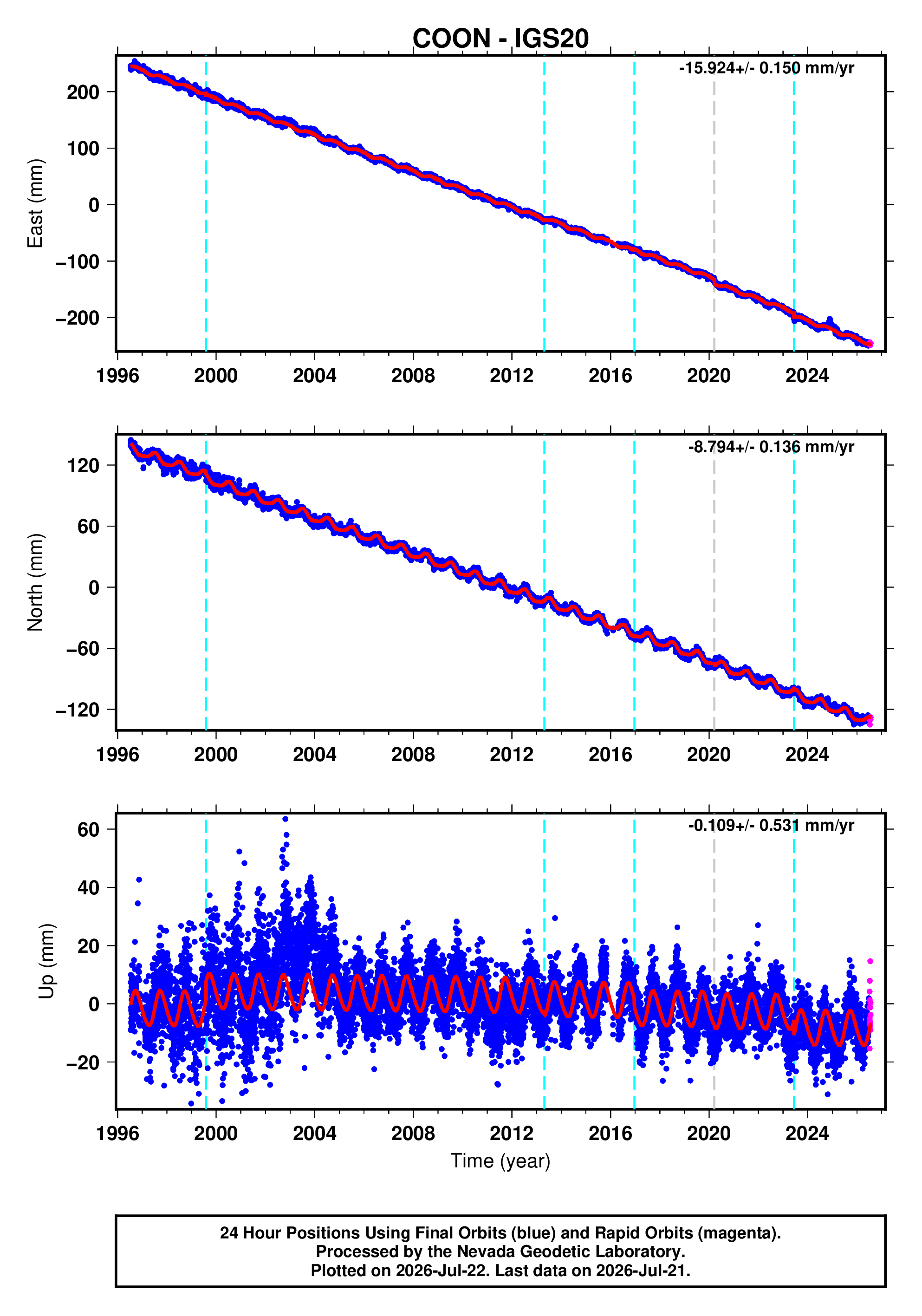

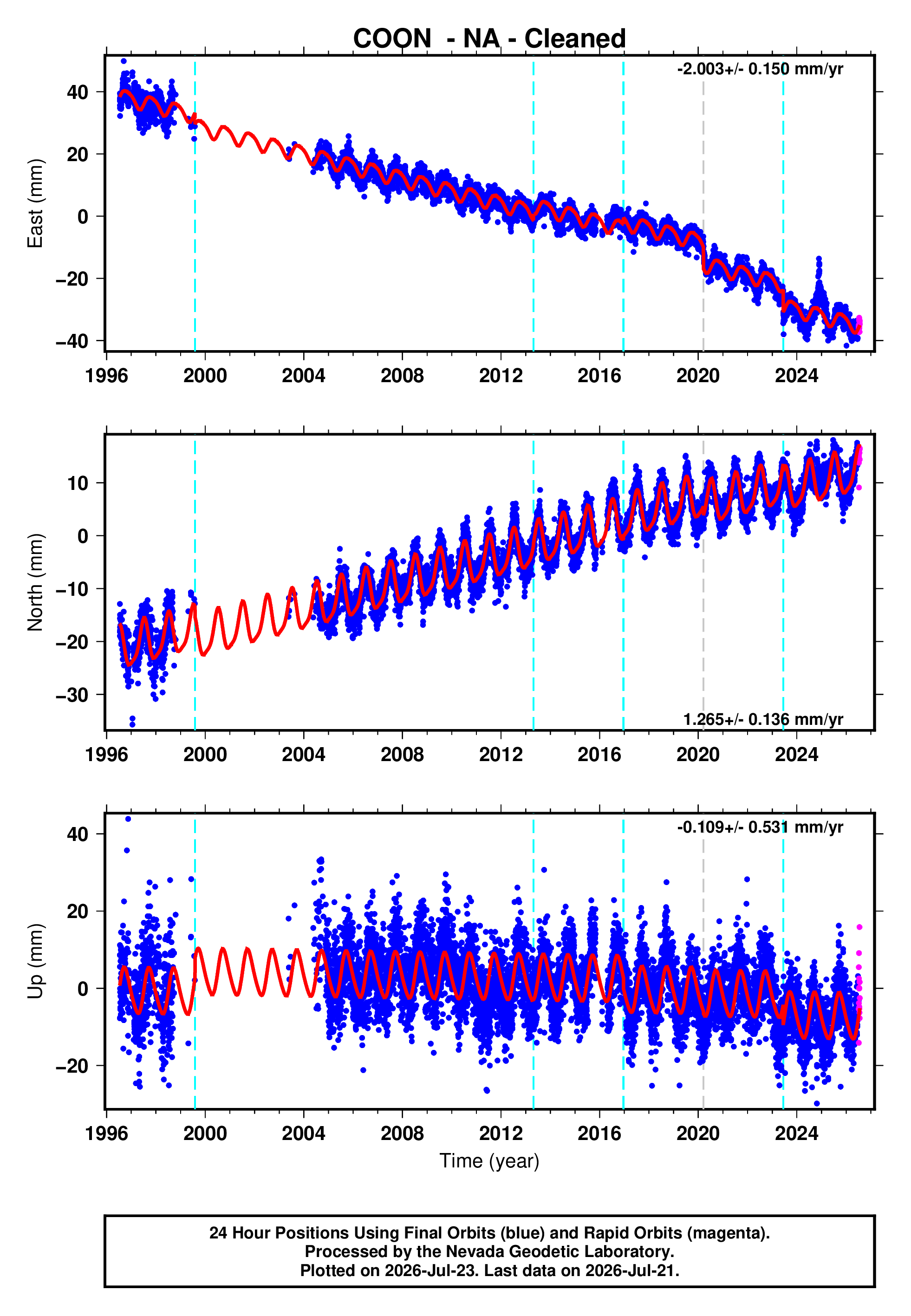

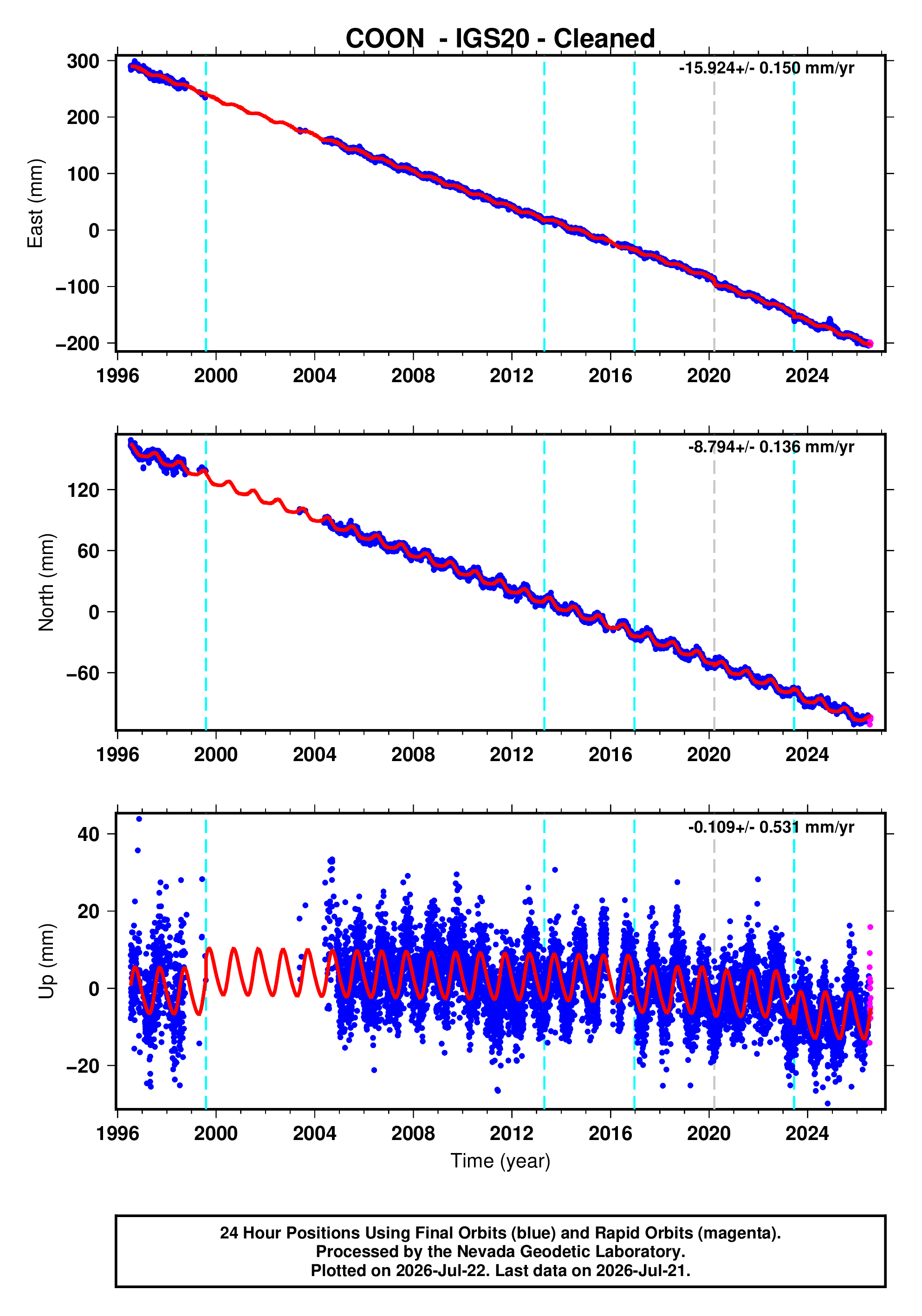

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot
Load prediction plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
COON99AUG03 Radome_Code_Changed - -
COON13APR25 Antenna_and_Radome_Codes_Changed - -
COON23JUN13 Antenna_Code_Changed - -
COON23JUN13 Receiver_Make_and_Model_Changed - -
COON20MAR18 uu60363602 5.7 11.5
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
