MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : CN23

Station operator information from: RINEX headers

Data attribution information from: UNAVCO DOI Database

from DOI link: https://doi.org/10.7283/T5Q23XJH

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 17.261 degrees

Longitude: -88.779 degrees

Height: 55.303 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

NA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

TIKA

88.61 km

ELEN

121.91 km

POPT

123.84 km

CHET

146.37 km

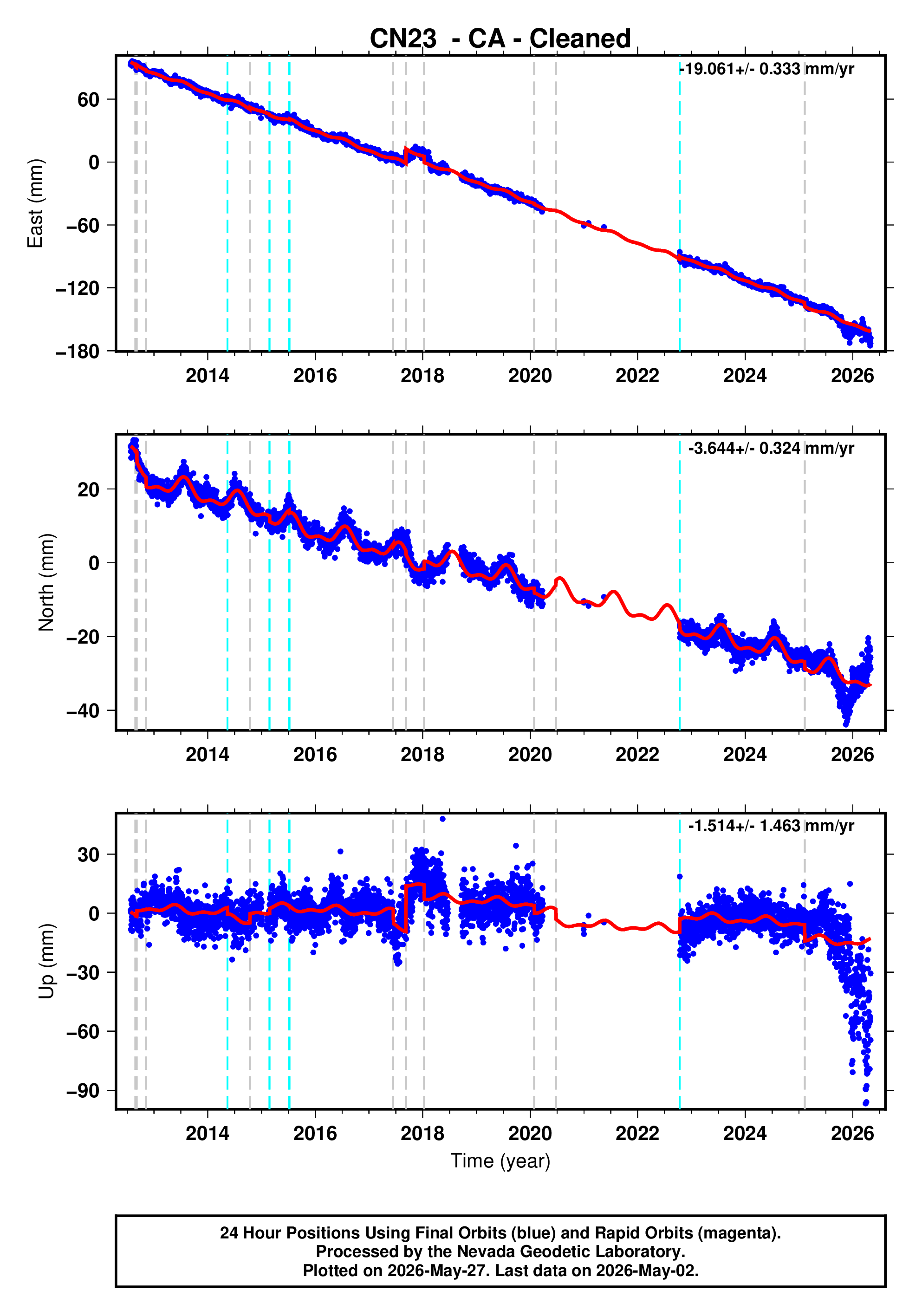

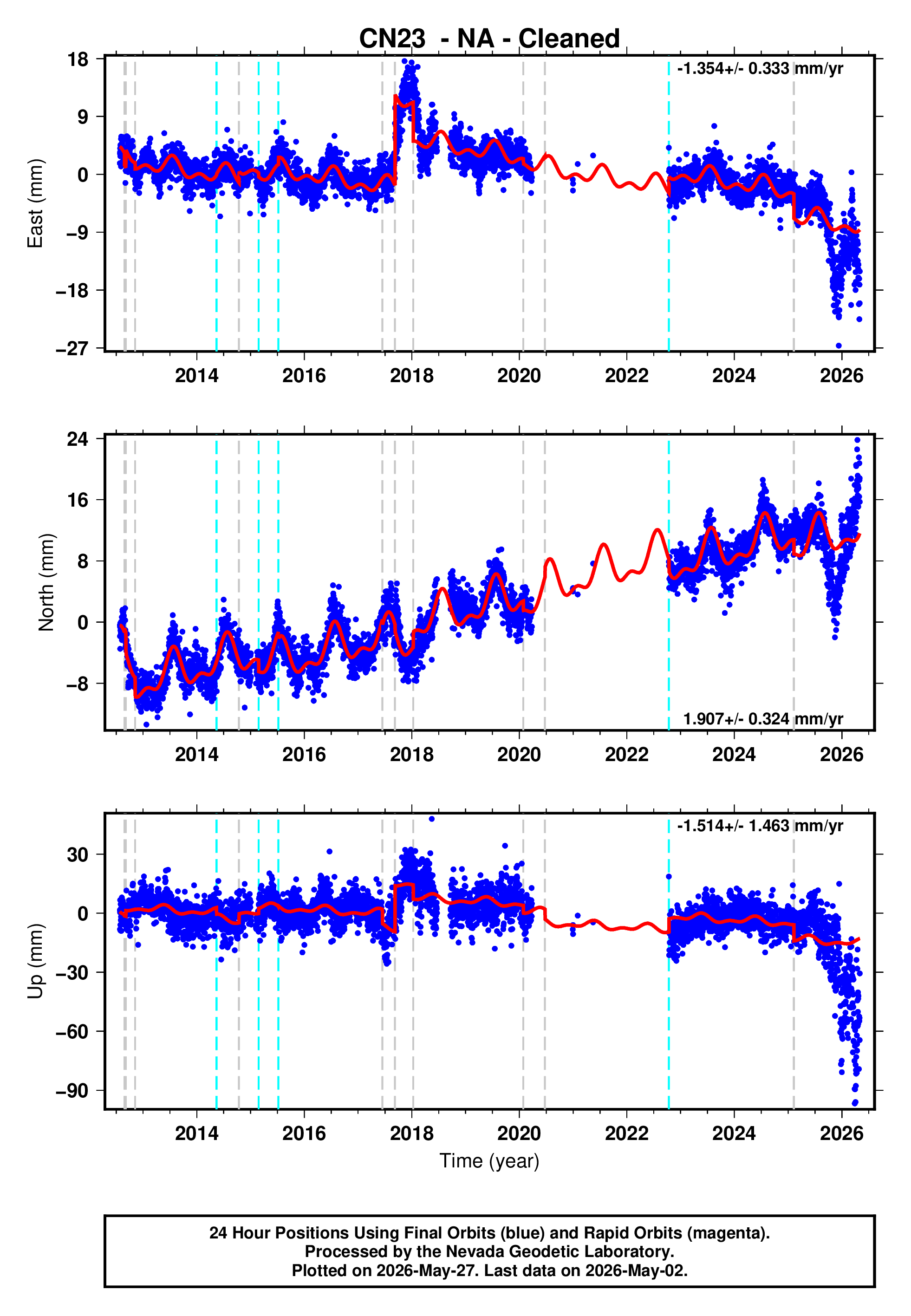

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

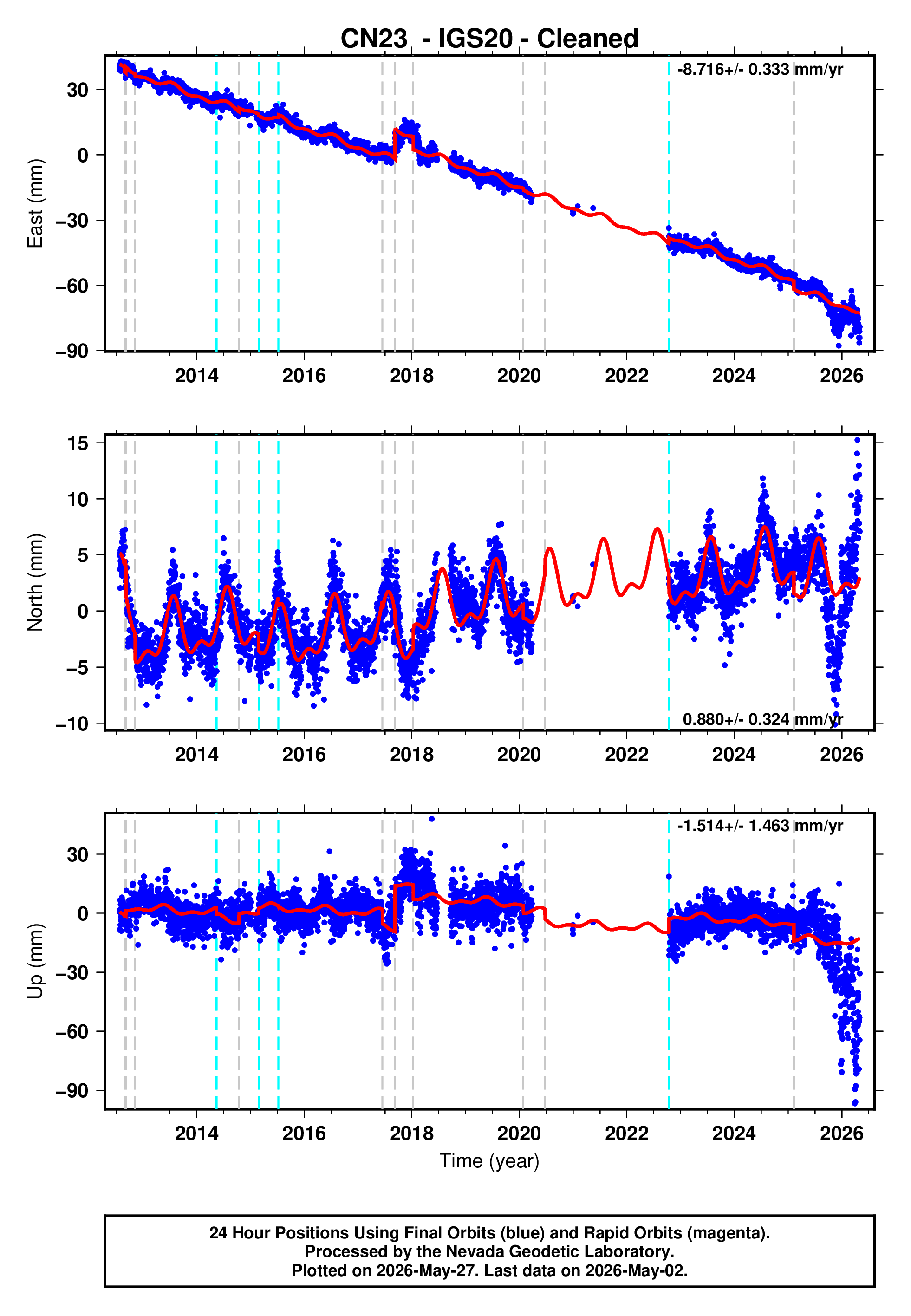

GPS time series plot
GPS time series plot

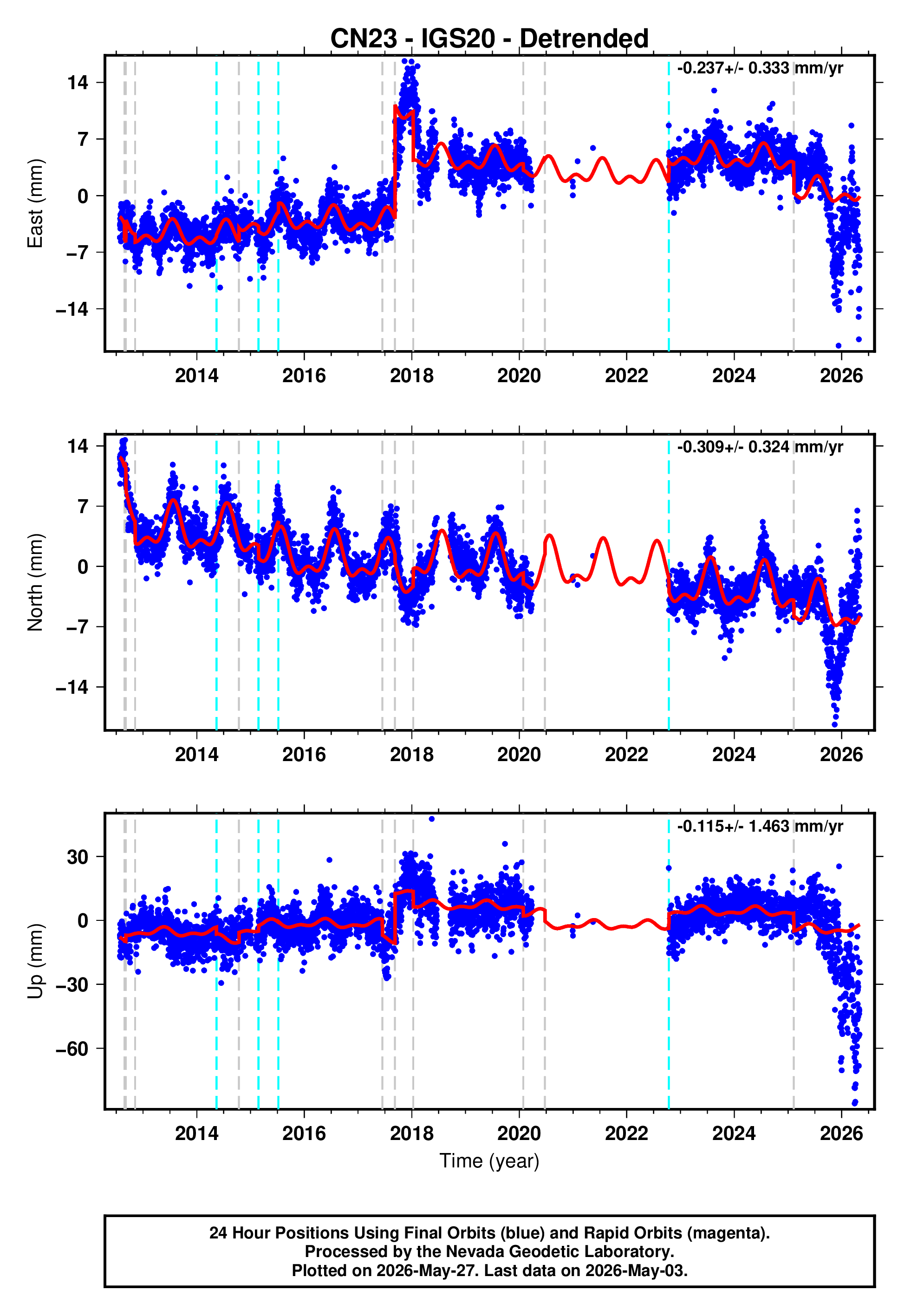

GPS time series plot

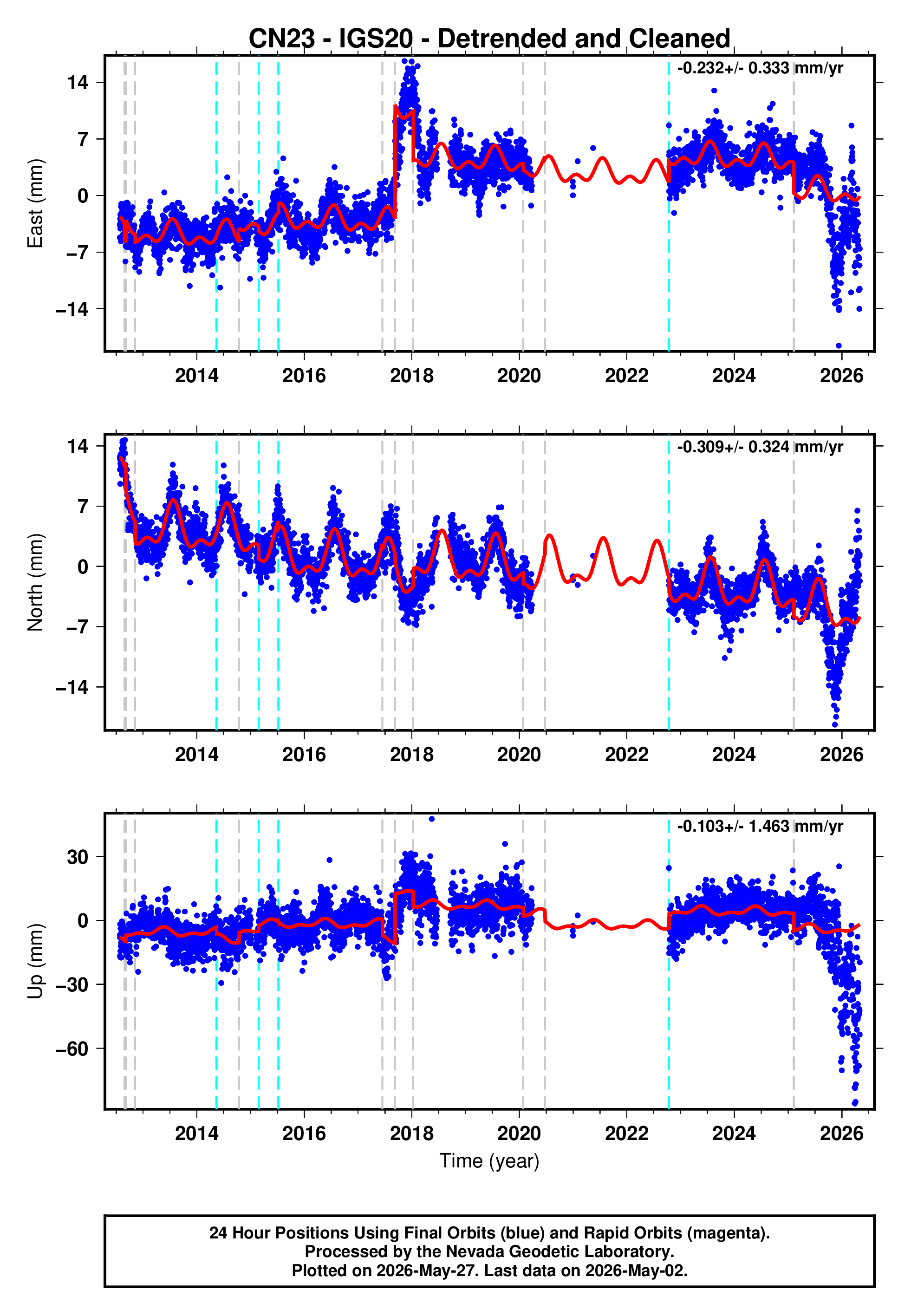

GPS time series plot

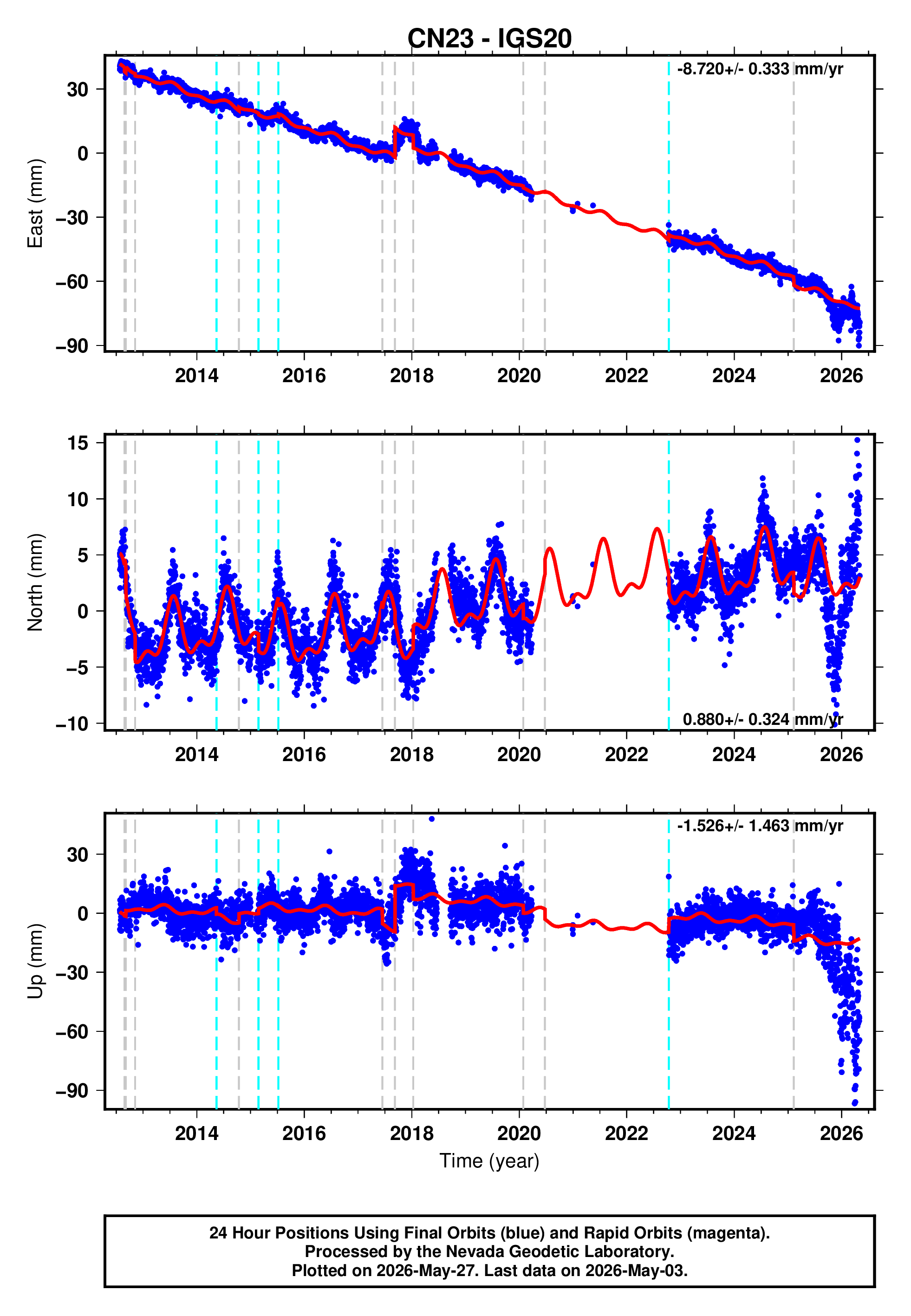

GPS time series plot
GPS time series plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
CN2315FEB24 Antenna_Code_Changed - -
CN2315JUL09 Radome_Code_Changed - -
CN2312AUG27 usp000jqvm 7.3 569.9
CN2312SEP05 usp000jrsw 7.6 881.2
CN2312NOV07 usp000jv5f 7.4 493.7
CN2314OCT14 usb000slwn 7.3 531.1
CN2317JUN14 us20009mbt 6.9 433.0
CN2317SEP08 us2000ahv0 8.2 600.9
CN2318JAN10 us1000c2zy 7.5 558.6
CN2320JAN28 us60007idc 7.7 1084.5
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
