MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : CGUI

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 12.976 degrees

Longitude: -87.559 degrees

Height: 746.100 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

CA

tenv3

NA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

CN21

49.51 km

SLOR

51.50 km

SCW2

66.09 km

JCFI

85.62 km

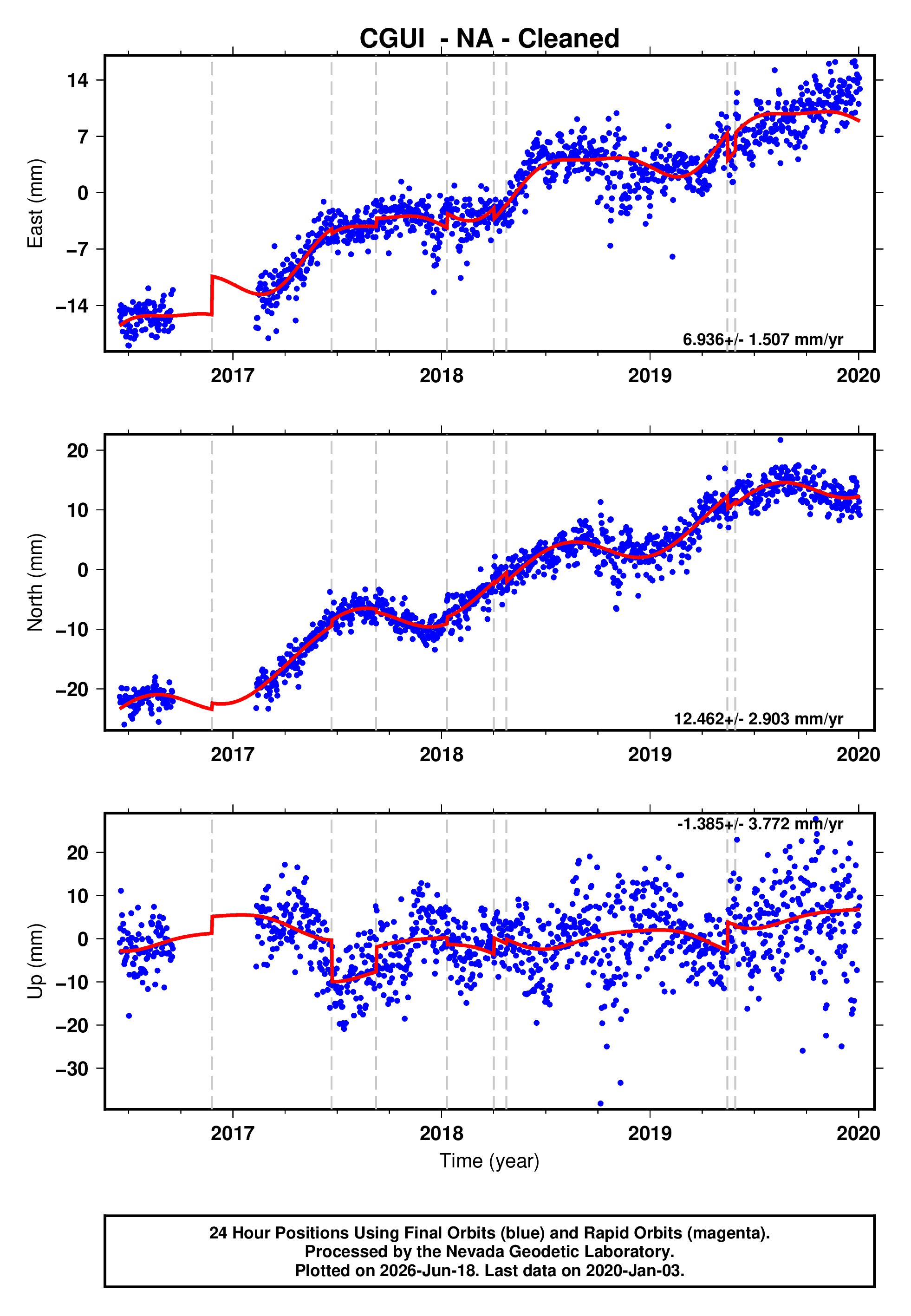

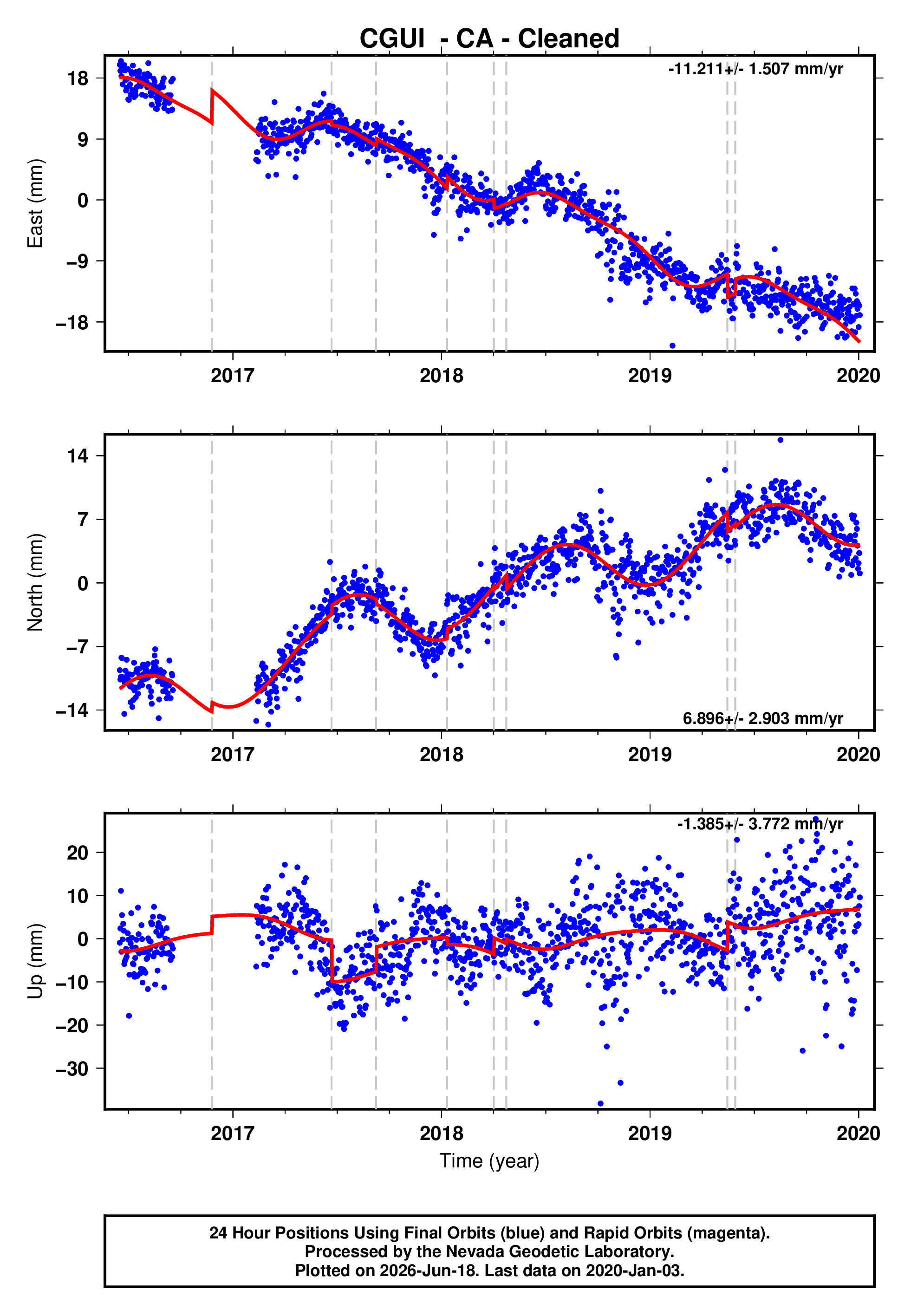

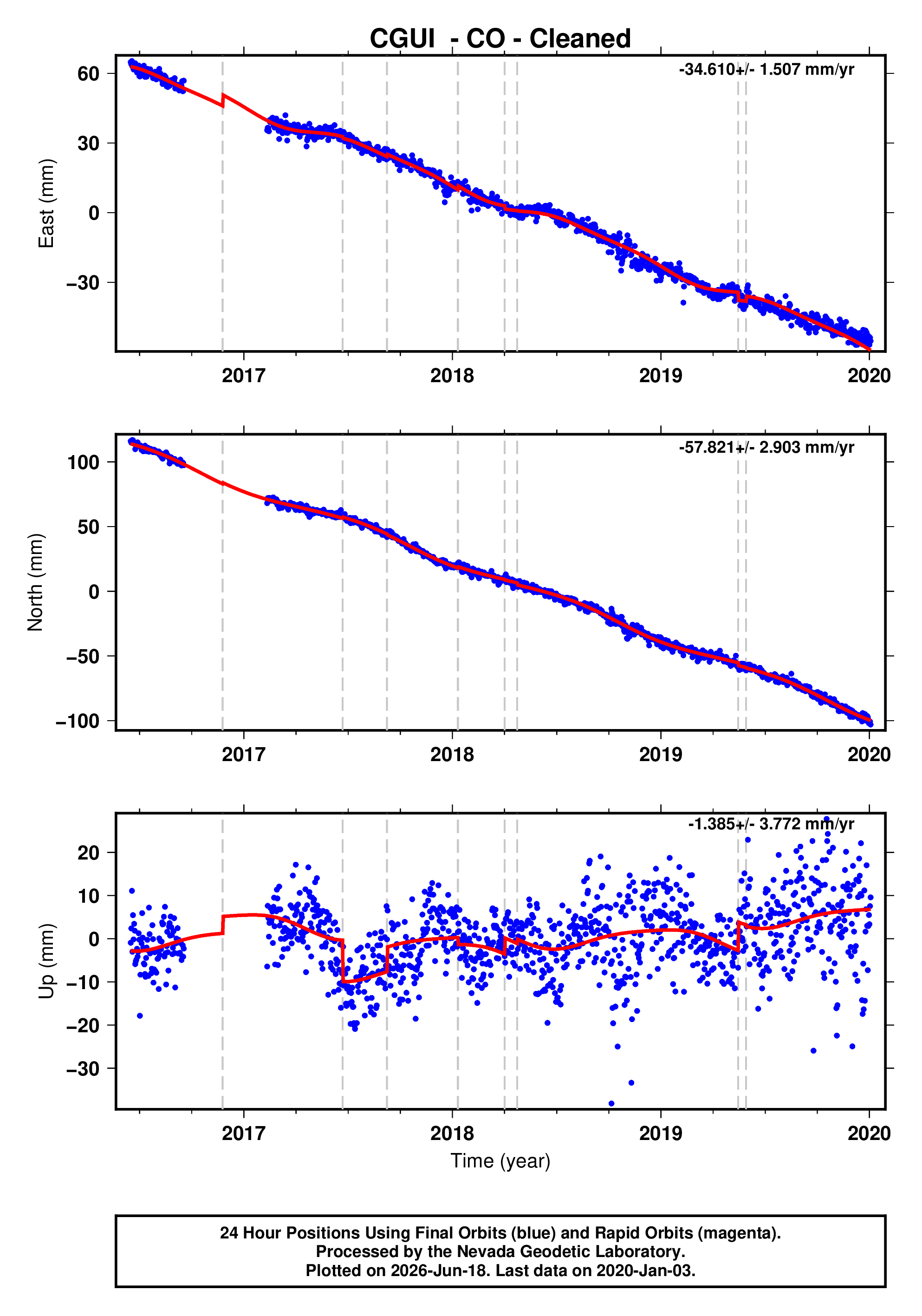

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

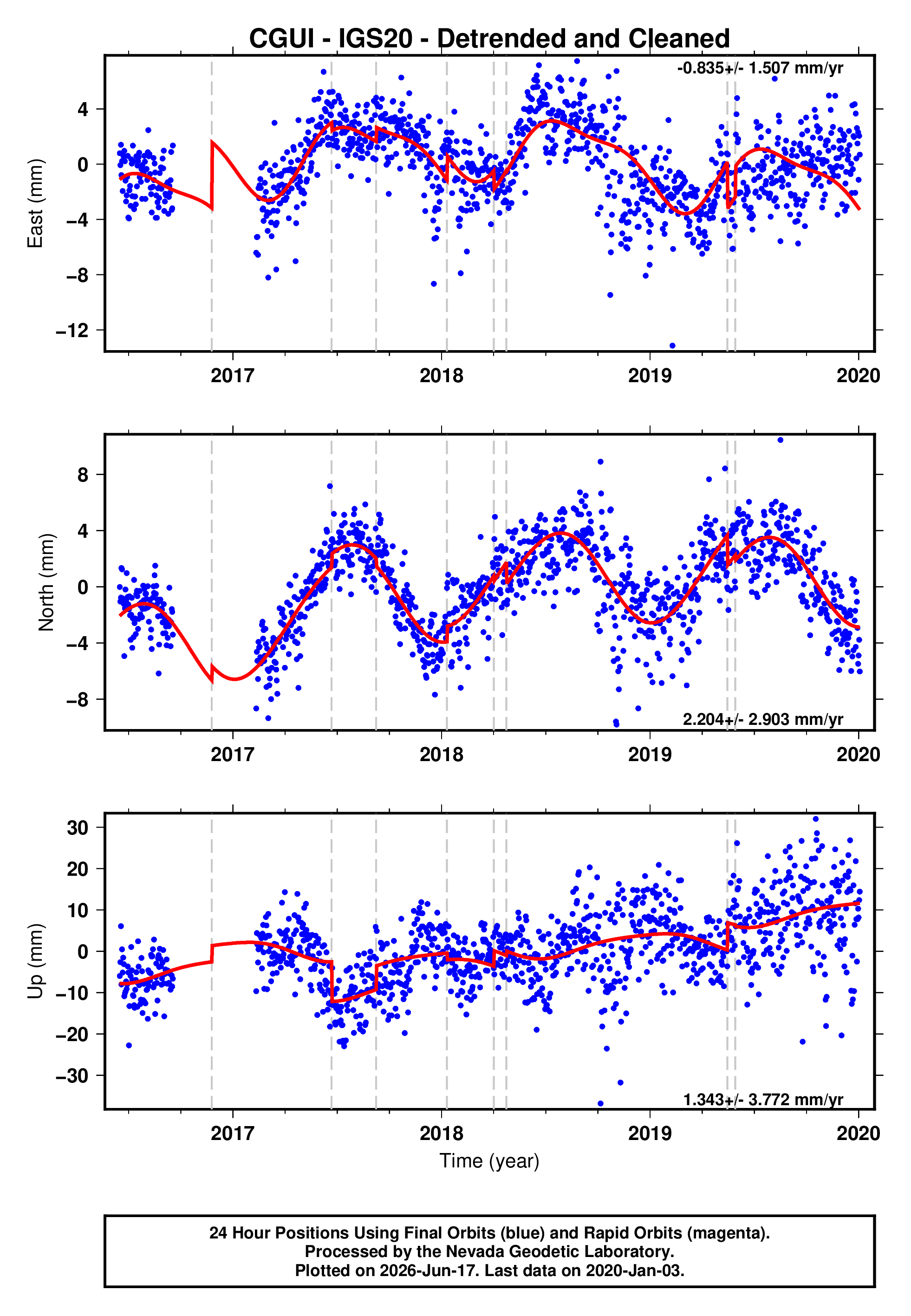

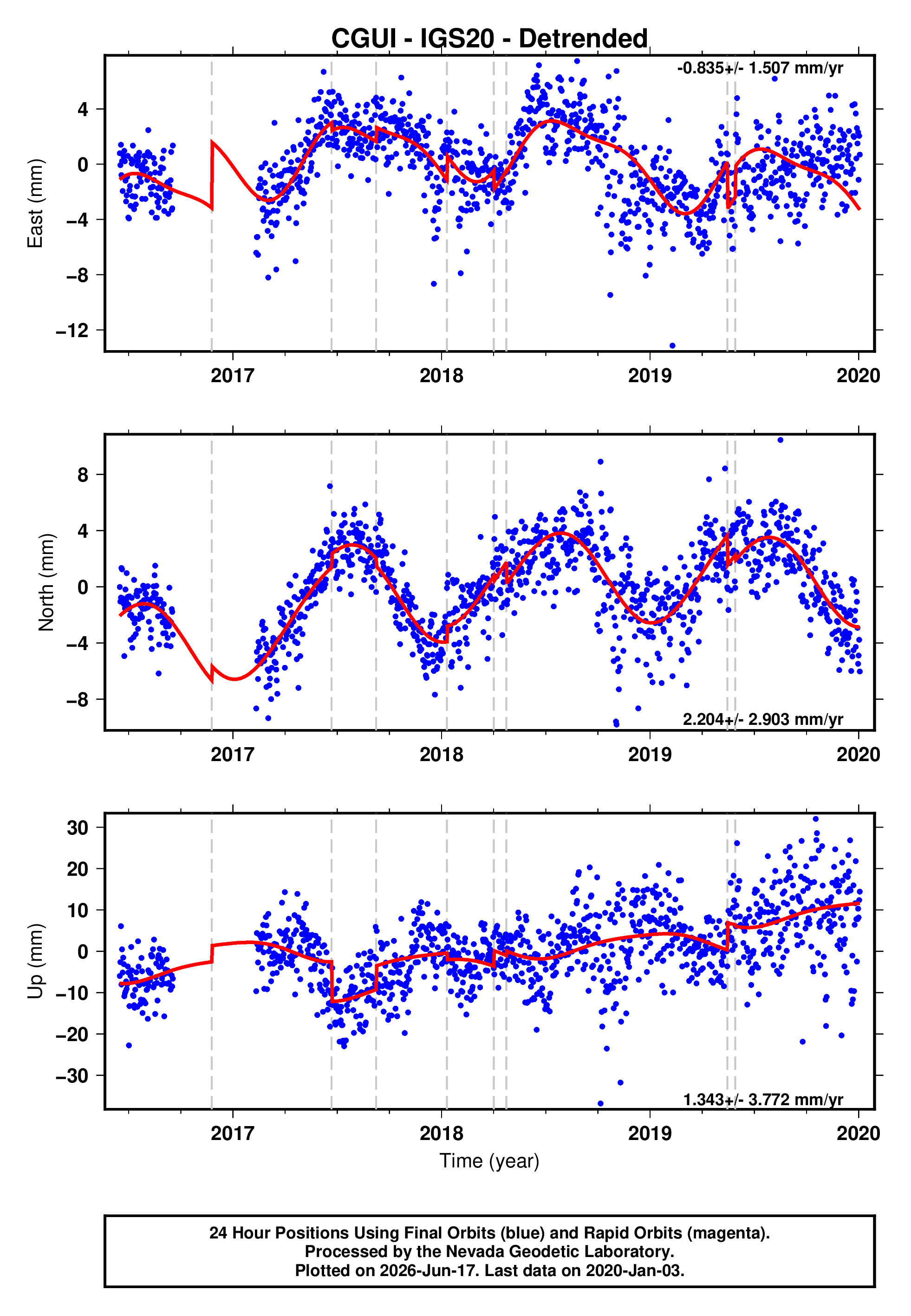

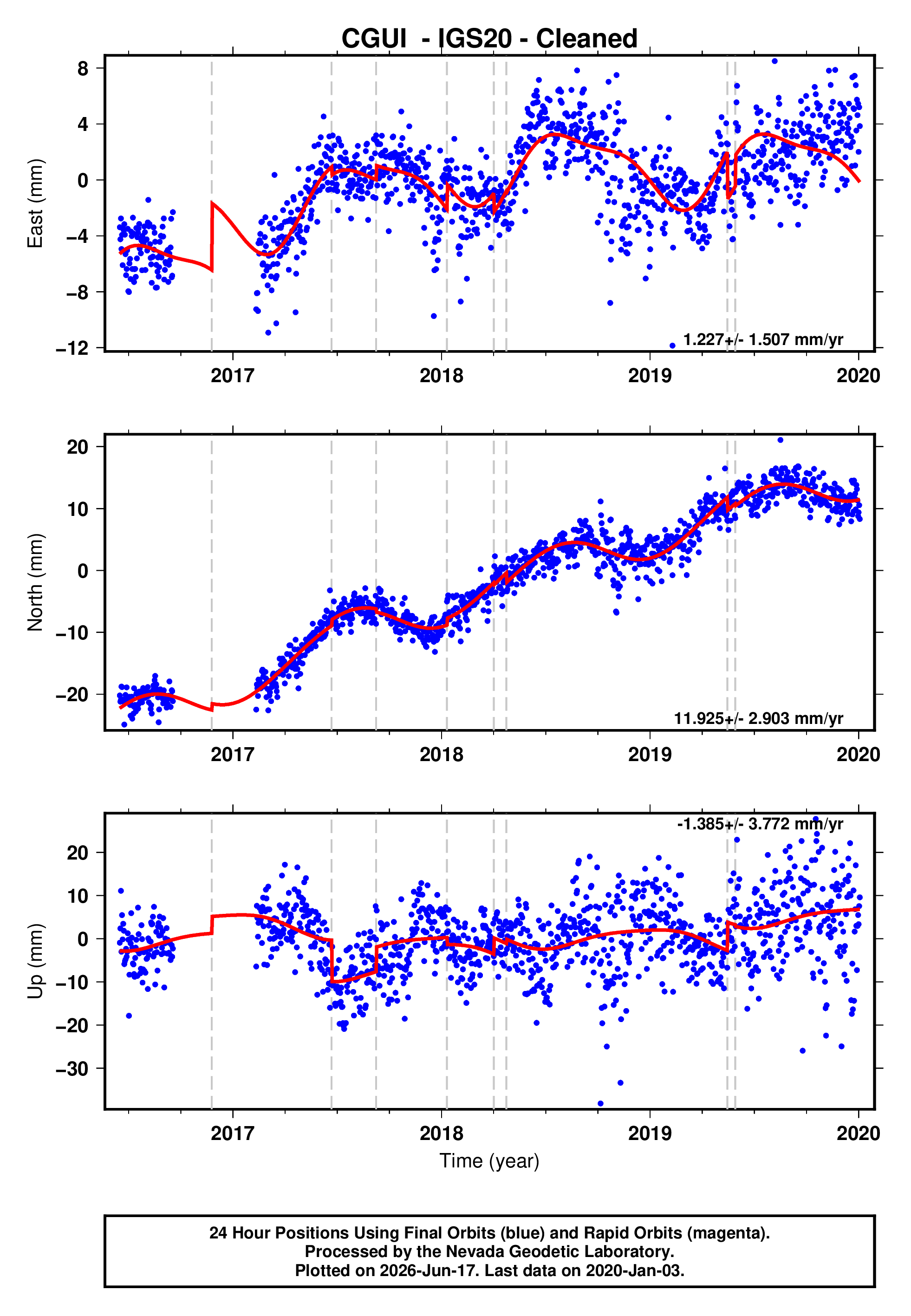

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
CGUI16NOV24 us10007c4w 6.9 187.5
CGUI17JUN22 us20009p1a 6.8 378.3
CGUI17SEP08 us2000ahv0 8.2 720.9
CGUI18JAN10 us1000c2zy 7.5 662.3
CGUI18APR02 us1000dcru 5.9 122.6
CGUI18APR24 us1000dr32 5.6 57.5
CGUI19MAY16 us70003m2q 5.9 46.4
CGUI19MAY30 us70003t2n 6.6 190.8
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
