MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : BNET

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.


Latitude: -43.862

Longitude: 170.190

Height: 757.823 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS08

env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env
env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)

env

ftp link

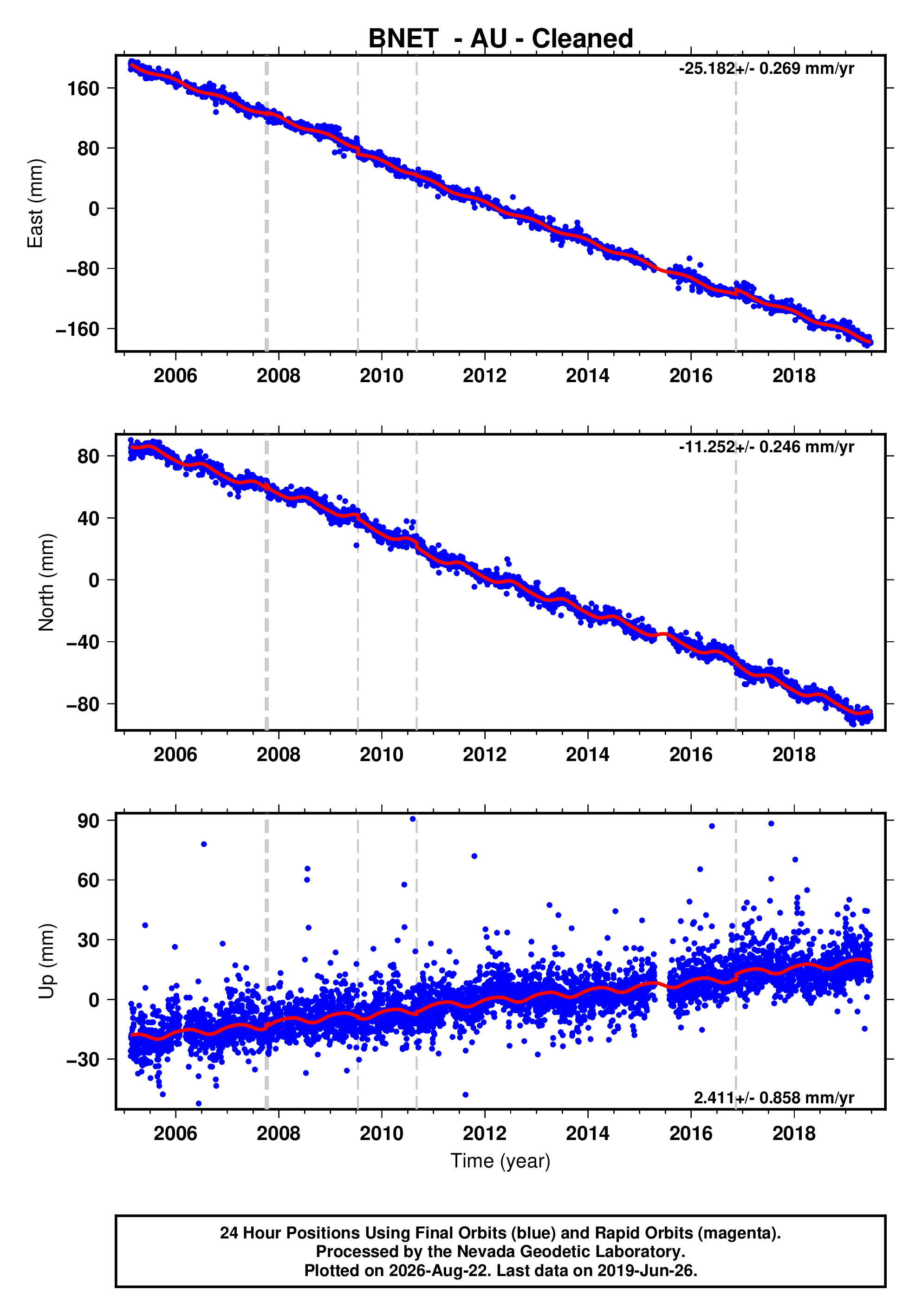

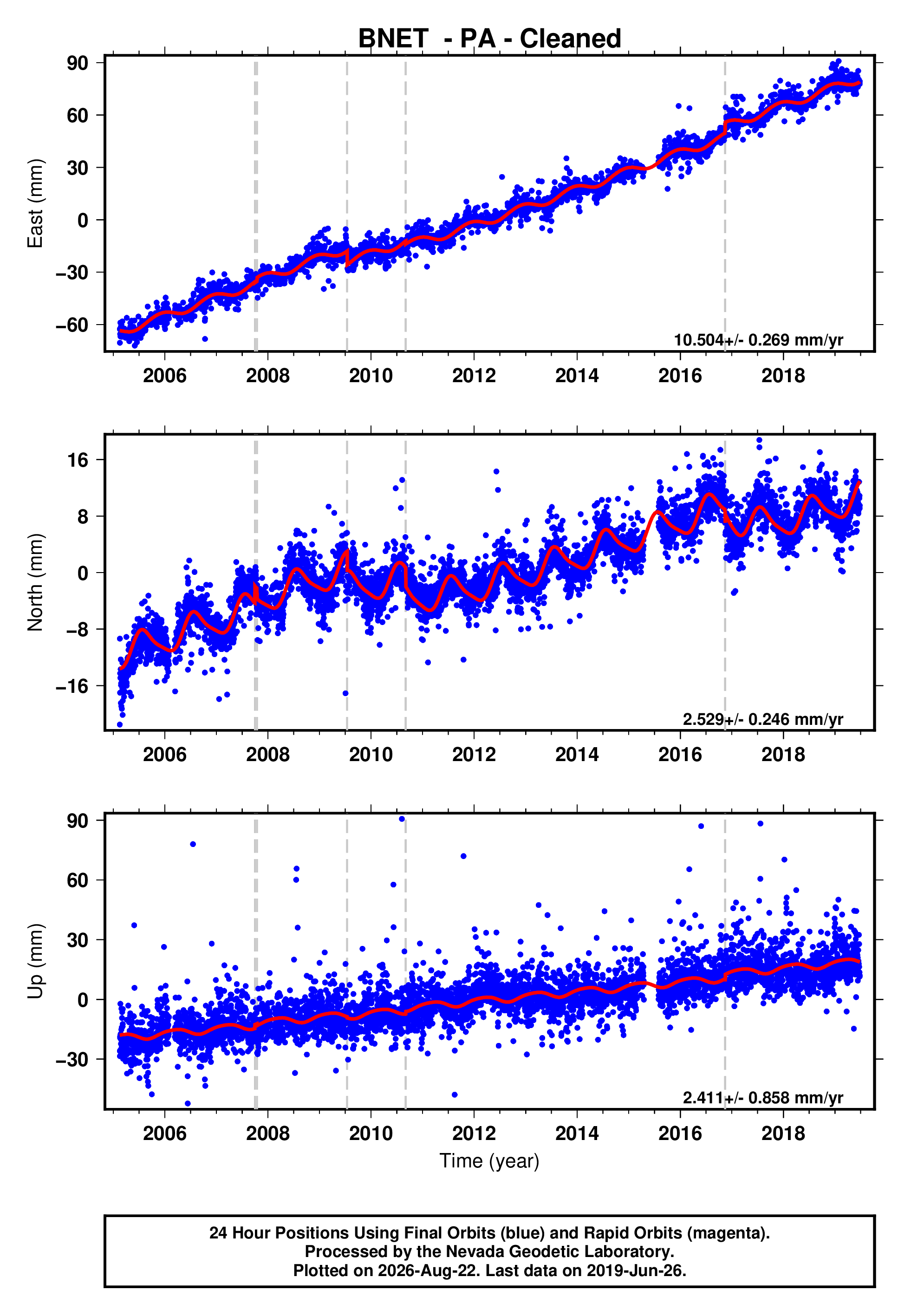

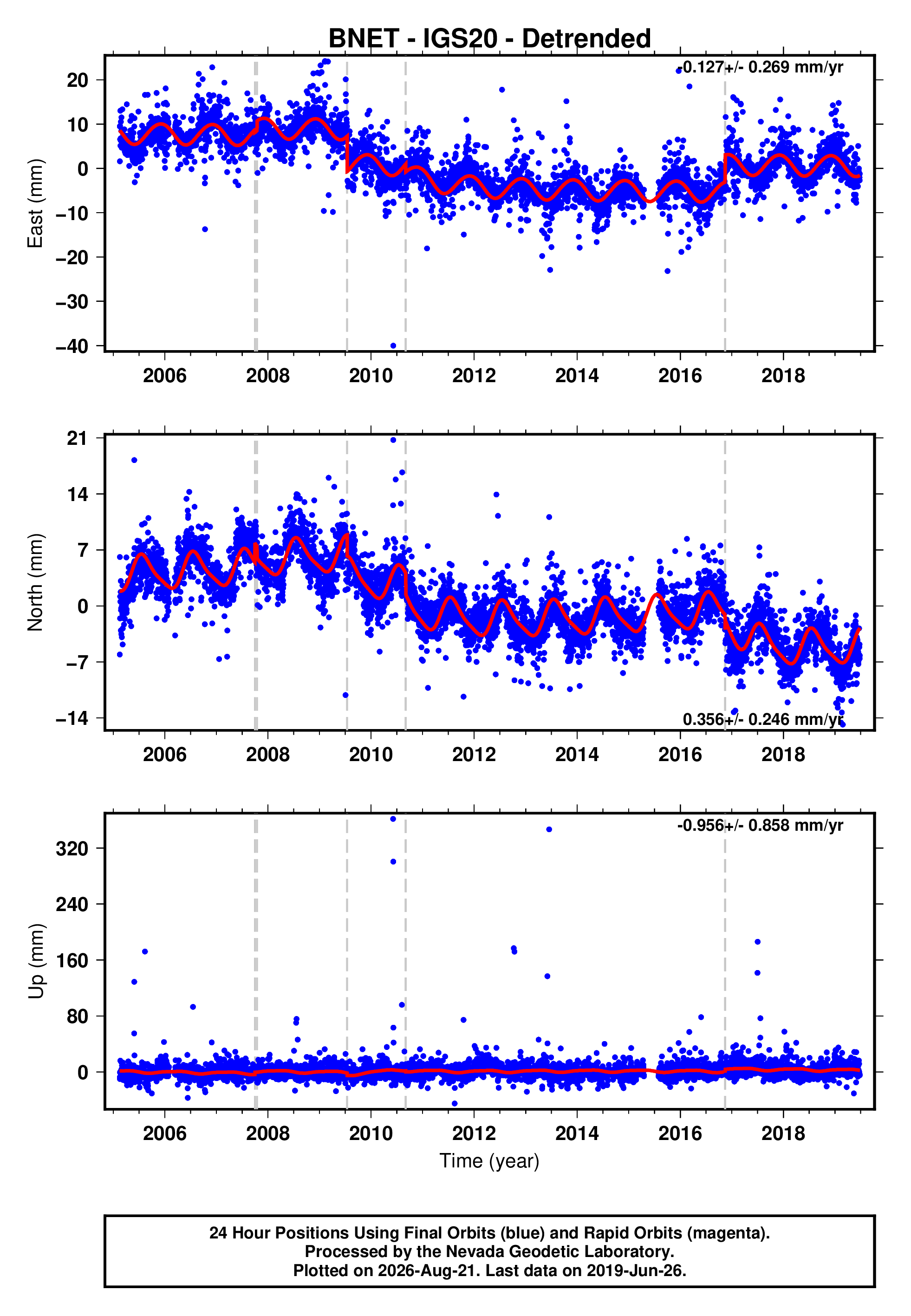

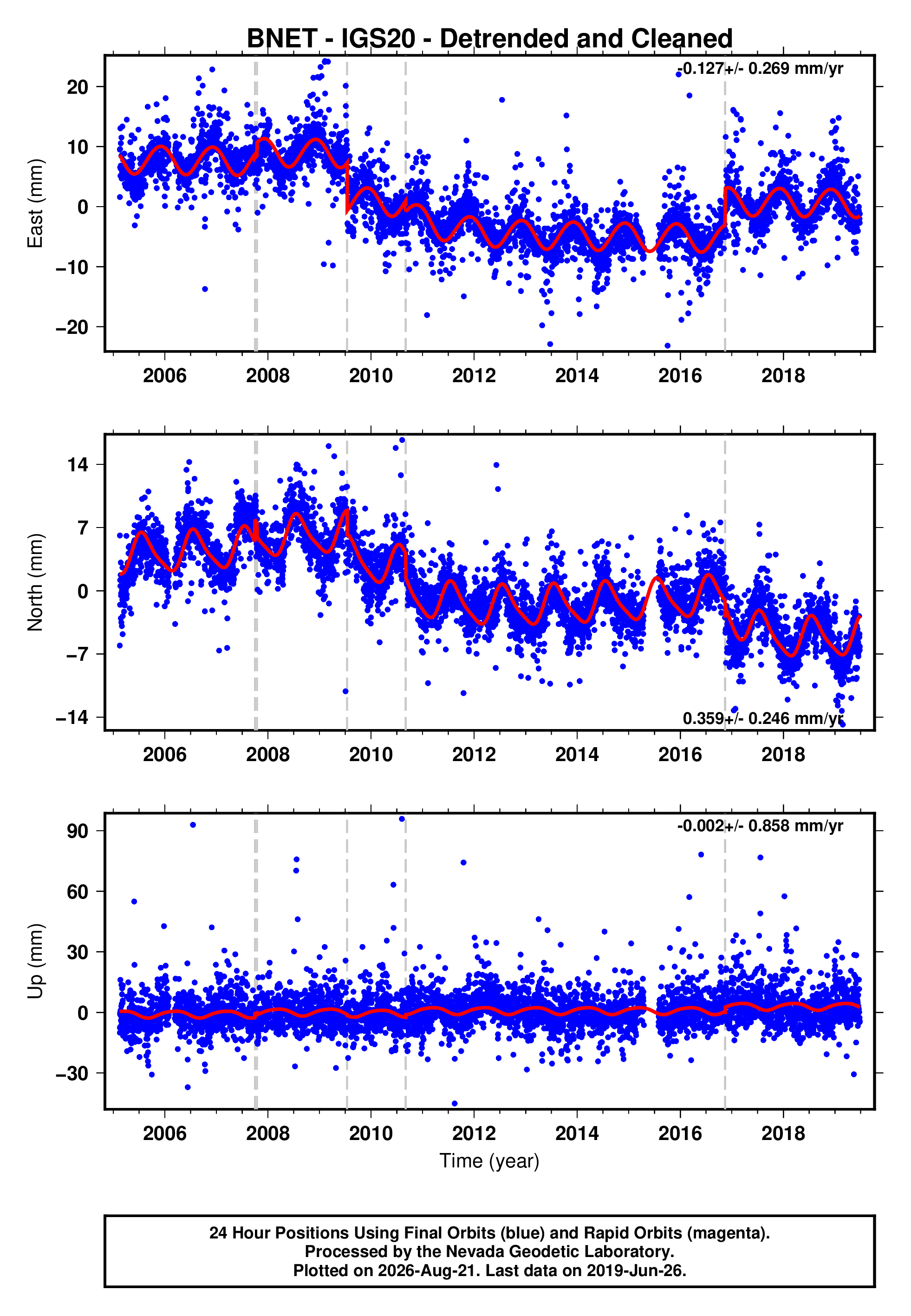

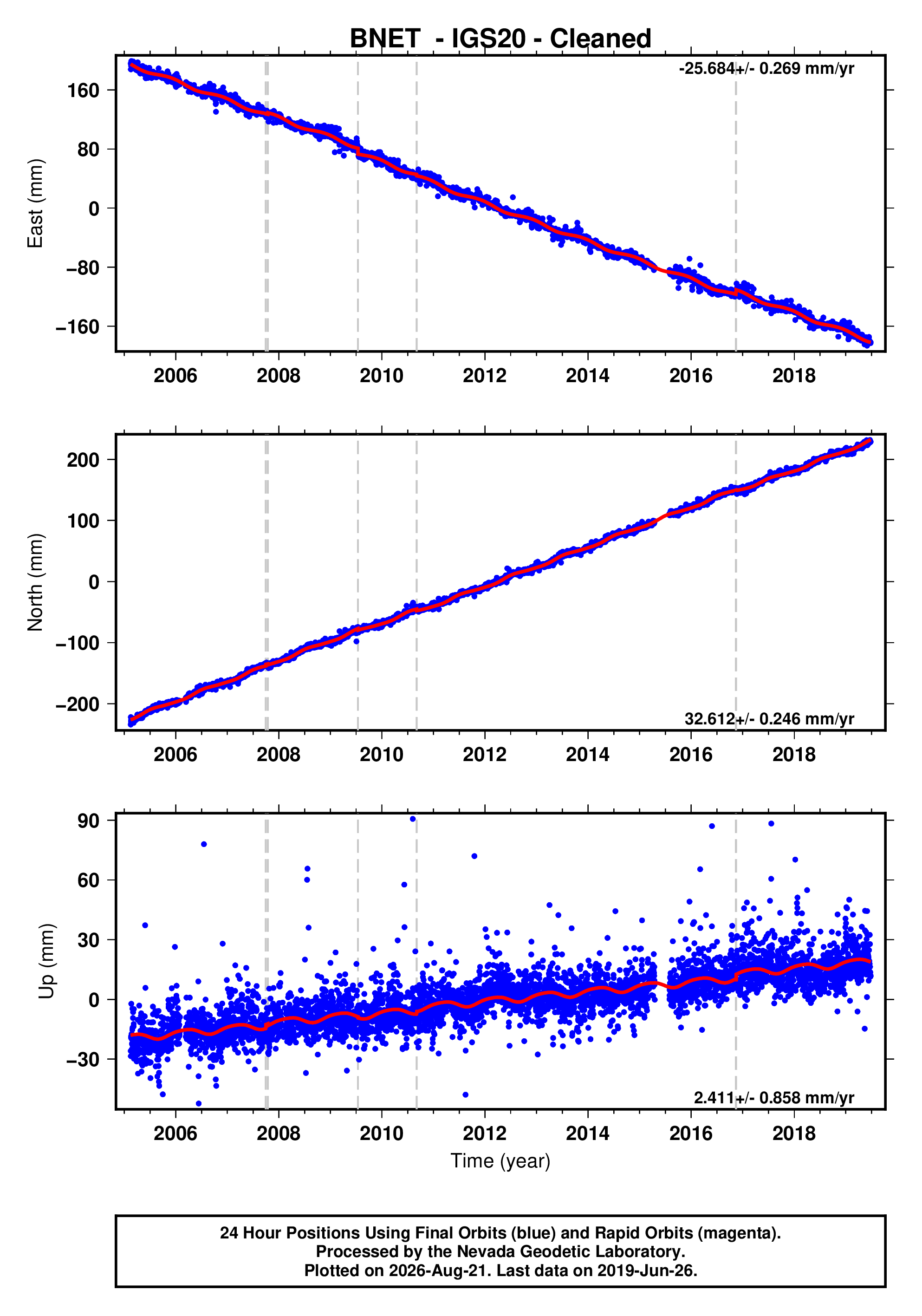

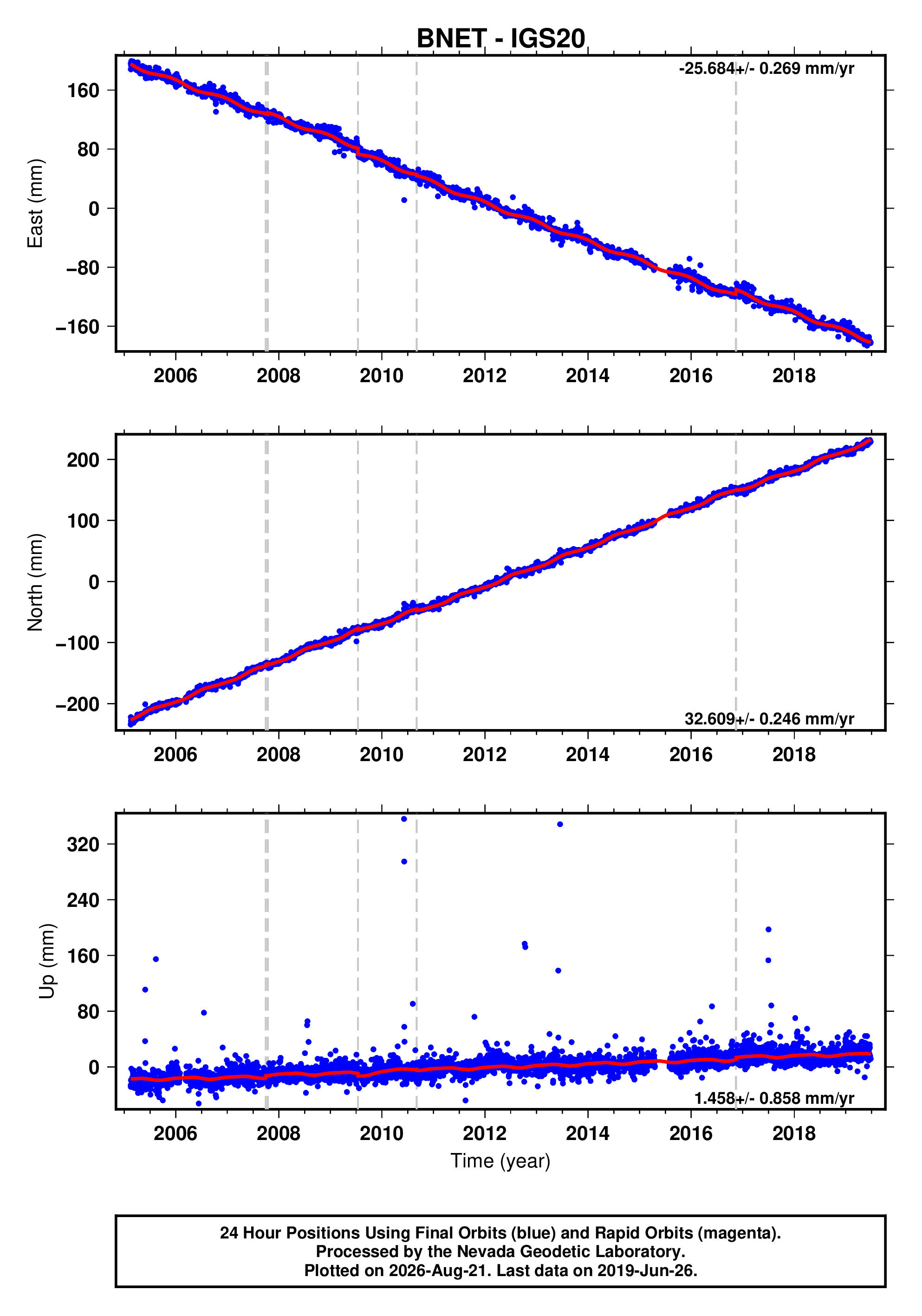

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
BNET12SEP01 Receiver_Type_Changed - -
BNET07SEP30 usp000fpgq 7.4 759.3
BNET07OCT15 usp000fqks 6.8 234.0
BNET09JUL15 usp000gz8j 7.8 355.6
BNET10SEP03 usp000hk46 7.0 137.2
BNET16NOV13 us1000778i 7.8 263.4
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
