MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : AUTN

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 46.954 degrees

Longitude: 4.289 degrees

Height: 353.615 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

EU

env

24 Hour Rapid Solutions

IGS14

env

EU

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

AUT2

2.24 km

ARLD

24.96 km

CACI

29.34 km

GUEU

42.70 km

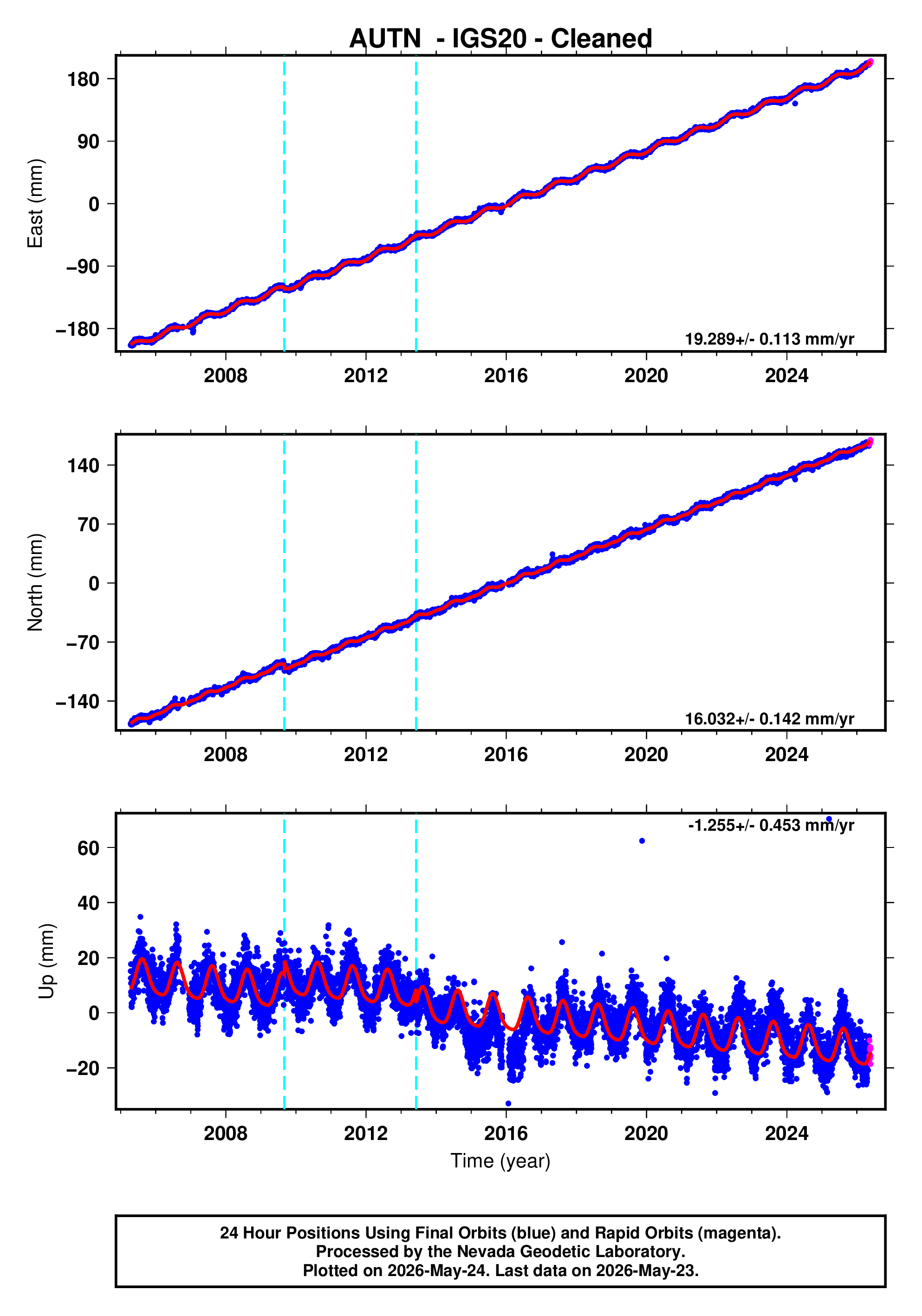

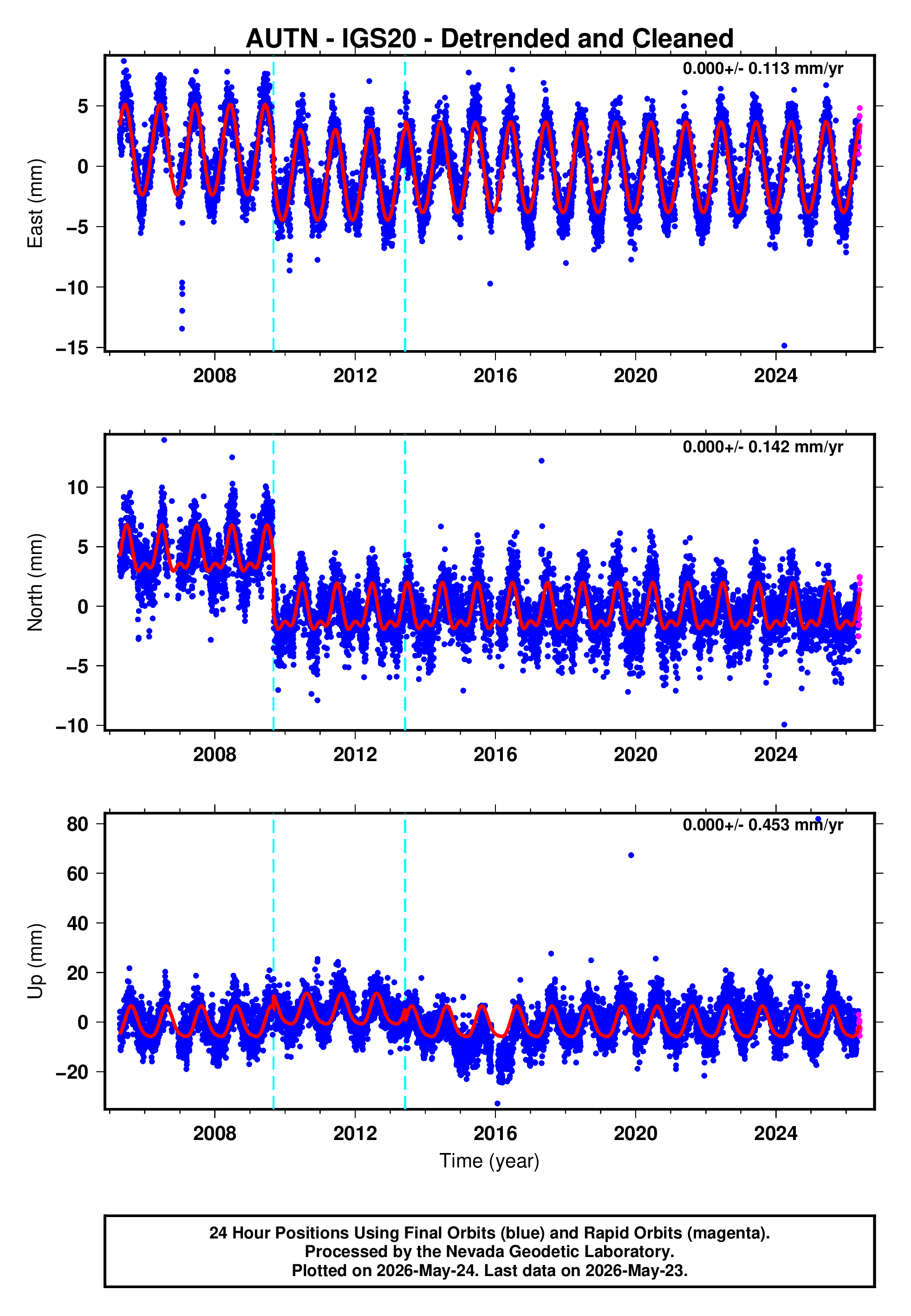

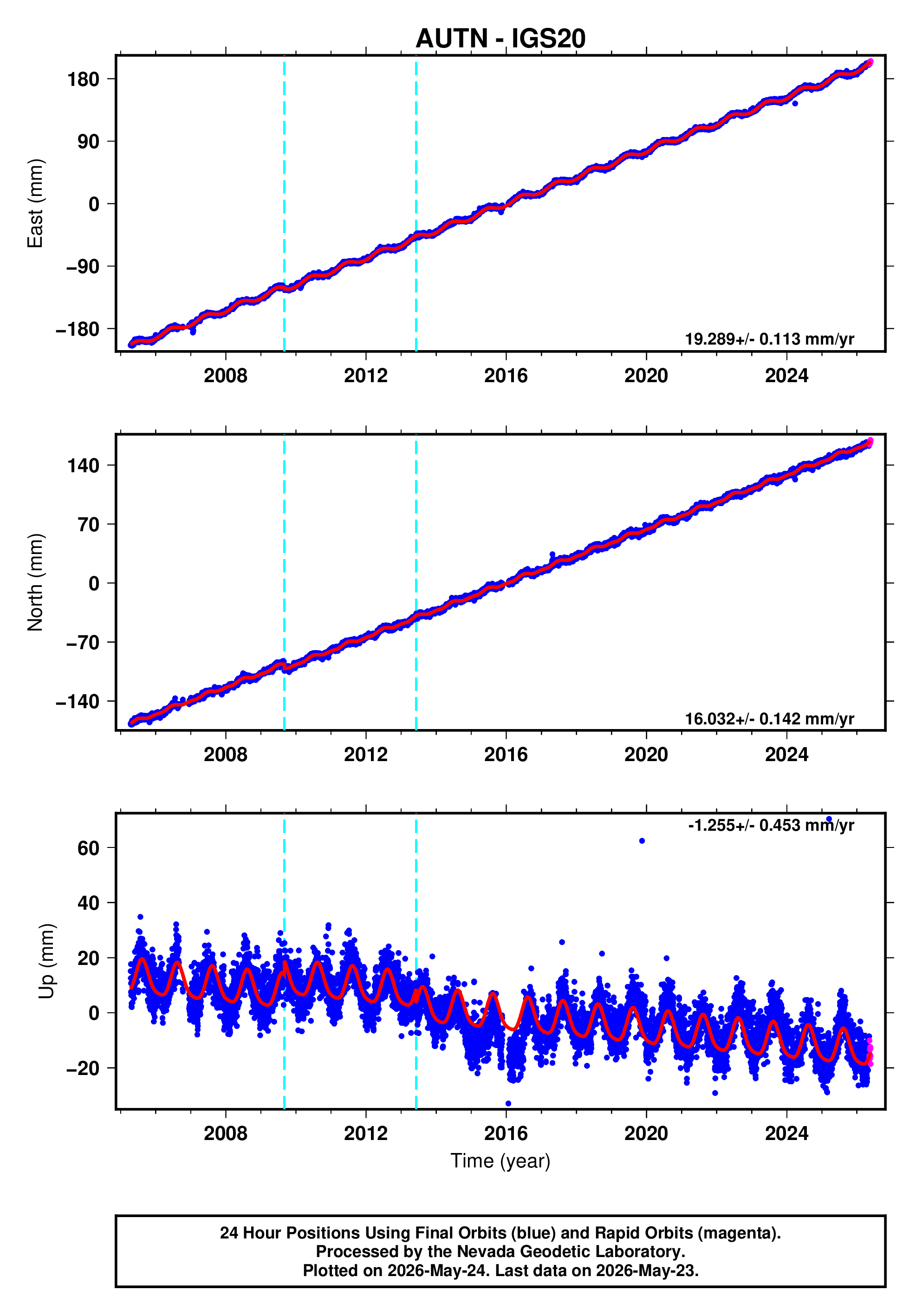

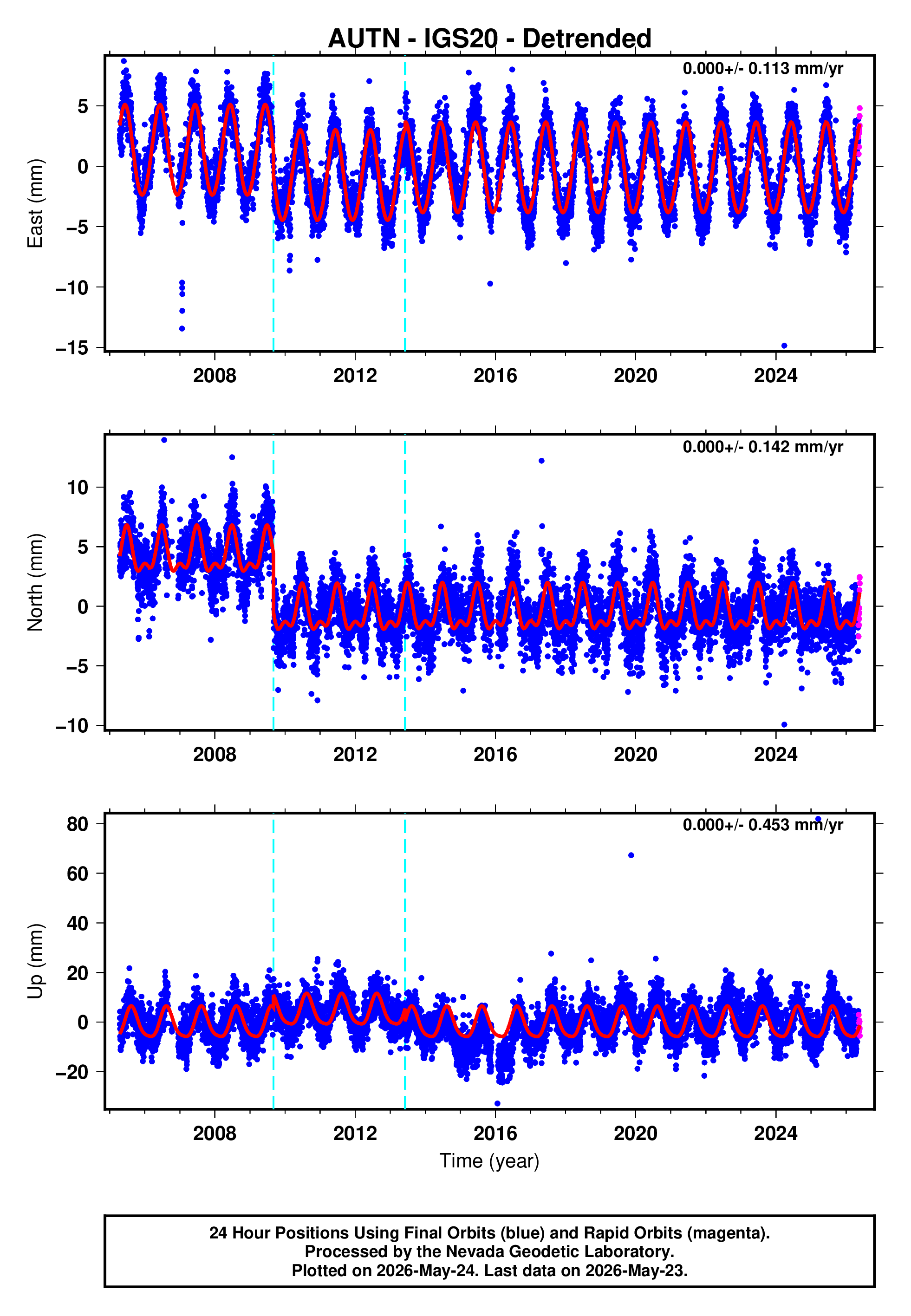

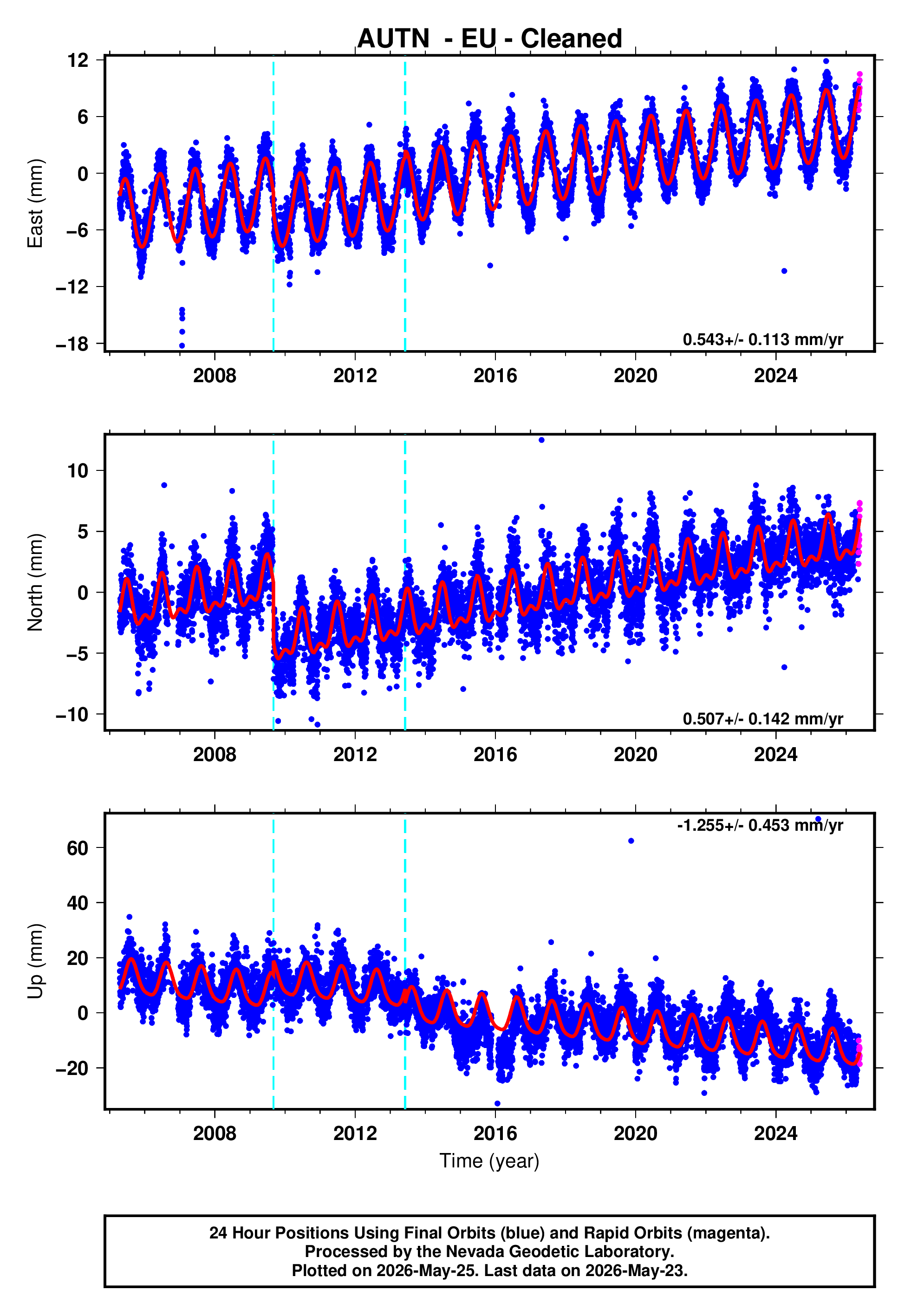

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
AUTN09SEP02 Antenna_and_Radome_Codes_Changed - -
AUTN09SEP02 Elevation_Cutoff_Changed - -
AUTN09SEP02 Receiver_Make_and_Model_Changed - -
AUTN13JUN05 Antenna_Code_Changed - -
AUTN13JUN05 Elevation_Cutoff_Changed - -
AUTN13JUN05 Receiver_Make_and_Model_Changed - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
