MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : AREG

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: -16.465 degrees

Longitude: -71.493 degrees

Height: 2489.358 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

SA

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

SA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

AREV

0.02 km

AREQ

0.02 km

CRBR

66.98 km

TQPL

129.95 km

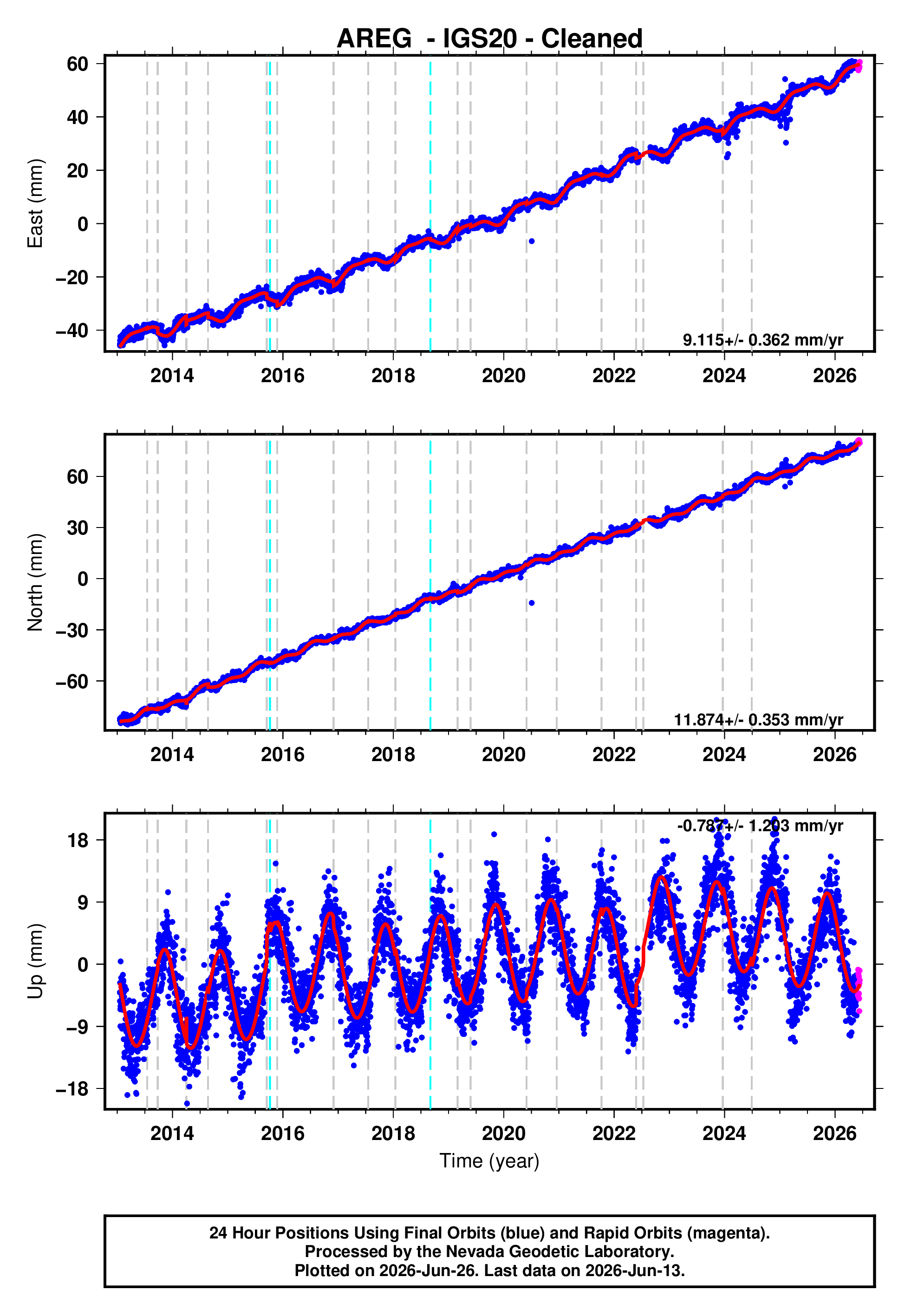

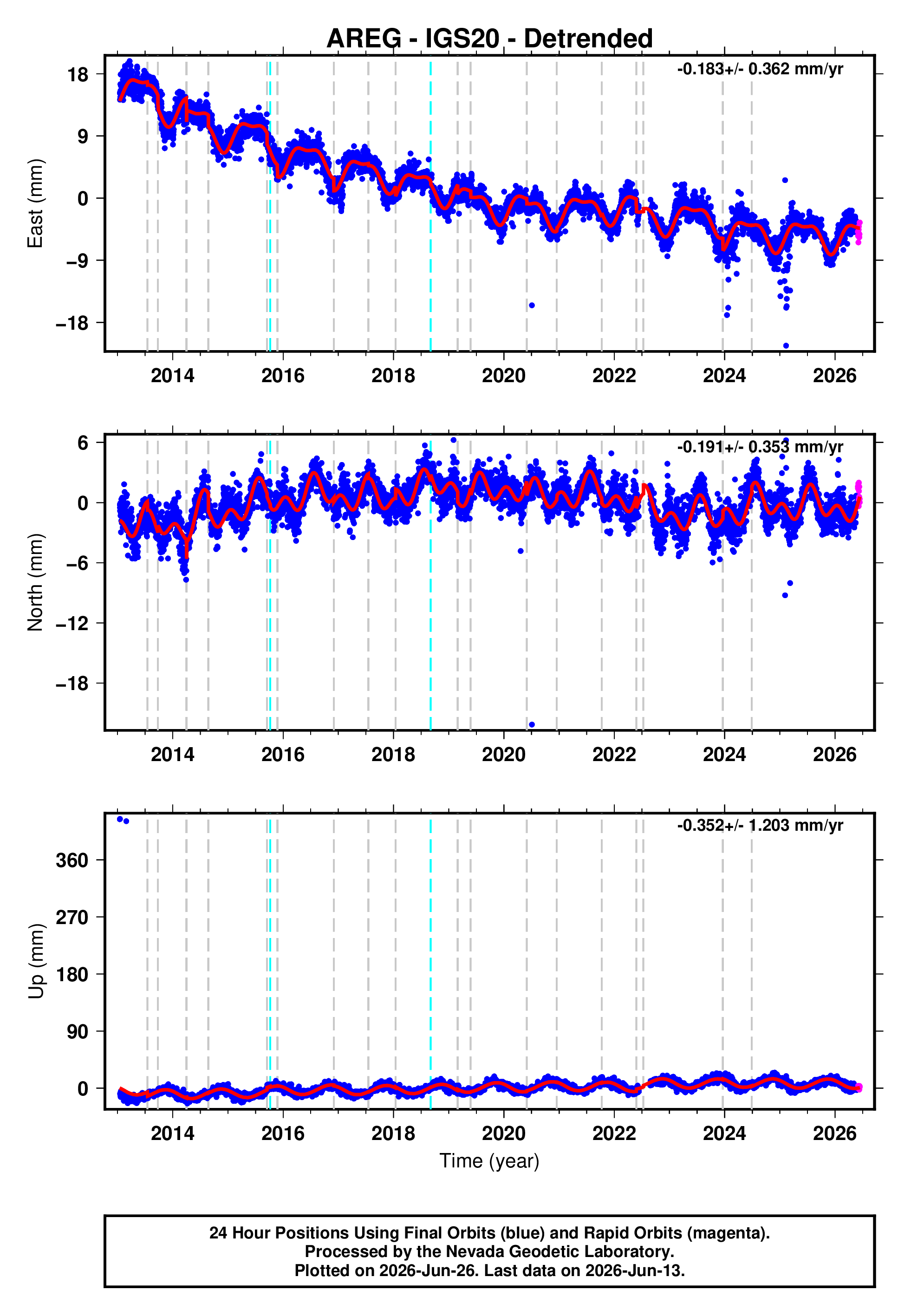

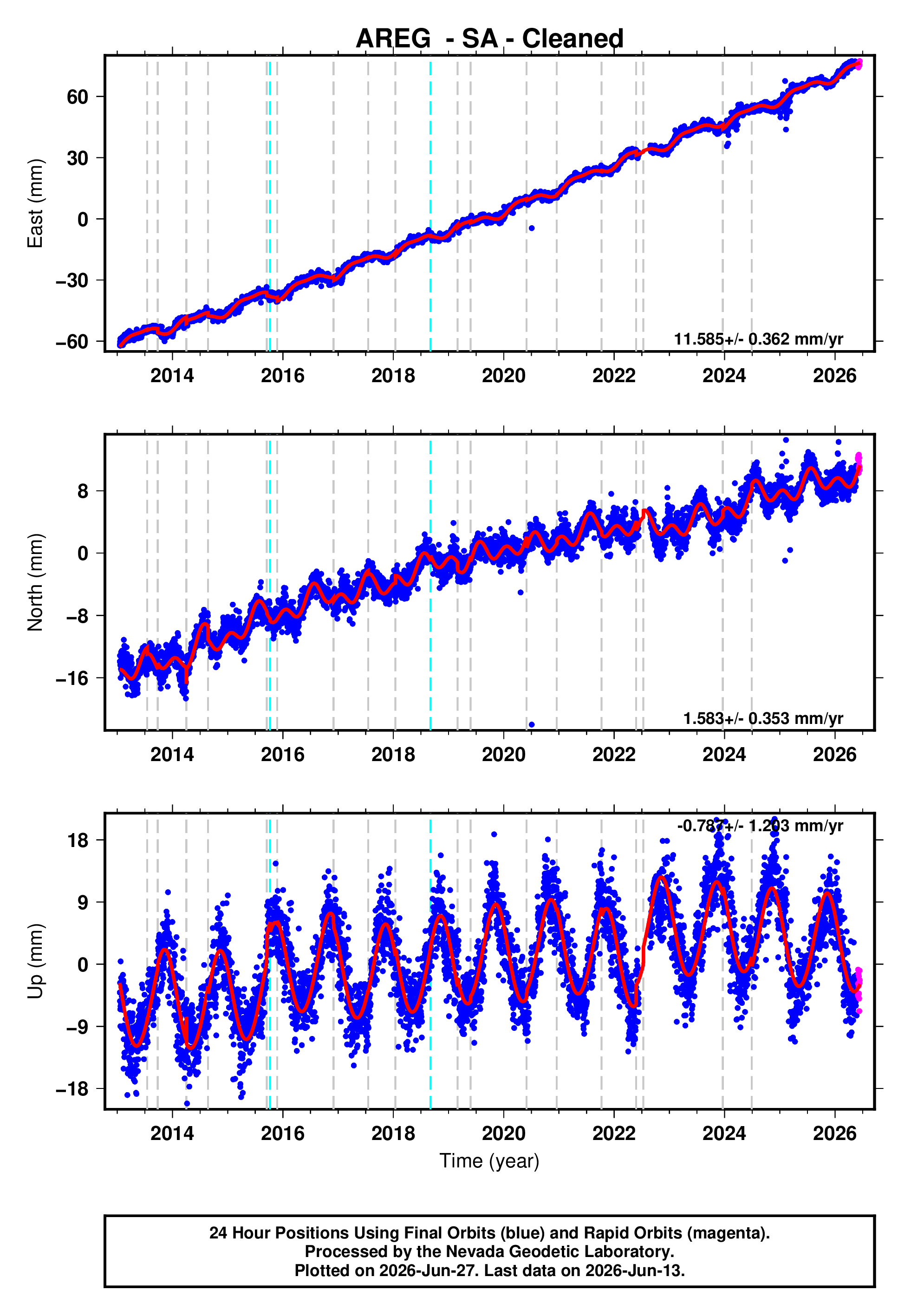

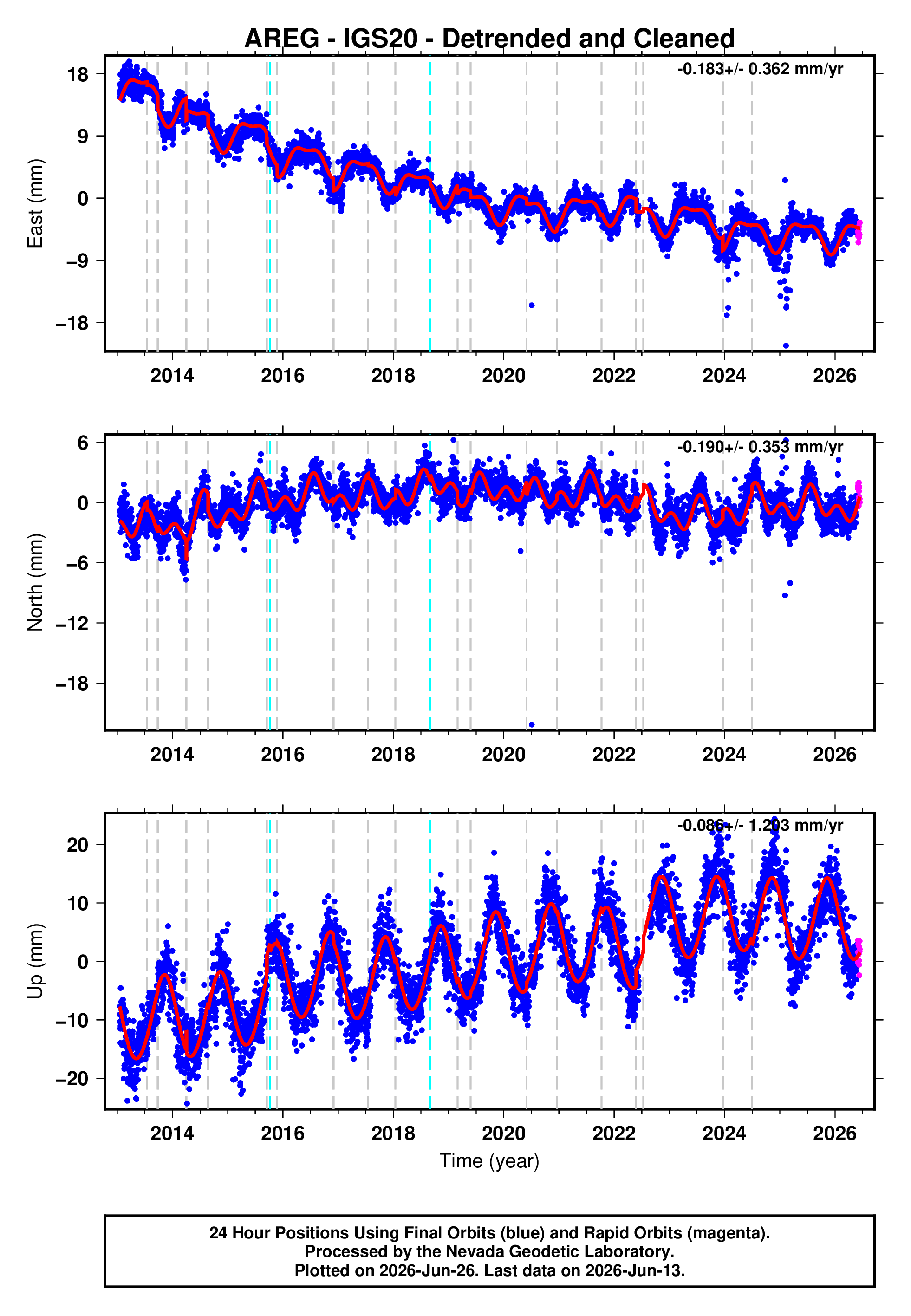

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
AREG15OCT08 Elevation_Cutoff_Changed - -
AREG18SEP03 Receiver_Make_and_Model_Changed - -
AREG13JUL17 usb000ifva 6.0 93.7
AREG13SEP25 usb000jzma 7.1 329.8
AREG14APR01 usc000nzvd 8.2 357.9
AREG14APR01 usc000nzwm 6.9 385.5
AREG14APR03 usc000p27i 7.7 468.5
AREG14AUG24 usb000s5x1 6.8 304.5
AREG15SEP16 us20003k7a 8.3 1680.0
AREG15NOV24 us100040ww 7.6 661.9
AREG15NOV24 us100040x6 7.6 714.1
AREG16DEC01 us10007e55 6.2 146.7
AREG17JUL18 us20009x7r 6.4 228.6
AREG18JAN14 us2000cjfy 7.1 352.2
AREG19MAR01 us1000j96d 7.0 241.9
AREG19MAY26 us60003sc0 8.0 1254.0
AREG20DEC16 us7000crmx 5.6 13.3
AREG21OCT09 us6000ft6j 5.7 105.0
AREG22MAY26 us7000hcmn 7.2 223.1
AREG22JUL12 us6000i1yw 5.5 45.6
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
