MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : ALBH

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 48.390 degrees

Longitude: -123.487 degrees

Height: 31.768 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

NA

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

NA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

AL2H

0.00 km

ALB4

0.02 km

BCES

6.17 km

BCLG

6.45 km

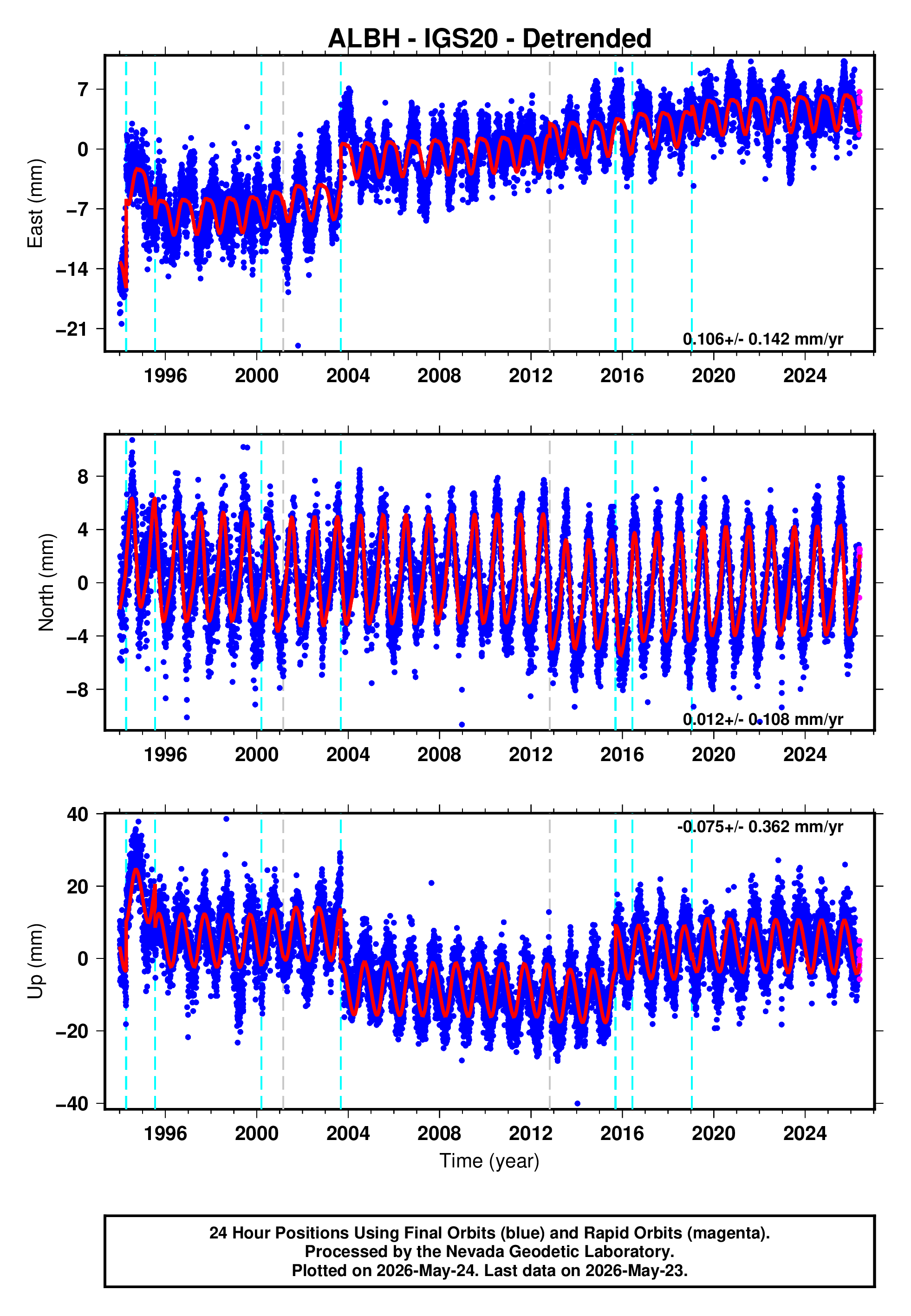

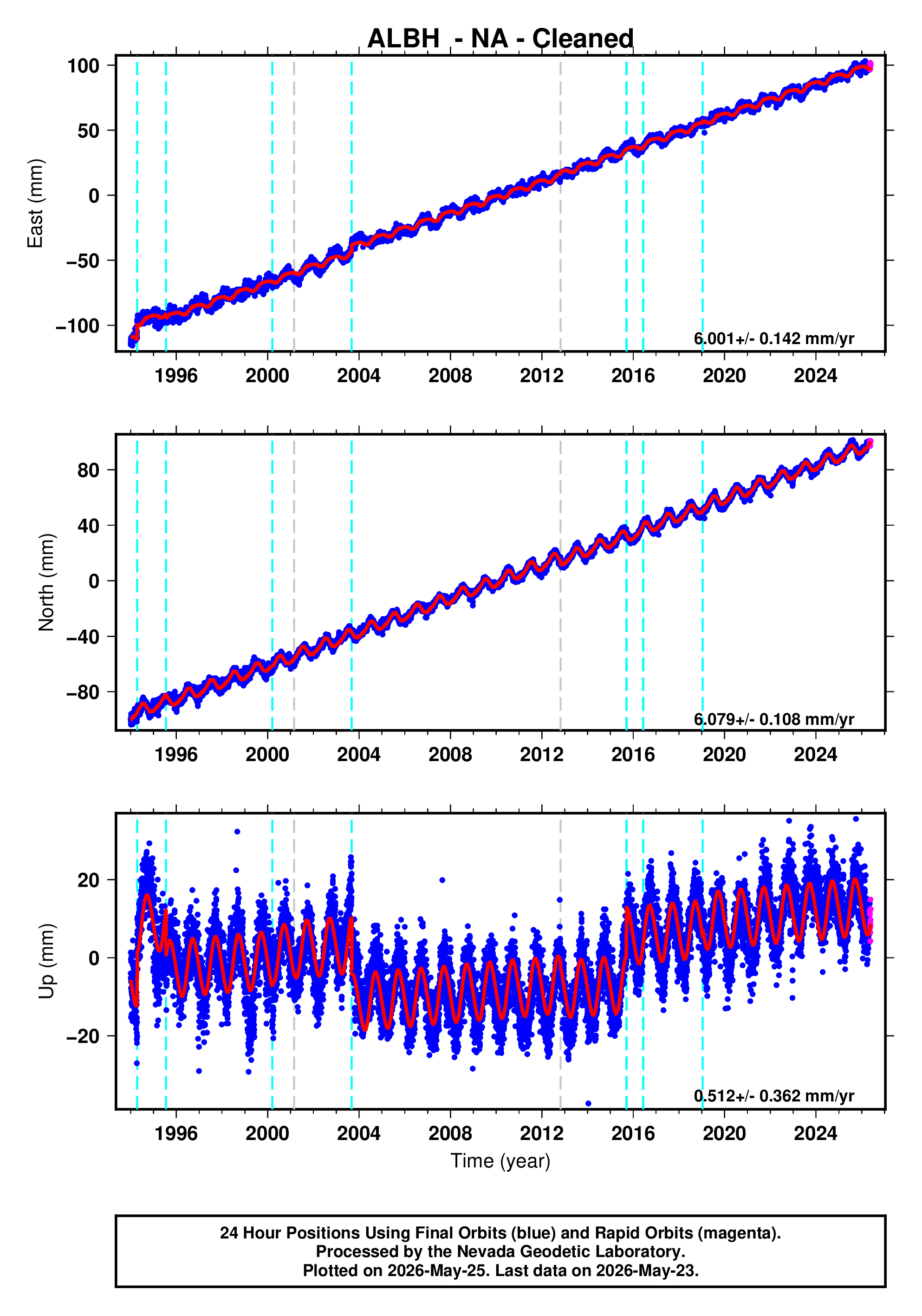

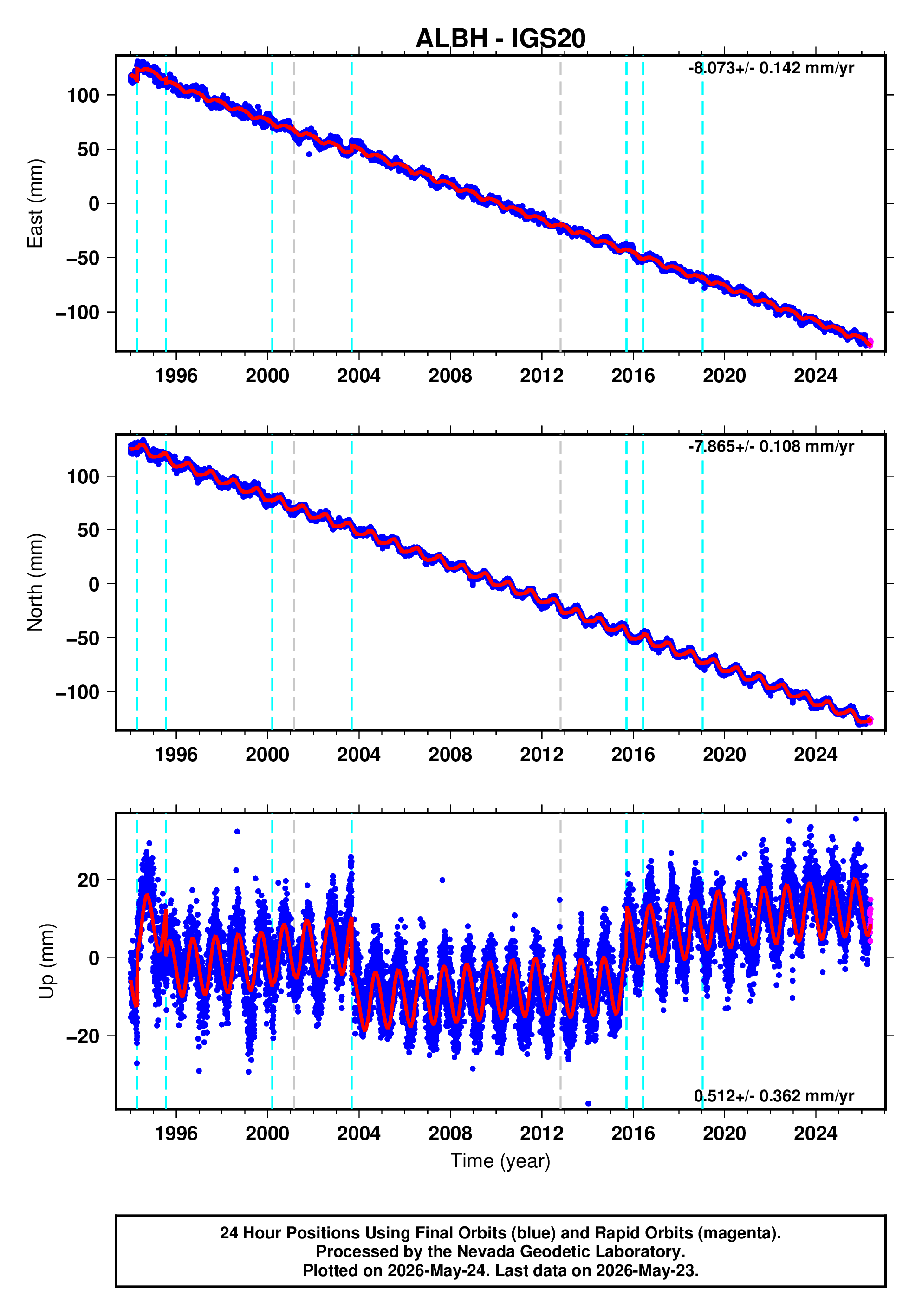

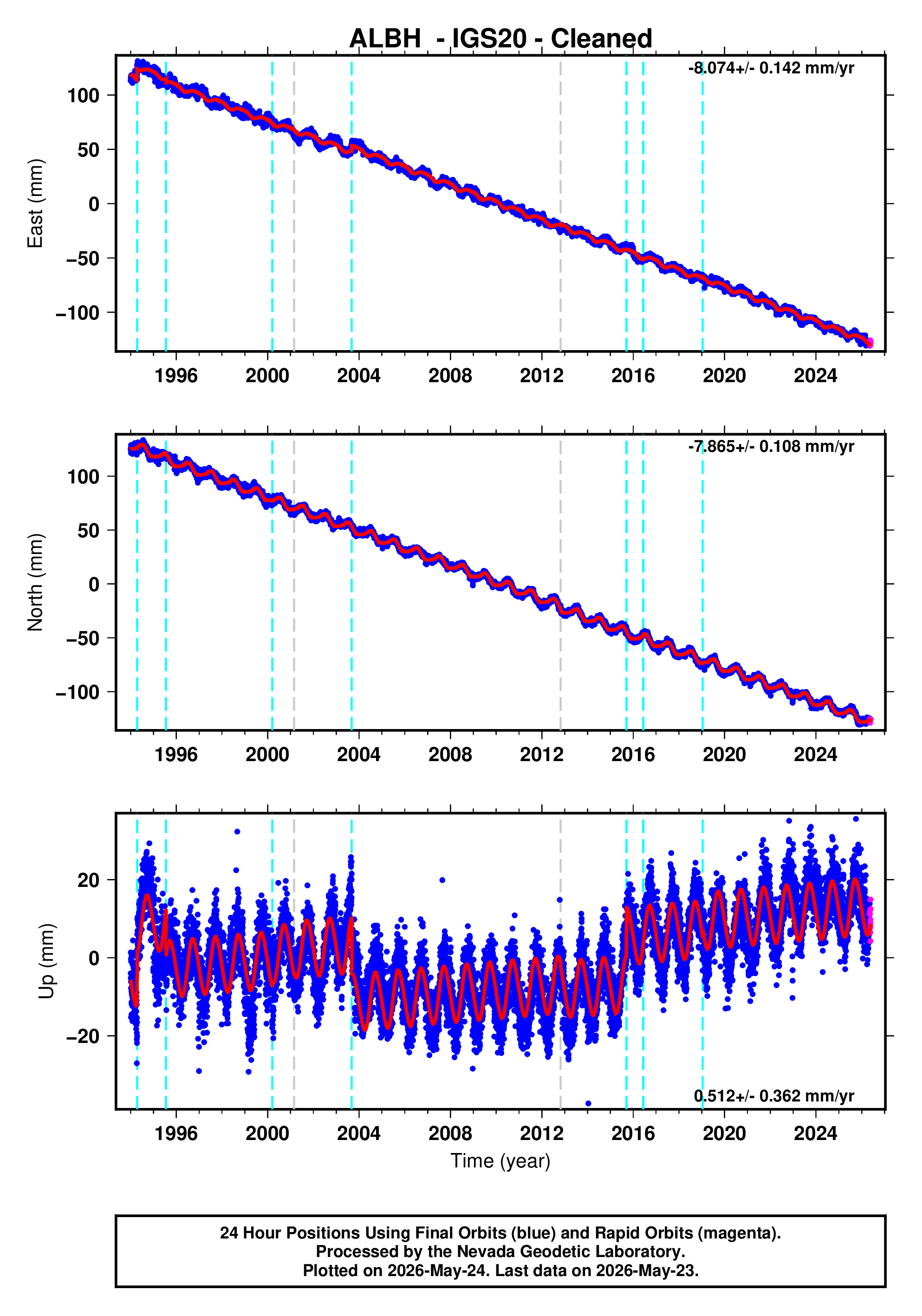

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
ALBH94APR14 Antenna_Code_Changed - -
ALBH95JUL21 Elevation_Cutoff_Changed - -
ALBH00MAR15 Receiver_Make_and_Model_Changed - -
ALBH03SEP05 Radome_Code_Changed - -
ALBH15SEP15 Antenna_Code_Changed - -
ALBH15SEP15 Receiver_Make_and_Model_Changed - -
ALBH16JUN09 Elevation_Cutoff_Changed - -
ALBH16JUN09 Receiver_Make_and_Model_Changed - -
ALBH19JAN16 Receiver_Make_and_Model_Changed - -
ALBH01FEB28 uw10530748 6.8 149.2
ALBH12OCT28 usp000juhz 7.8 779.4
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
